Technical details
Warranty period: 6 year(s)
Design
Material: Aluminium
Number of fans: 3 fan(s)
Radiator material: Aluminum
Display size (HxV): 85 x 79.2 mm
Fan connector: 7-pin
Illumination colour: Multi
Product colour: Black
Illumination LED: Yes
Power
Fan voltage: 12 V
Pump power consumption: 3.84 W
Fan power consumption: 6 W
Fan current: 0.5 A
Pump voltage: 12 V
Safety current: 0.8 Ah
Weight & dimensions
Radiator width: 11.9 cm
Tube length: 40 cm
Radiator height: 2.7 cm
Package weight: 2.9 kg
Pump height: 3.9 cm
Package width: 211 mm
Weight: 1.75 kg
Radiator depth: 39.4 cm
Pump depth: 9.25 cm
Package height: 136 mm
Package depth: 410 mm
Fan dimensions (W x D x H): 122 x 361 x 26.5 mm
Pump width: 8.7 cm
Performance
Pulse-width modulation (PWM) support: Yes
Maximum airflow: 190 cfm
Fan static pressure: 3.61 mmH2O
Supported processor sockets: LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1700, Socket AM4, LGA 1200 (Socket H5), LGA 1151 (Socket H4), LGA 1150 (Socket H3), Socket AM5, LGA 1851
Pump connector: 3-pin + 4-pin
Airflow: 322.8 m³/h
Bearing type: Loop Dynamic Bearing (LDB)

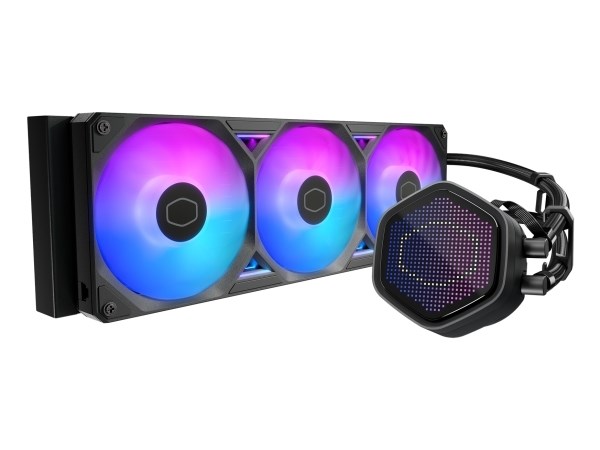

Type: Liquid cooling kit
Fan speed (min): 690 RPM
Pump noise level: 25 dB
Fan diameter: 12 cm
Pump motor speed: 3400 RPM
Fan speed (max): 2500 RPM
Suitable location: Processor
Fan noise level (max): 38.5 dB
Fan's mean time to failure (MTTF): 160000 h
Pump's mean time to failure (MTTF): 210000 h
Quantity per pack: 1 pc(s)
Packaging content
Package type: Box
Mounting kit: Yes
Other features
Built-in display: Yes
