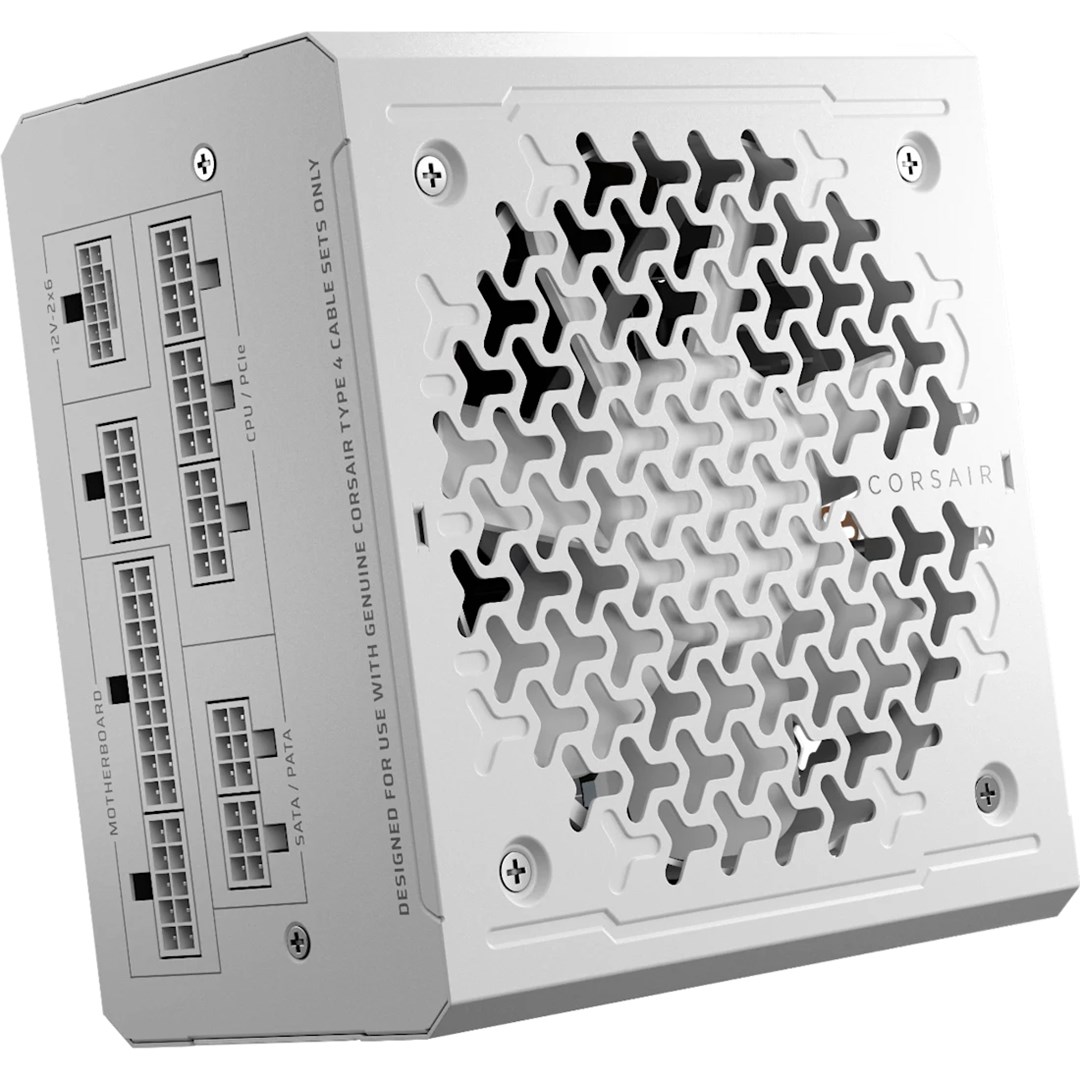

Design Cooling type: Active Product colour: White Illumination: No On/off switch: Yes Fan location: Front Fan diameter: 12 cm Number of fans: 1 fan(s)
Power Max output current (+5Vsb): 3 A Max output current (+5V): 20 A Input current: 12 - 6 A AC input voltage: 100 - 240 V AC input frequency: 47 - 63 Hz Combined power (+12V): 1000 W Max output current (+3.3V): 20 A Max output current (+12V): 83.3 A Combined power (+5V): 150 W Combined power (+5Vsb): 15 W Total power: 1000 W Combined power (+3.3V): 150 W
Weight & dimensions Weight: 3.23 kg Width: 150 mm Height: 140 mm Depth: 86 mm
Performance 80 PLUS certification: 80 PLUS Gold Mean time between failures (MTBF): 100000 h Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.1
Ports & interfaces Number of SATA power connectors: 6 Motherboard power connector: 24-pin ATX EPS power connector (4+4 pin): Yes Number of PATA power connectors: 2 Number of EPS connectors: 2 PCI Express power connectors (12+4 pin): 1 Cabling type: Fully-Modular PCI Express power connectors (6+2 pin): 2
