Technical details
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE
Warranty period: 3 year(s)
Design
Product colour: Black
Illumination LED: Yes
Fan connector: 4-pin
Radiator material: Aluminum
Number of fans: 2 fan(s)
Illumination colour: Multi
Water block material: Copper
LED connector type: 3-pin
Power
Fan current: 0.3 A
Pump power consumption: 4.2 W
Fan voltage: 12 V
Pump current: 350 mA
Pump voltage: 12 V
LED voltage: 5 V
Fan power consumption: 3.6 W
LED power consumption (fan): 3 W
Weight & dimensions
Package height: 143 mm
Tube length: 40 cm
Height: 27 mm
Package weight: 1.85 kg
Depth: 121 mm
Package depth: 350 mm
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Weight: 618 g
Package width: 211.5 mm
Width: 272 mm
Waterblock height: 5.07 cm
Radiator depth: 12.1 cm
Radiator height: 2.7 cm
Waterblock depth: 7.33 cm
Radiator width: 27.2 cm
Waterblock width: 8.29 cm
Performance
Supported processor sockets: Socket AM2, Socket FM2, LGA 1151 (Socket H4), LGA 1155 (Socket H2), Socket AM3, LGA 1851, Socket FM1, Socket AM4, LGA 1156 (Socket H), LGA 1700, LGA 1366 (Socket B), LGA 1200 (Socket H5), LGA 1150 (Socket H3), Socket AM5
Maximum airflow: 62.53 cfm
Noise level (high speed): 33.5 dB
Pump motor speed: 2700 RPM
Quantity per pack: 1 pc(s)
Fan speed (min): 500 RPM

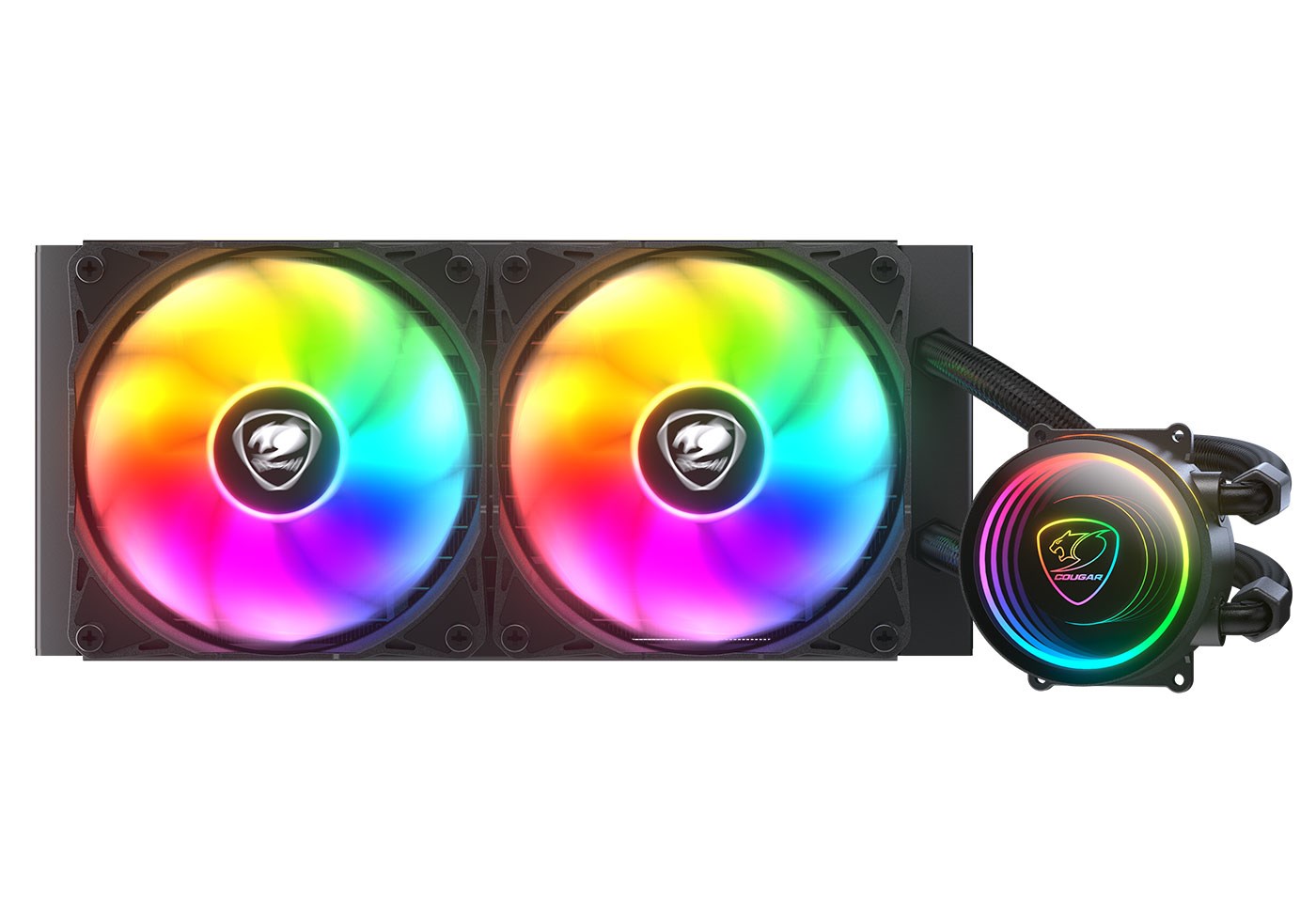

Type: All-in-one liquid cooler
Fan speed (max): 2200 RPM
Maximum air pressure: 2.4 mmH2O
Suitable location: Computer case
Pump connector: 3-pin
Packaging content
Mounting kit: Yes
Screws included: Yes
CPU bracket(s): Yes
Thermal pad included: Yes
Other features
Country of origin: China
