Technical details
Warranty period: 3 year(s)
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE
Design
LED connector type: 3-pin
Number of fans: 3 fan(s)
Illumination colour: Multi
Illumination LED: Yes
Fan connector: 4-pin
Product colour: White
Water block material: Copper
Radiator material: Aluminum
Power
LED power consumption (fan): 3 W
Fan voltage: 12 V
Pump voltage: 12 V
Pump current: 350 mA
Pump power consumption: 4.2 W
Fan current: 0.3 A
LED voltage: 5 V
Fan power consumption: 3.6 W
Weight & dimensions
Package width: 195.5 mm
Height: 27 mm
Package weight: 2.22 kg
Weight: 770 g
Width: 392 mm
Package height: 143 mm
Depth: 121 mm
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Package depth: 465 mm
Waterblock height: 5.07 cm
Radiator height: 2.7 cm
Radiator depth: 12.1 cm
Radiator width: 39.2 cm
Tube length: 40 cm
Waterblock depth: 7.33 cm
Waterblock width: 8.29 cm
Performance
Supported processor sockets: LGA 1151 (Socket H4), LGA 1150 (Socket H3), Socket AM5, Socket FM1, Socket AM4, LGA 1156 (Socket H), LGA 1700, Socket AM2, LGA 1200 (Socket H5), LGA 1155 (Socket H2), Socket AM3, Socket FM2, LGA 1851, LGA 1366 (Socket B)
Rotational speed (min): 500 RPM
Maximum air pressure: 2.4 mmH2O
Rotational speed (max): 2200 RPM
Maximum airflow: 62.53 cfm
Fan diameter: 12 cm

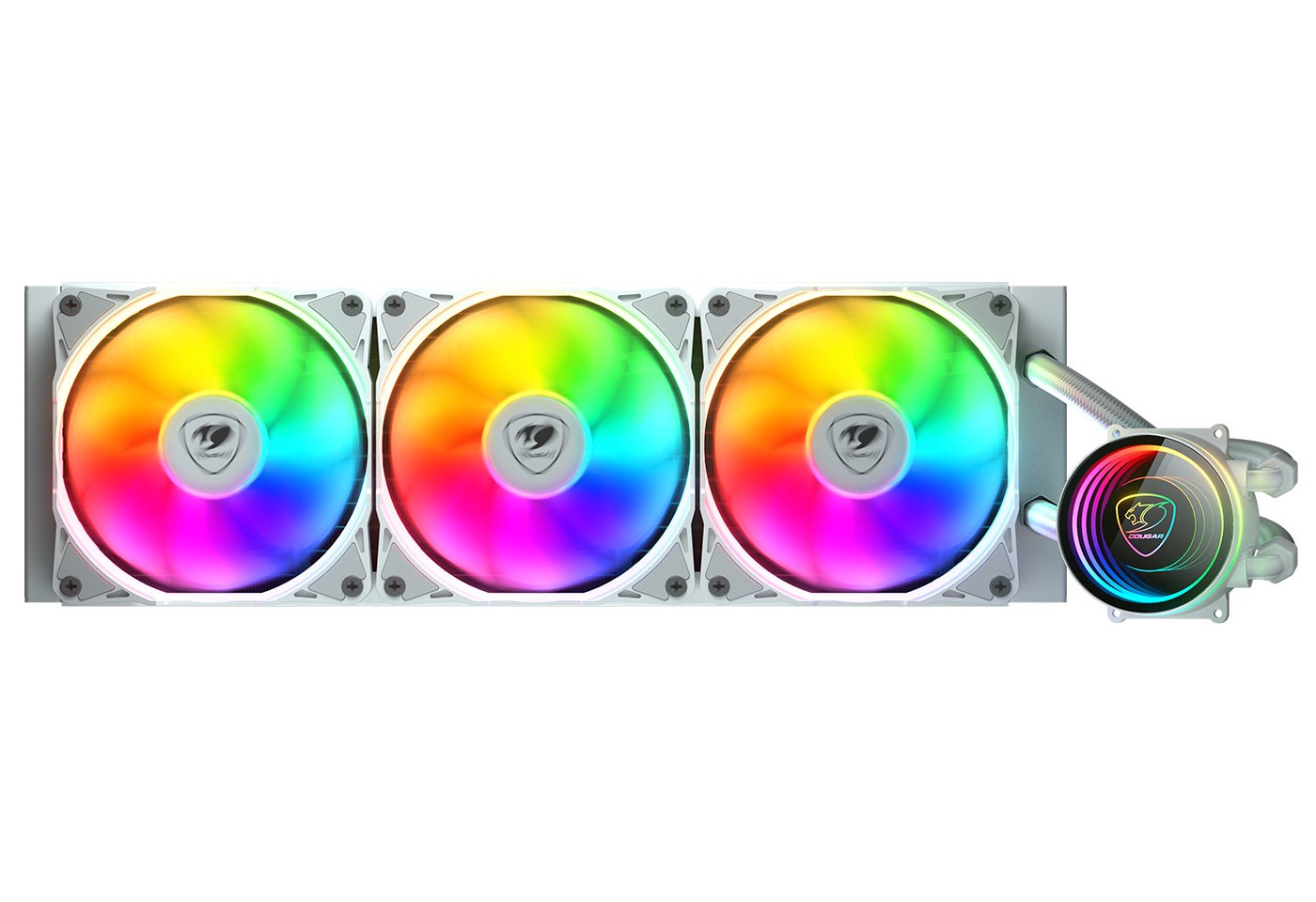

Type: All-in-one liquid cooler
Fan noise level (max): 33.5 dB
Pump motor speed: 2700 RPM
Suitable location: Processor
Pump connector: 3-pin
Packaging content
Mounting kit: Yes
Screws included: Yes
Thermal pad included: Yes
CPU bracket(s): Yes
Other features
Country of origin: China
