Technical details
Warranty period: 5 year(s)
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE
Design
LED connector type: 3-pin
Product colour: Black
Number of fan blades: 9
Illumination colour: Multi
Number of fans: 3 fan(s)
Base plate material: Copper
Fan connector: 4-pin
Water block material: Copper
Illumination LED: Yes
Radiator material: Aluminum
Material: Metal, Cooper
Power
Pump voltage: 12 V
Fan power consumption: 2.76 W
Pump power consumption: 4.2 W
LED voltage: 5 V
Rated voltage: 12 V
Fan current: 0.23 A
Fan voltage: 12 V
Rated current: 0.35 A
Weight & dimensions
Package weight: 2.54 kg
Weight: 1.02 kg
Tube length: 40 cm
Package width: 195.5 mm
Width: 394 mm
Radiator width: 27.2 cm
Height: 27 mm
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Waterblock depth: 7.15 cm
Depth: 120 mm
Package depth: 465 mm
Package height: 143 mm
Waterblock width: 7.15 cm
Radiator height: 2.7 cm
Radiator depth: 12.1 cm
Waterblock height: 4.98 cm
Performance
Supported processor sockets: LGA 2011 (Socket R), Socket FM2, LGA 1366 (Socket B), Socket AM2, Socket AM2+, Socket AM3, Socket AM5, LGA 1700, Socket FM1, Socket AM3+, Socket AM4, Socket TR4, LGA 1200 (Socket H5), LGA 2066

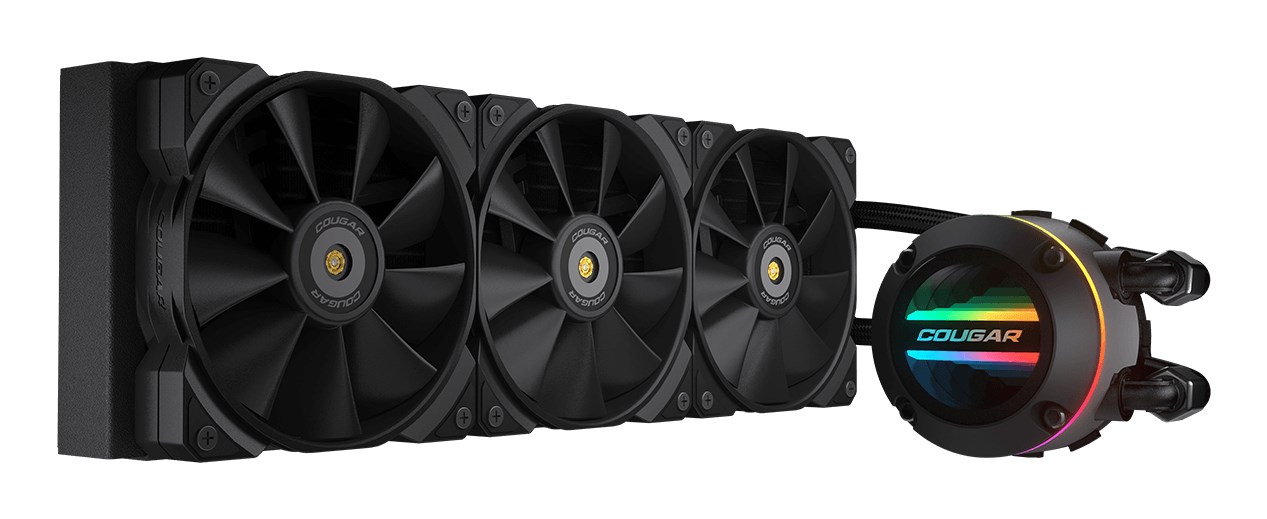

Type: Liquid cooling kit
Pump motor speed (min): 200 RPM
Pulse-width modulation (PWM) support: Yes
Fan noise level (max): 34.5 dB
Fan diameter: 12 cm
Pump motor speed (max): 3200 RPM
Fan speed (max): 2000 RPM
Quantity per pack: 1 pc(s)
Pump connector: 3-pin
Fan speed (min): 600 RPM
Maximum airflow: 82.48 cfm
Suitable location: Processor
Maximum air pressure: 4.24 mmH2O
Packaging content
Package type: Box
Mounting kit: Yes
Installation instruction: Yes
Cables included: Fan
CPU bracket(s): Yes
RGB controller included: Yes
Screws included: Yes
Thermal pad included: Yes
Other features
Country of origin: China
