Design
Product colour: Black
Display type: IPS
Illumination colour: Multi
Fan connector: 4-pin
Illumination LED: Yes
Radiator material: Aluminum
Base plate material: Copper
Number of fans: 3 fan(s)
LED connector type: 3-pin
Power
Pump current: 200 mA
Pump voltage: 12 DC
Rated voltage: 12 V
LED voltage: 5 V
Pump power consumption: 2.3 W
Fan current: 0.85 A
Fan power consumption: 10.2 W
LED power consumption (fan): 8 W
Weight & dimensions
Radiator height: 2.7 cm
Radiator depth: 12.1 cm
Package height: 155 mm
Waterblock width: 8.8 cm
Tube length: 39 cm
Package width: 457 mm
Waterblock height: 6.7 cm
Radiator width: 39.2 cm
Package weight: 2.17 kg
Fan dimensions (W x D x H): 363.3 x 125 x 25 mm
Waterblock depth: 8.3 cm
Package depth: 228 mm
Performance
Pump motor speed: 2700 RPM
Supported processor sockets: LGA 1155 (Socket H2), Socket AM3, LGA 1151 (Socket H4), Socket AM4, LGA 1366 (Socket B), LGA 1156 (Socket H), LGA 1700, Socket FM1, LGA 1150 (Socket H3), Socket AM5, LGA 1200 (Socket H5), LGA 1851, Socket FM2, Socket AM2, LGA 1356 (Socket B2)
Rotational speed (max): 2500 RPM
Maximum airflow: 78.2 cfm
Maximum air pressure: 5.4 mmH2O
Rotational speed (min): 700 RPM
Suitable location: Processor
Pump connector: 3-pin
Noise level (high speed): 38 dB
Fan diameter: 12 cm

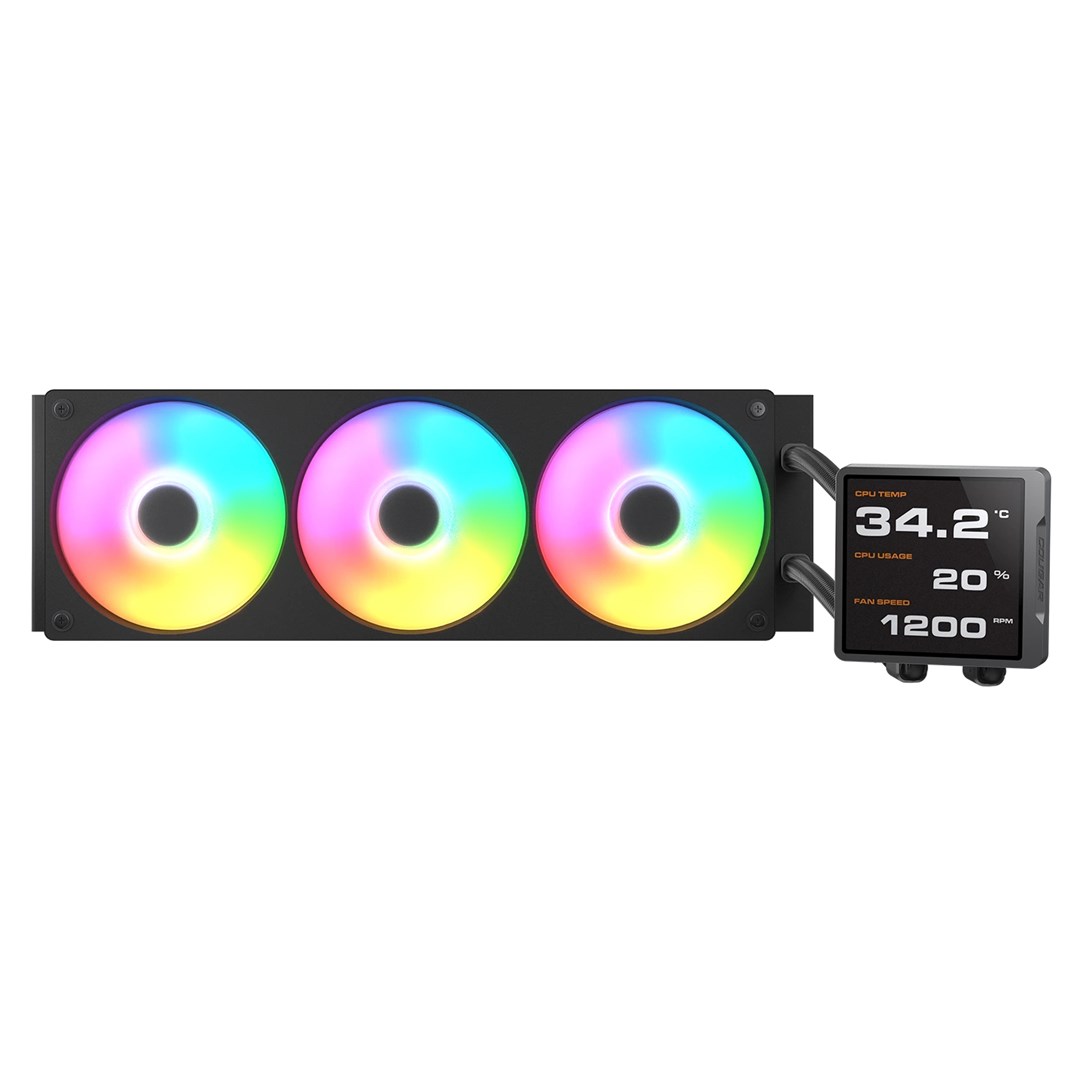

Type: All-in-one liquid cooler
Pulse-width modulation (PWM) support: Yes
