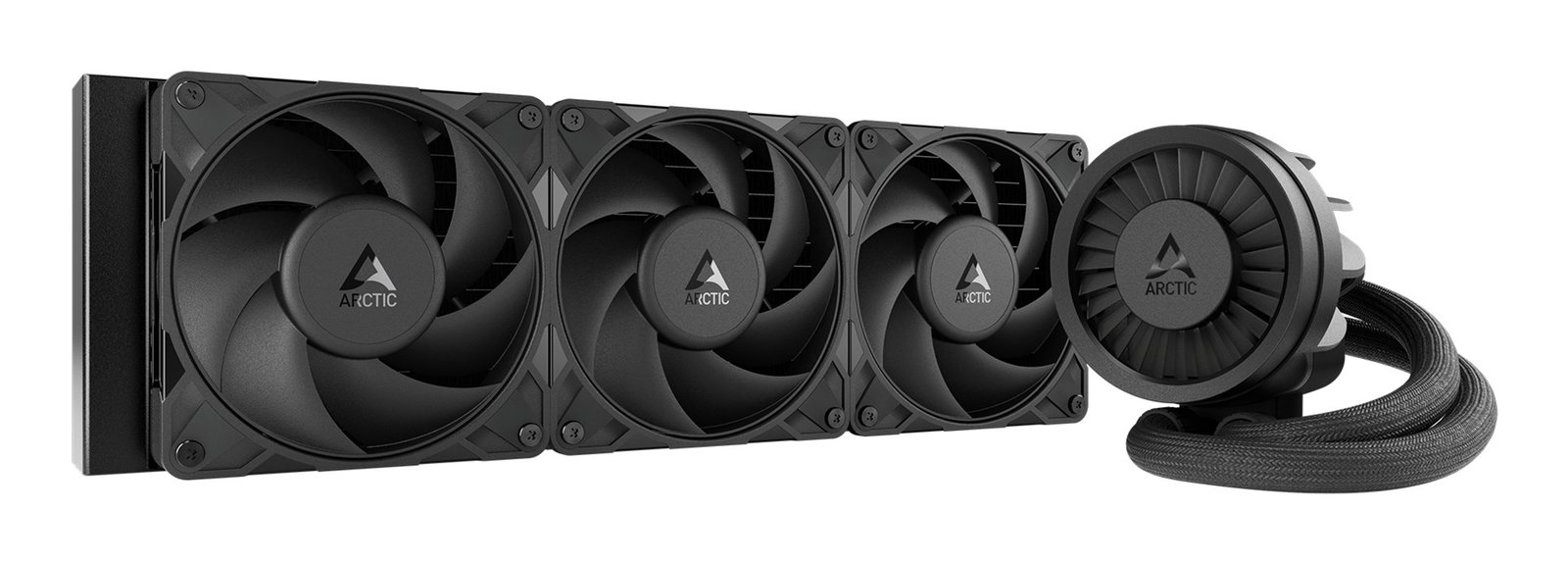

Design Product colour: Black Base plate material: Copper Fan connector: 4-pin Radiator material: Aluminum Number of fans: 3 fan(s)
Power Fan current: 0.33 A Pump current: 350 mA Fan voltage: 12 V Pump voltage: 12 V
Weight & dimensions Package height: 142 mm Package width: 167 mm Width: 120 mm Package weight: 2.46 kg Weight: 2.02 kg Package depth: 414 mm Depth: 398 mm Tube diameter: 1.24 cm Tube length: 45 cm Radiator width: 12 cm Radiator height: 3.8 cm Height: 66 mm Radiator depth: 39.8 cm Fan dimensions (W x D x H): 120 x 120 x 25 mm Tube inner diameter: 6 mm VRM fan diameter: 9.1 cm
Performance Supported processor sockets: Socket AM5, LGA 1700, Intel LGA1851, Socket AM4 Operating temperature (T-T): 0 - 40 °C Quantity per pack: 1 pc(s) Type: Liquid cooling kit Airflow: 131 m³/h Fan speed (min): 600 RPM Pump motor speed (min): 800 RPM Pulse-width modulation (PWM) support: Yes Suitable location: Processor Fan diameter: 12 cm Maximum airflow: 77 cfm Bearing type: Fluid Dynamic Bearing (FDB) Fan static pressure: 6.9 mmH2O Fan speed (max): 3000 RPM Pump motor speed (max): 2800 RPM VRM fan speed (max): 2500 RPM VRM fan speed (min): 400 RPM
