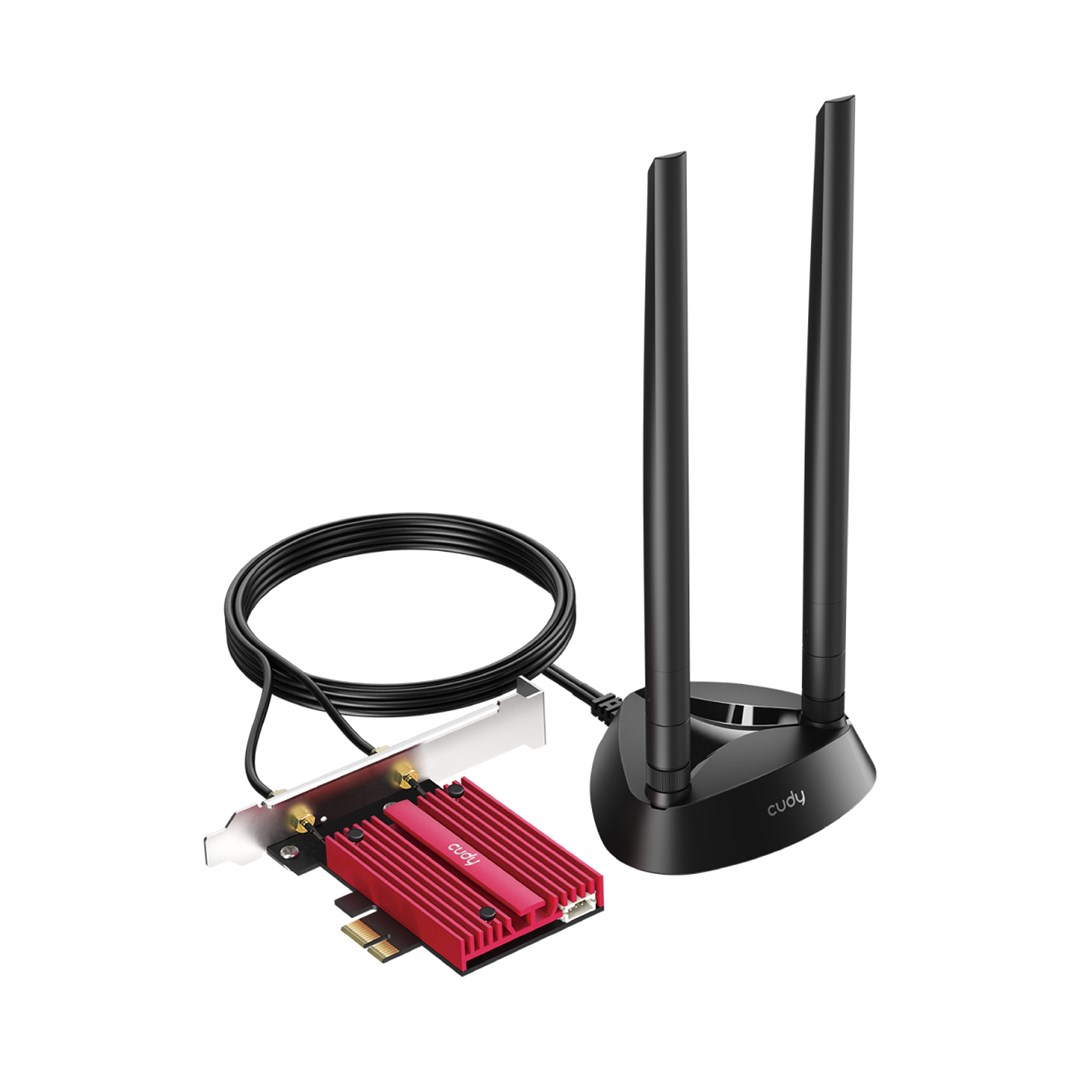

Cudy WE9300S network card Internal WLAN /Bluetooth 5765 Mbit /s

Technical details
Compliance certificates: CE, Federal Communications Commission (FCC)

Design
Component for: PC
Antenna gain level (max): 4.21 dBi
Antenna: Yes
Antenna type: 2x2
Internal: Yes
Antenna design: External

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 70 °C
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions
Width: 98 mm
Weight: 120.7 g
Depth: 65 mm
Height: 15.7 mm

Network
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Bluetooth: Yes
Bluetooth version: 5.4
Wi-Fi: Yes
Maximum data transfer rate: 5765 Mbit/s
Security algorithms: WPA2, WPA, WPA-PSK, WPA3

System requirements
Windows operating systems supported: Windows 11

Packaging content
Mounting brackets included: Yes
Quick installation guide: Yes

Ports & interfaces
Interface: WLAN / Bluetooth
Host interface: PCI Express
Connectivity technology: Wireless
