Design
LED indicators: Activity, Power
Product colour: White

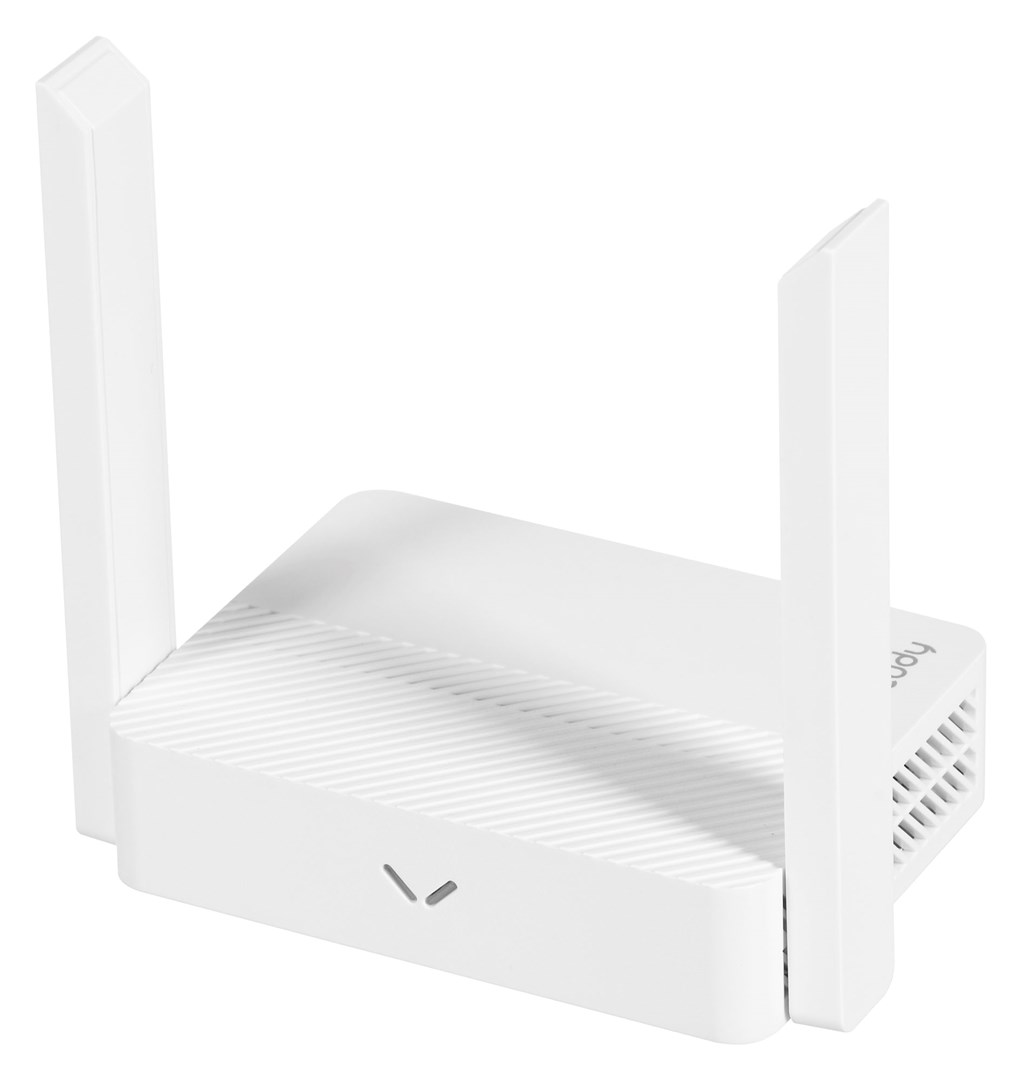

Product type: Tabletop router
Wall mountable: Yes
On/off switch: Yes
Power
Output voltage: 5 V
Output current: 1 A
Power source type: DC
Security
IP address filtering: Yes
Security algorithms: WPA-PSK, WEP, WPA2, WPA, WPA2-PSK
MAC address filtering: Yes
Firewall: Yes
DoS attack prevention: Yes
Firewall security: DoS, SPI Firewall；IP Address Filter/MAC Address Filter/Domain Filter；IP and MAC Address Binding
DMZ support: Yes
Stateful Packet Inspection (SPI): Yes
Guest access: Yes
Parental control: Yes
Schedule access: Yes
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 70 °C
Management features
Web-based management: Yes
Quality of Service (QoS) support: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
Reset button: Yes
Remote management: Yes
Bandwidth control: Yes
Weight & dimensions
Height: 64 mm
Depth: 169 mm
Width: 259 mm
Receiver sensitivity: 5GHz 11a 6Mbps : -96dBm, 11a 54Mbps: -79dBm 11ac HT20: -71dBm, 11ac HT40: -66dBm, 11ac HT80: -63dBm, 11n HT20: -72dBm, 11n HT40: -71dBm；2.4GHz 11g 54M: -77dBm 11n HT20: -74dBm, 11n HT40: -72dBm
Network
Ethernet LAN data rates: 100, 10
Ethernet LAN: Yes
Ethernet LAN interface type: Fast Ethernet
Port triggering: Yes
VPN Passthrough: Yes
Number of guest networks (5 GHz): 1
Number of guest networks (2.4 GHz): 1
Port forwarding: Yes
Packaging data
Number of products included: 1 pc(s)
Package type: Box
Packaging content
AC adapter included: Yes
Cables included: LAN (RJ-45)
Quick installation guide: Yes
Wireless LAN features
WLAN data transfer rate (max): 300 Mbit/s
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Wi-Fi standards: 802.11g, 802.11b, Wi-Fi 4 (802.11n)
Wi-Fi band: Single-band (2.4 GHz)
Protocols
DHCP client: Yes
DHCP server: Yes
Universal Plug and Play (UPnP): Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB port: No
DC-in jack: Yes
Antenna
Antenna gain level (max): 5 dBi
Antennas quantity: 2
Antenna design: External
WAN connection
SIM card slot: No
3G/4G USB modem compatibility: No
WAN connection type: RJ-45
DSL WAN: No
Ethernet WAN: Yes
Mobile network
4G: No
3G: No
5G: No
Safety warning
Warnings: The product may emit radio waves that may interfere with other electronic devices., Avoid contact with liquids as this may cause electric shock., Do not open the appliance housing - risk of electric shock.
