Design

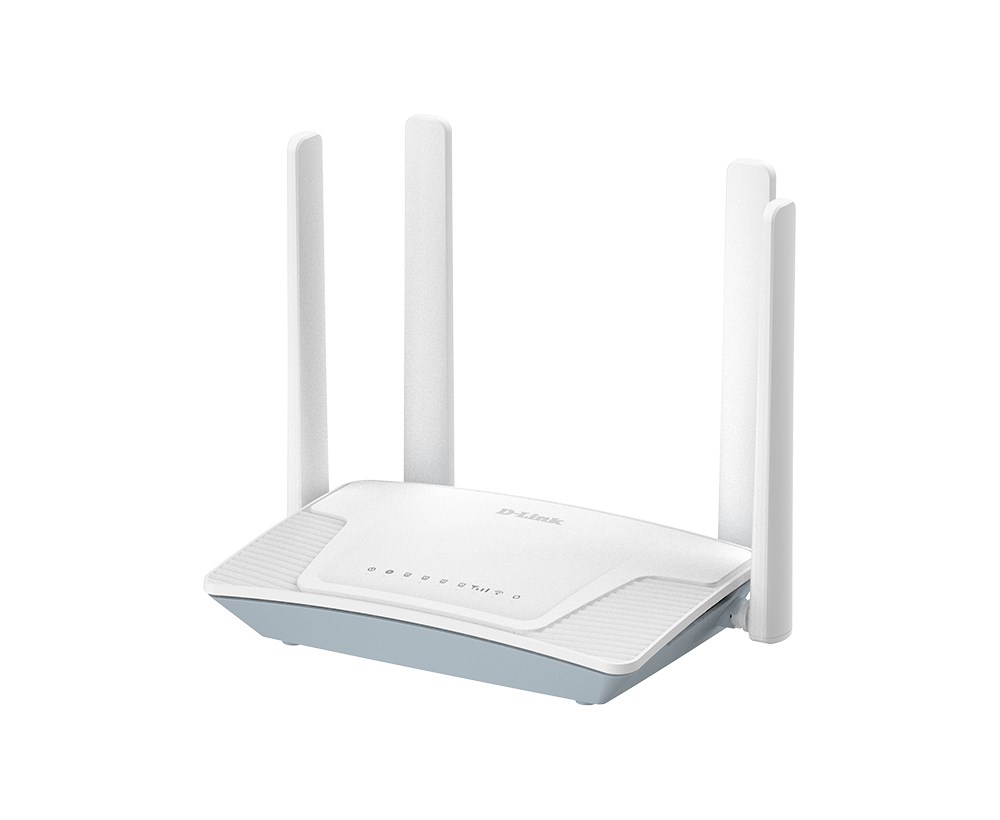

Product type: Tabletop router
LED indicators: LTE, Power, Status
Product colour: White
Power
Output voltage: 12 V
Power source type: DC
Output current: 1 A
Security
DMZ support: Yes
Firewall: Yes
Security algorithms: WPA-PSK, WPA3-PSK, WPA2-PSK
Operational conditions
Operating relative humidity (H-H): 10 - 95%
Operating temperature (T-T): -10 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 0 - 95%
Management features
WPS push button: Yes
Web-based management: Yes
Reset button: Yes
Weight & dimensions
Width: 222 mm
Height: 42 mm
Depth: 147 mm
Weight: 240 g
Network
Port forwarding: Yes
Ethernet LAN: Yes
Cabling technology: 10/100Base-T(X)
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10, 100
Packaging data
Package type: Box
Packaging content
Antenna included: Yes
Quick start guide: Yes
Wireless LAN features
WLAN data transfer rate (first band): 300 Mbit/s
Wi-Fi standards: 802.11a, 802.11g, 802.11b, Wi-Fi 4 (802.11n)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 300 Mbit/s
Wi-Fi band: Single-band (2.4 GHz)
Certificates
Compliance certificates: RoHS, CE, NCC, RCM
Ports & interfaces
USB port: No
Ethernet LAN (RJ-45) ports: 4
DC-in jack: Yes
Antenna
Antenna design: External
Antennas quantity: 3
WAN connection
SIM card slot: Yes
Ethernet WAN: Yes
WAN connection type: RJ-45
DSL WAN: No
Mobile network
GSM bands supported: 900, 1800
SIM card type: NanoSIM
Mobile network generation: 4G
2G standards: GSM
4G standard: LTE
Dual SIM support: No
3G standards: WCDMA
