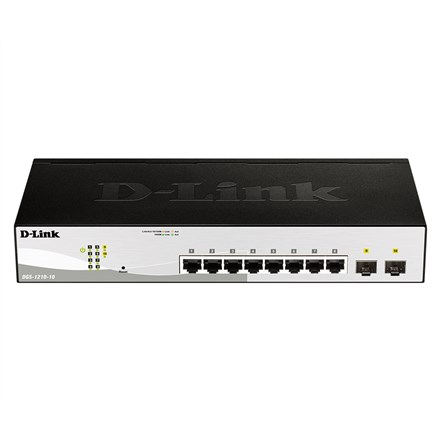

D-LINK-DGS-1210-10 /E 10-PORT GIGABIT SWITCH 2 SFP

Technical details
Products per shipping (inner) case: 5 pc(s)
Pallet gross length: 110 cm
Shipping (inner) case length: 38.2 cm
Shipping (inner) case height: 31.7 cm
Products per pallet (air): 180 pc(s)
Pallet gross width: 120 cm
Shipping (inner) case net weight: 10.4 kg
Pallet gross weight (sea): 625.9 kg
Shipping (inner) case width: 34.6 cm
Master (outer) cases per pallet (sea): 54 pc(s)
Shipping (inner) case gross weight: 11.1 kg
Pallet height (sea): 2.04 m
Pallet gross weight (air): 425.5 kg
Pallet height (air): 140.3 cm
Products per pallet (sea): 270 pc(s)
Master (outer) cases per pallet (air): 36 pc(s)

Design
Stackable: Yes
Form factor: 1U
Rack mounting: Yes
Product colour: Black, Grey

Power
AC input voltage: 100 - 240 V

Security
Loop protection: Yes
Access Control List (ACL): Yes
IGMP snooping: Yes
MAC address filtering: Yes

Operational conditions
Heat dissipation: 373.96 BTU/h
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C

Management features
Switch layer: L2
Configuring Location Settings (CLI): Yes
ARP inspection: Yes
Switch type: Managed
Quality of Service (QoS) support: Yes
MIB support: Y
Web-based management: Yes

Weight & dimensions
Height: 44 mm
Width: 280 mm
Depth: 126 mm
Weight: 980 g

Network
Auto-negotiation: Yes
Full duplex: Yes
Link aggregation: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Port mirroring: Yes
10G support: No
Flow control support: Yes
Head-of-line (HOL) blocking: Yes
Networking standards: IEEE 802.3x, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab

Performance
Mean time between failures (MTBF): 205249 h

Packaging data
Package height: 70 mm
Package width: 286 mm
Package depth: 325 mm
Package weight: 2.08 kg

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Power connector: DC-in jack
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Switching capacity: 20 Gbit/s
MAC address table: 8000 entries
Packet buffer memory: 0.512 MB
Store-and-forward: Yes
Jumbo frames support: Yes
Forwarding rate: 14.88 Mpps
Jumbo frames: 9216

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Multicast features
Multicast support: Yes
