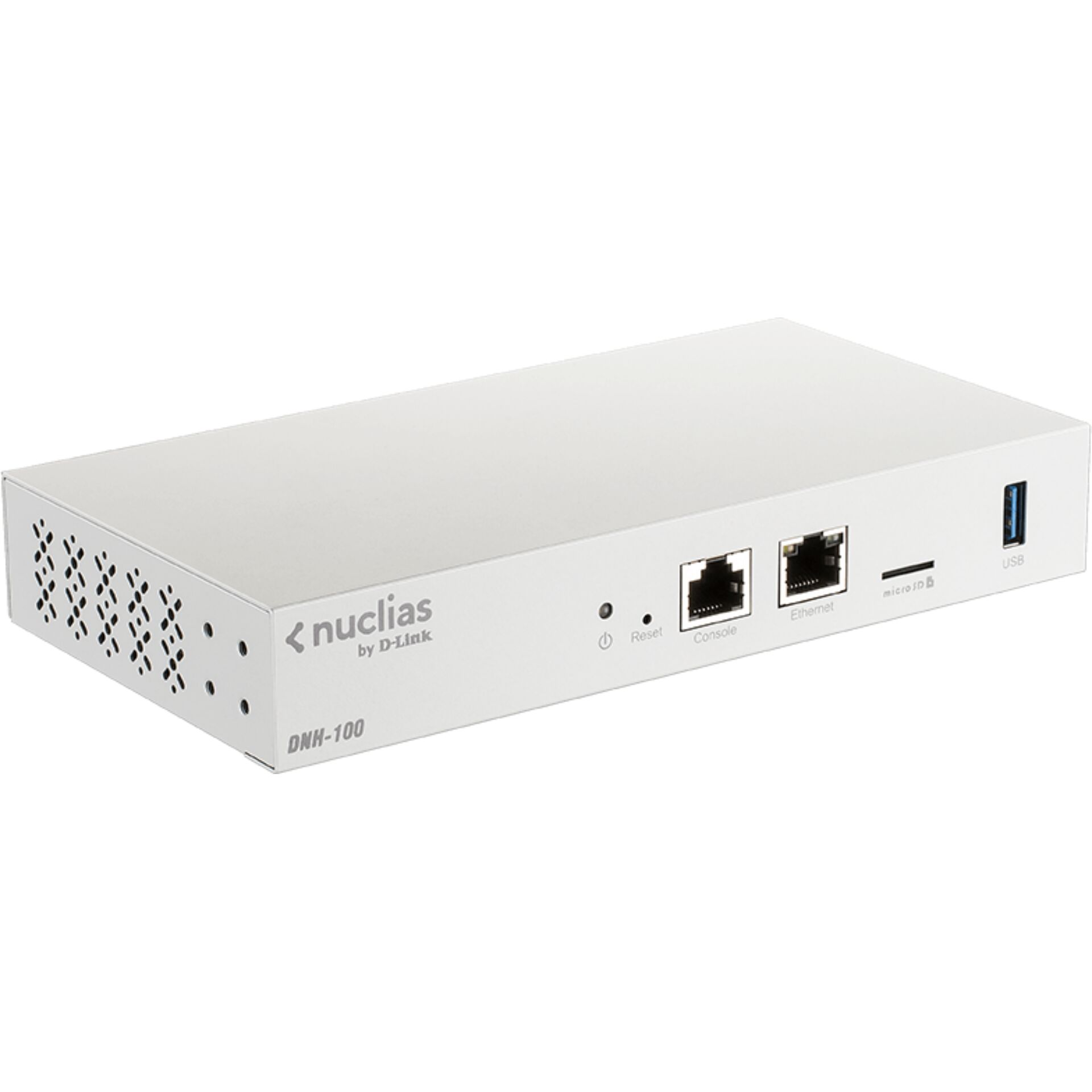

D-Link DNH-100 Nuclias Connect Hub

D-Link DNH-100 Nuclias Connect hub

Stand-alone Nuclias Connect hardware controller for central AP management.

Nuclias Connect Hub, designed for small to medium-sized businesses and larger enterprise network environments, comes with pre-installed Nuclias Connect software for centralized network management. It supports almost all D-Link access points (DAP-xxxx) and is compatible with any Nuclias Connect access point. To ensure compatibility, the devices must have the latest firmware.
The hub can manage up to 100 devices and supports the DGS-1210 series of smart managed switches, as well as almost all D-Link access points (DAP-xxxx). With the included rack-mount kit, the hub can be quickly and safely installed in a rack.

The Hub enables central monitoring and management of all access points in your network. As it integrates seamlessly into network environments and comes pre-installed with the Nuclias Connect software, the DNH-100 Hub is an efficient dedicated hardware solution. You not only save the installation of Nuclias Connect, but also the purchase of an additional compatible third-party server.

Central administration
Access point management - local and multi-site, accessible via the free Nuclias Connect app or a standard browser

Flexible installation
Rack-mountable, small form factor for easy installation, integrated hardware controller and standalone application server in one device

Features:

• Pre-installed free Nuclias Connect software
• 1 x Gigabit port, 1 x console port, 1 x USB 3.0, 1 x microSD
• Management of up to 100 APs / Smart Managed Switches (DGS-1210 series from HW rev.F1 / G1)
• Free Nuclias Connect app
• License-free central administration
• Set for rack mounting included
• Remote and batch configurations
• Real-time traffic reports and analytics
• Searchable event and change log
• Backward compatible to a range of DAPs
• Authentication via customizable captive portal, 802.1x and RADIUS server, POP3, LDAP, AD
• Intuitive interface
• Payment system integration (Paypal) and front-desk ticket management
• No additional server required, easily scale your network with more hubs
• LEDs: Power indicator / status
• Interfaces: 1x Gigabit LAN, 1x USB 3.0 (with power supply 5V 1A), 1x microSD slot, 1x RJ45 console port
• Standards: IEEE 802.3u/ab / IEEE 802.3x flow control
• Power supply: internal power supply
• Max power consumption: 6.5 W
• MTBF: about 30000 h
• Dimensions: 190 x 100 x 31 mm
• Weight: 529 g
• Colour: white
