Design

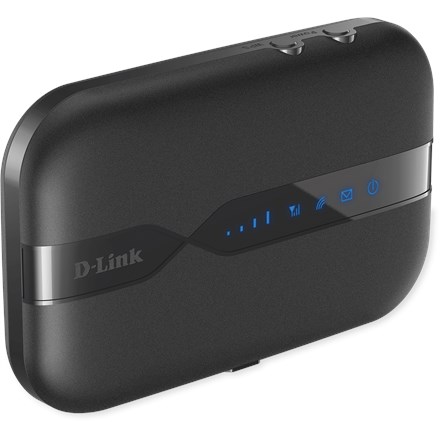

Product type: Portable router
LED indicators: Activity, Status
Product colour: Black
Power
Battery capacity: 2000 mAh
Battery technology: Lithium-Ion (Li-Ion)
Security
Firewall: Yes
Security algorithms: AES, WPA, TKIP, WPA2-PSK
Network address translation (NAT): Yes
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -20 - 70 °C
Management features
WPS push button: Yes
Weight & dimensions
Weight: 95 g
Height: 16.5 mm
Depth: 60 mm
Width: 97 mm
Network
Ethernet LAN interface type: Not available
Ethernet LAN: No
Packaging data
Package weight: 238 g
Package height: 46 mm
Package width: 105 mm
Package depth: 138 mm
Wireless LAN features
Wi-Fi standards: 802.11g, 802.11b, Wi-Fi 4 (802.11n)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 150 Mbit/s
Protocols
Universal Plug and Play (UPnP): Yes
Ports & interfaces
DC-in jack: Yes
USB 2.0 ports quantity: 1
USB port: Yes
Antenna
Antenna design: Internal
Antennas quantity: 2
WAN connection
DSL WAN: No
SIM card slot: Yes
Ethernet WAN: No
Logistics data
Pallet gross weight (sea): 531 kg
Products per shipping (inner) case: 40 pc(s)
Shipping (inner) case height: 31.2 cm
Master (outer) cases per pallet (sea): 50 pc(s)
Shipping (inner) case net weight: 9.52 kg
Shipping (inner) case length: 48 cm
Pallet gross weight (air): 531 kg
Products per pallet (air): 2000 pc(s)
Shipping (inner) case gross weight: 10.3 kg
Pallet height (air): 169.5 cm
Pallet height (sea): 169.5 cm
Shipping (inner) case width: 22.3 cm
Master (outer) cases per pallet (air): 50 pc(s)
Products per pallet (sea): 2000 pc(s)
Pallet gross length: 120 cm
Pallet gross width: 110 cm
Harmonized System (HS) code: 85176990
Mobile network
Mobile network generation: 4G
GSM bands supported: 900, 1800
2G standards: Edge, GPRS, GSM
3G standards: HSUPA, UMTS, HSDPA
4G standard: LTE
3G bands supported: 900, 2100 MHz
3G: Yes
4G: Yes
Safety warning
Warnings: Do not expose the device to extreme temperatures., Do not expose the device to water or moisture., Do not dismantle the unit yourself, there is a risk of electric shock.
