Design
Weatherproof: Yes
Mounting type: Ceiling/wall
International Protection (IP) code: IP67
Product colour: White
IK code: IK10
Housing material: Aluminium
Protection features: Vandal proof
Form factor: Dome
Power
DC output voltage: 12
Power source type: DC
Power consumption (max): 3.5 W
Operational conditions
Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 90%
Storage temperature (T-T): -40 - 60 °C
Storage relative humidity (H-H): 0 - 90%
Weight & dimensions
Diameter: 12.2 cm
Height: 88.9 mm
Weight: 400 g
Network
Ethernet LAN: No
Bluetooth: No
Wi-Fi: No
Certification: CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Performance
Infrared (IR) cut-off filter: Yes
Remote viewing: Yes
Placement supported: Indoor & outdoor
Languages support: French, English, Italian, German, Spanish, Simplified Chinese, Portuguese, Polish, Japanese, Russian, Korean
Number of languages: 11
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes

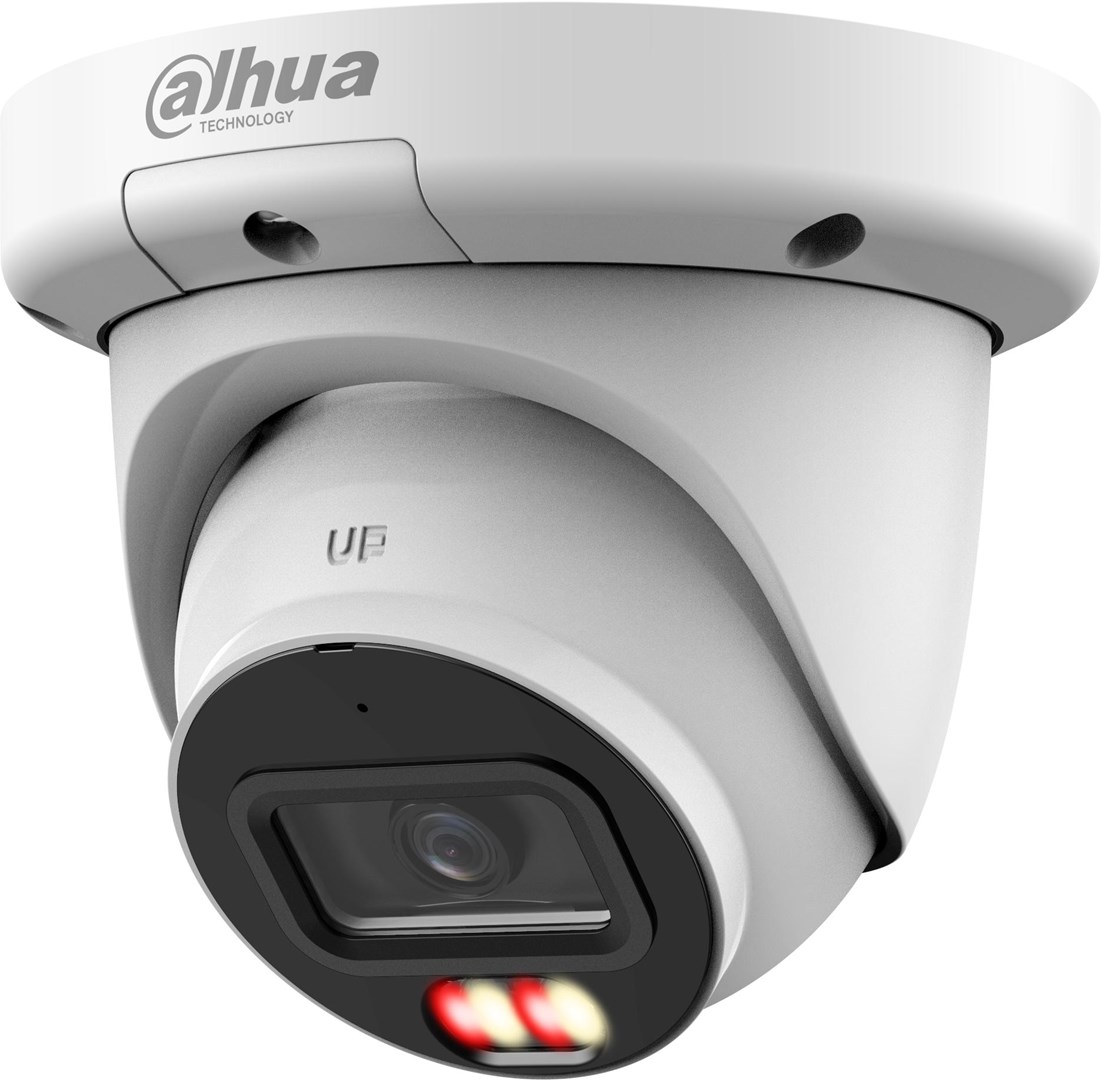

Type: CCTV security camera
Packaging data
Package weight: 550 g
Packaging content
Number of cameras: 1
Storage
Built-in HDD: No
Ports & interfaces
Composite video out: 1
Camera
Camera pan control: Yes
Camera tilt control: Yes
Camera shutter speed: 1/25 - 1/100000 s
Minimum illumination: 0.02 lx
Tilt angle range: 0 - 75°
White balance: Manual, Auto
Pan range: 0 - 355°
Angle of rotation: 355°
Lens viewing angle, horizontal: 106°
Image sensor
Number of sensors: 1
Sensor type: CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Video
Gain control type: Auto
Supported video modes: 720p, 1080p
Back Light Compensation (BLC): Yes
Total megapixels: 2 MP
Highlight Compensation (HLC): Yes
Smart IR: Yes
Maximum resolution: 1920 x 1080 pixels
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Digital Wide Dynamic Range (DWDR): Yes
Analog signal format system: PAL
Frame rate: 25 fps
Noise reduction: Yes
Night vision
Night vision: Yes
Number of illumination LEDs: 2
Night vision distance: 30 m
LED type: IR
Lens system
Number of lenses: 1
Identify distance (wide): 5 m
Identify distance (tele): 15 m
Closest focusing distance: 0.2 m
Observe distance (tele): 59 m
Detect distance (tele): 148 m
Focus: Manual
Detect distance (wide): 45 m
Observe distance (wide): 18 m
Recognize distance (wide): 9 m
Focal length range: 2.7 - 13.5 mm
Maximum aperture number: 1.3
Recognize distance (tele): 30 m
