Design
International Protection (IP) code: IP67
Product colour: White
Form factor: Turret
Mounting type: Ceiling
Power
Power source type: DC, PoE
Power consumption (max): 5.2 W
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 2.5 W
Power consumption: 2.1 mA
Security
Intelligent Video Surveillance (IVS) system features: Intrusion, Tripwire, Human detection, Vehicle detection
Mirror: Yes
Privacy protection: Yes
Video motion detection: Yes
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Management features
Web browser: Yes
Management software: DSS; DMSS
Weight & dimensions
Weight: 370 g
Height: 100.9 mm
Depth: 109.9 mm
Width: 109.9 mm
Diameter: 11 cm
Network
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Streaming method: Multicast
Number of users: 6 user(s)
System requirements
Mobile operating systems supported: iOS, Android
Certification: CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Performance

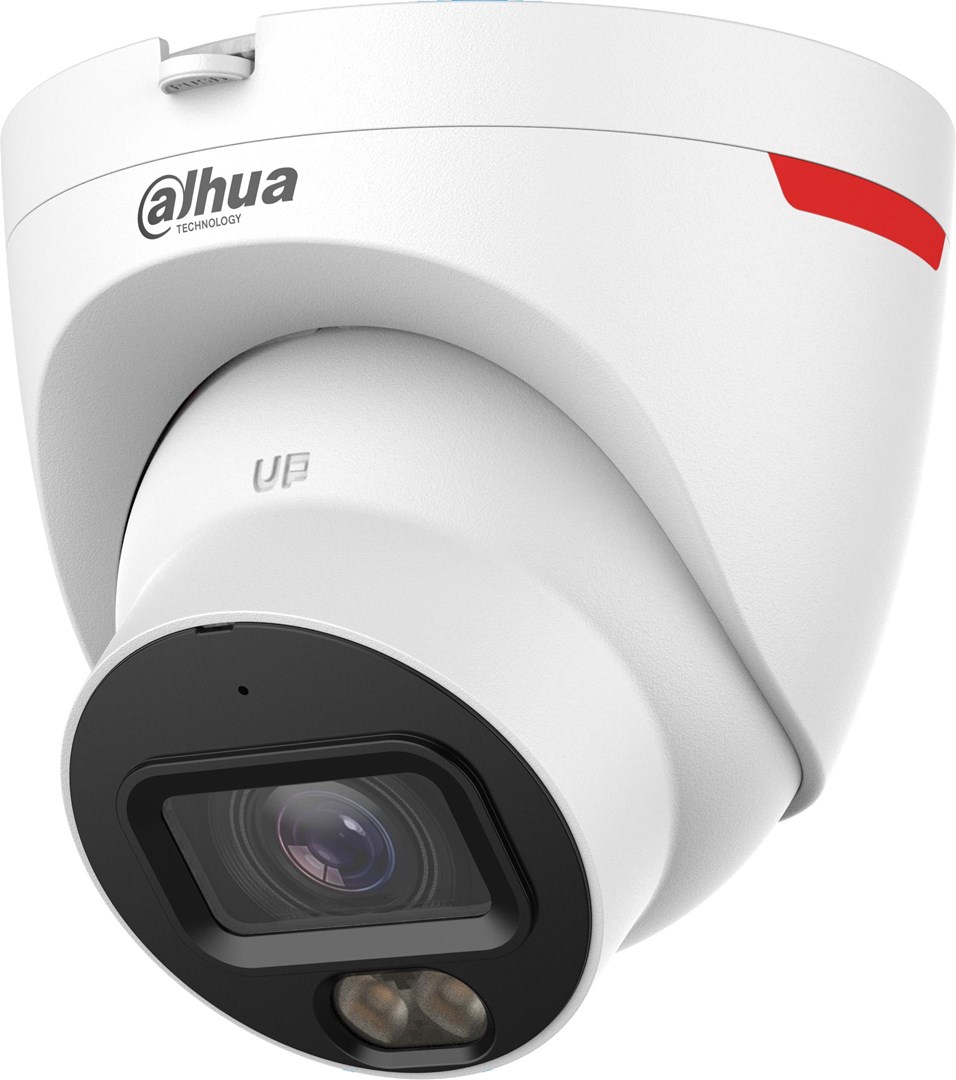

Type: IP security camera
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Dynamic range: 120 dB
Placement supported: Indoor & outdoor
Packaging data
Package weight: 510 g
Packaging content
Number of cameras: 1
Audio
Built-in microphone: Yes
Voice codecs: G.711Mu, PCM, G.711a, G.726
Signal-to-Noise Ratio (SNR): 56 dB
Bit rate range: 12 - 6144 Kbit/s
Storage
Compatible memory cards: MicroSD (TransFlash)
Card reader integrated: Yes
ROM capacity: 128 MB
Internal memory: 128 MB
Maximum memory card size: 256 GB
Built-in HDD: No
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Camera
Tilt angle range: 0 - 78°
Pan range: 0 - 360°
Adjustment shutter speed: Auto/Manual
Camera shutter speed: 1/3 - 1/100000 s
Minimum illumination: 0.008 lx
Camera shutter type: Electronic
Angle of rotation: 360°
Lens viewing angle, diagonal: 120°
Lens viewing angle, horizontal: 101°
Lens viewing angle, vertical: 53°
Image sensor
Progressive scan: Yes
Number of sensors: 1
Sensor type: CMOS
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Video
Supported graphics resolutions: 640 x 480 (VGA), 2560 x 1440, 2304 x 1296, 1920 x 1080 (HD 1080), 2520 x 1520, 1280 x 720 (HD 720), 1280 x 960
Maximum resolution: 2688 x 1520 pixels
Bit rate: H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
Total megapixels: 4 MP
Video compression formats: M-JPEG, H.264H, H.264, H.264B, H.265
Video formats supported: H.264+, H.265+, H.265, H.264
Video streaming: Yes
Noise reduction: Yes
Supported video modes: 1080p
Frame rate: 30 fps
Privacy masking: Yes
Gain control type: Auto/Manual
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction technology: 3D noise reduction
Night vision
Night vision distance: 30 m
LED type: IR
Number of illumination LEDs: 2
Night vision: No
Lens system
Observe distance (tele): 34.2 m
Recognize distance: 12.7 m
Number of lenses: 1
Identify distance (wide): 6.4 m
Recognize distance (wide): 12.7 m
Recognize distance (tele): 17.1 m
Identify distance: 6.4 m
Maximum aperture number: 1.6
Observe distance: 25.4 m
Fixed focal length: 3.6 mm
Closest focusing distance: 0.9 m
Identify distance (tele): 8.5 m
Detect distance: 63.6 m
Normal focusing range: 0.9 - 1.6 m
Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
Panoramic camera
Number of Privacy masking areas (panoramic camera): 4
