Design
Product colour: Red, White
International Protection (IP) code: IP67
Form factor: Bullet
Housing material: Plastic, Metal
Mounting type: Wall
Power
Power consumption (max): 5.7 W
Power source type: DC, PoC
Power consumption (typical): 2 W
Power consumption (Power over Ethernet (PoE)): 6.8 W
Security
Video motion detection: Yes
Digital watermark: Yes
Intelligent Video Surveillance (IVS) system features: Intrusion, Tripwire
Mirror: Yes
HTTPS encryption: Yes
Privacy protection: Yes
Operational conditions
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -40 - 60 °C
Management features
Web-based management: Yes
Cloud-managed: No
Web browser: Yes
Management software: Smart PSS Lite; DSS; DMSS
Weight & dimensions
Weight: 680 g
Depth: 103.8 mm
Width: 201 mm
Height: 97.8 mm
Network
Quality of Service (QoS) support: Yes
Ethernet LAN: Yes
Wi-Fi: No
Bluetooth: No
Number of users: 20 user(s)
Certification: CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Performance

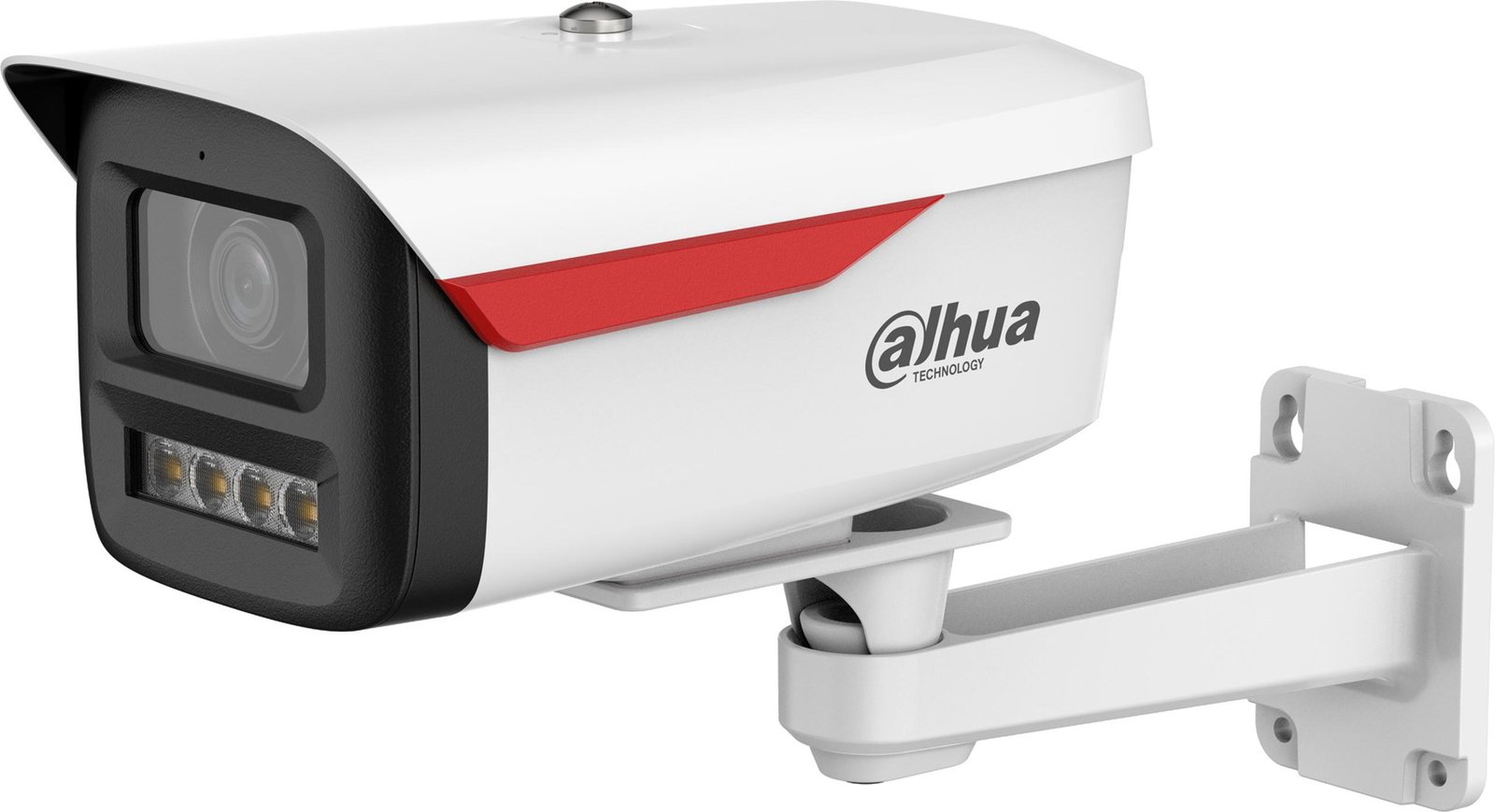

Type: IP security camera
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Alarm input/output: Yes
Placement supported: Indoor & outdoor
Packaging data
Package weight: 1.27 kg
Packaging content
Number of cameras: 1
Audio
Built-in microphone: Yes
Audio formats supported: G.711 μ-law, G.726, G.711 A-law, PCM
Audio detection: Yes
Storage
Compatible memory cards: MicroSD (TransFlash)
Card reader integrated: Yes
Internal memory: 128 MB
Built-in HDD: No
ROM capacity: 128 MB
Maximum memory card size: 256 GB
Camera
Angle of rotation: 270°
Minimum illumination: 0.0005 lx
White balance: Street lamp, Outdoor, Manual, Regional custom, Auto, Natural
Camera shutter speed: 1/3 s–1/100,000
Lens viewing angle, diagonal: 94°
Lens viewing angle, horizontal: 82°
Lens viewing angle, vertical: 43°
Image sensor
Sensor type: CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Video
Supported graphics resolutions: 352 x 288, 704 x 480, 2688 x 1520, 1280 x 720 (HD 720), 704 x 576, 1280 x 960, 2560 x 1440, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 352 x 240, 2304 x 1296
Maximum resolution: 2688 x 1520 pixels
Highlight Compensation (HLC): Yes
Back Light Compensation (BLC): Yes
Video compression formats: M-JPEG, H.264, H.265+, H.264+, H.264H, H.264B, H.265
Gain control type: Auto/Manual
Region of Interest (ROI) encoding: Yes
Supported video modes: 1080p, 720p
Total megapixels: 4 MP
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Noise reduction technology: 3D noise reduction
Noise reduction: Yes
Night vision
Night vision distance: 50 m
Night vision: Yes
Lens system
Fixed focus: Yes
Maximum aperture number: 1
Fixed focal length: 6 mm
Detect distance: 120 m
Number of lenses: 2
Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
