Design
International Protection (IP) code: IP66
Form factor: Dome
Product colour: White
Housing material: Plastic
Mounting type: Wall/ceiling
Power
Power source type: DC
DC output voltage: 12
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 55 °C
Storage temperature (T-T): -40 - 60 °C
Management features
Web-based management: Yes
Web browser: Yes
Weight & dimensions
Weight: 1 kg
Width: 111 mm
Height: 140.5 mm
Network
Ethernet interface type: 10 Megabit Ethernet, 100 Megabit Ethernet
Wi-Fi: Yes
Networking standards: IEEE 802.3af
Bluetooth: No
4G LTE: No
System requirements
Mobile operating systems supported: Android, iOS
Performance

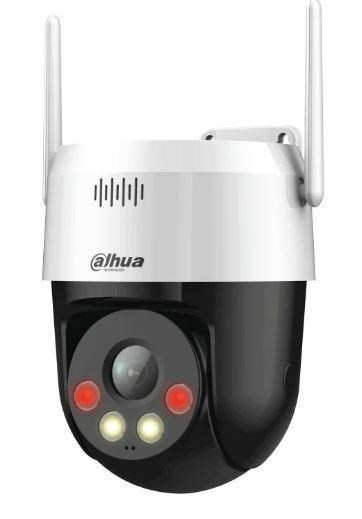

Type: IP security camera
Connectivity technology: Wired & Wireless
Placement supported: Outdoor
Packaging content
Number of cameras: 1
Audio
Built-in microphone: Yes
Built-in loudspeaker: Yes
Audio codecs: PCM, G.711a G.711Mu, G.726
Two-way talk: Yes
Storage
ROM capacity: 256 MB
Camera
Camera shutter speed: 1/3 - 1/100000 s
Motion detection : Yes
People detection : Yes
Lens viewing angle, vertical: 58.1°
Vertical rotation angle: 0 - 80°
Viewing angle, diagonal: 104,8°
Lens viewing angle, horizontal: 80.4°
Horizontal rotation angle: 0 - 345°
Image sensor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS
Progressive scan: Yes
Number of sensors: 1
Video
Maximum resolution: 2560 x 1920 pixels
Total megapixels: 5 MP
Frame rate: 25 / 30 fps
Video compression formats: H.264+, H.265, H.265+
Video streaming: Yes
Night vision
Number of illumination LEDs: 1 / 1
LED type: IR / White light LED
Night vision distance: 30 m
Night vision: Yes
Lens system
Focal length range: 4 mm
Maximum aperture number: 1.6
Lens type: Fixed focal length lens
Number of lenses: 1
Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
