Design
Mounting type: Ceiling/wall
International Protection (IP) code: IP66
Product colour: Black, White
LED indicators: Yes
IK code: IK08
Form factor: Dome
Power
Power consumption (max): 13 W
Power source type: DC, PoE
Power consumption (typical): 4 W
Security
Video motion detection: Yes
Intelligent Video Surveillance (IVS) system features: Abandoned object, Missing object, Crossing line, Face detection, Tripwire
Alarm input channels: 1
Alarm output channels: 1
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Management features
Management software: DMSS; DSS Pro
Web-based management: Yes
Weight & dimensions
Weight: 500 g
Height: 65.7 mm
Diameter: 12.8 cm
Network
Number of users: 20 user(s)
Bluetooth: No
Ethernet LAN: Yes
Wi-Fi: No
System requirements
Mobile operating systems supported: iOS, Android
Certification: CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035
CE-LVD: EN 62368-1
FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4
Performance
Alarm input/output: Yes
Preset points: Yes
Placement supported: Indoor & outdoor
PTZ protocols: DH-SD

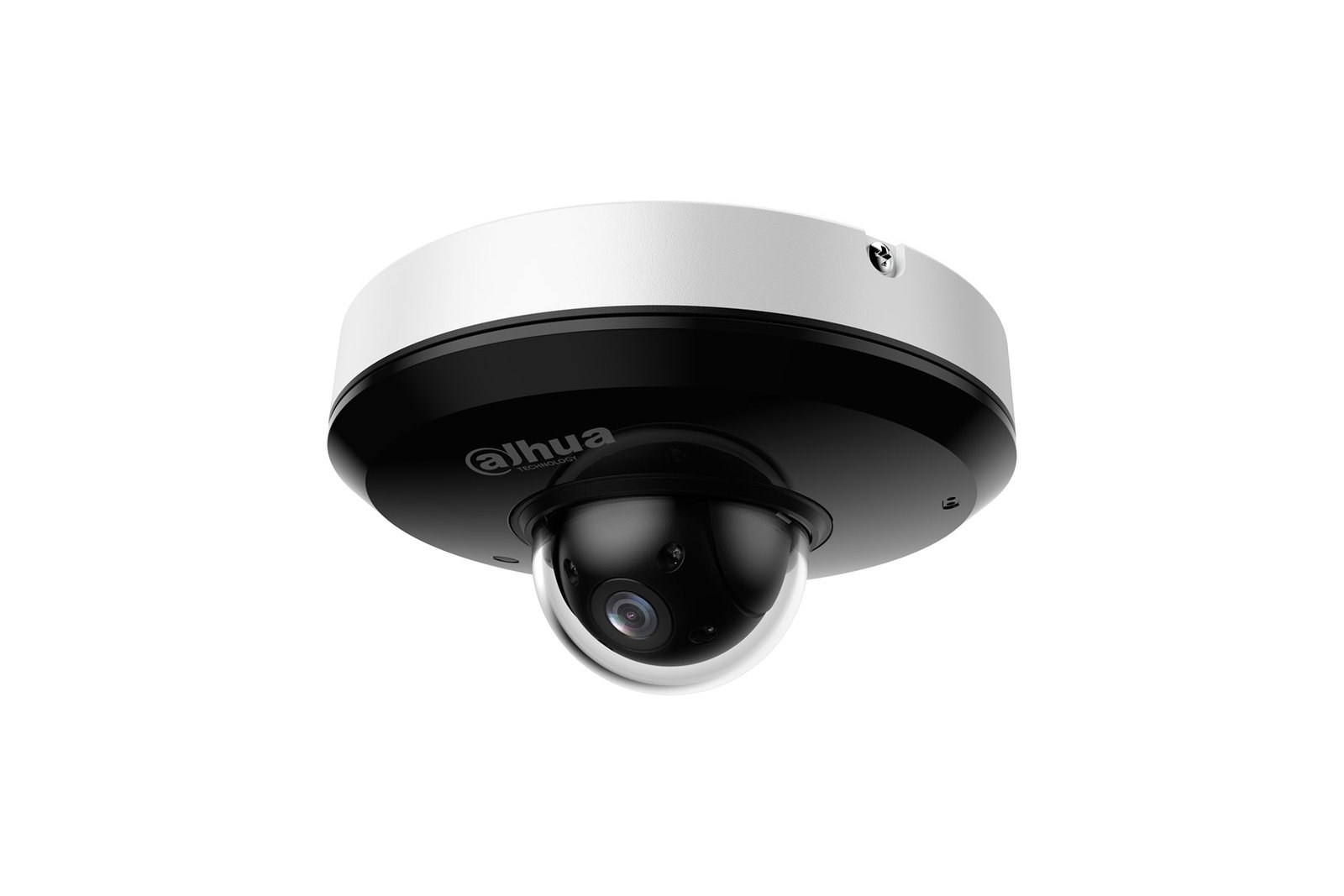

Type: IP security camera
PTZ modes: Preset point, 8 Tour
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Packaging data
Package weight: 700 g
Packaging content
Number of cameras: 1
Audio
Audio detection: Yes
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Storage
ROM capacity: 256 MB
Maximum memory card size: 512 GB
RAM capacity: 512 MB
Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash)
Card reader integrated: Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Camera tilt control: Yes
Camera pan control: Yes
Tilt manual speed: 0.1 - 30 °/sec
Pan manual speed: 0.1 - 70 °/sec
White balance: Manual, Sodium lamp, Indoor, Outdoor, Street lamp, Natural
Tilt preset speed: 0.1 °/sec
Pan range: 0 - 355°
Tilt angle range: 5 - 90°
Minimum illumination: 0.0005 lx
Camera shutter speed: 1 - 1/30000 s
Camera shutter type: Electronic
Pan preset speed: 0.1 °/sec
Image sensor
Sensor type: CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 28 mm (1 / 28")
Video
Region of Interest (ROI) encoding: Yes
Gain control type: Auto/Manual
Video streaming: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video compression formats: H.265+, H.264+, M-JPEG, H.264B, H.264H, H.265, H.264
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image stabilizer: Yes
Supported graphics resolutions: 704 x 480, 1280 x 720 (HD 720), 704 x 576, 1280 x 960, 352 x 240, 2304 x 1296, 2560 x 1440, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080)
Back Light Compensation (BLC): Yes
Frame rate: 30 fps
Total megapixels: 4 MP
Highlight Compensation (HLC): Yes
Noise reduction: Yes
Maximum resolution: 2560 x 1440 pixels
Night vision
Night vision: Yes
Infra-red LEDs life: 3 h
LED type: IR
Night vision distance: 20 m
Lens system
Focus: Motorized/Manual
Number of lenses: 1
Auto focus: Yes
Minimum aperture number: 1.8
Detect distance (wide): 240 m
Recognize distance (wide): 48 m
Observe distance (wide): 94.8 m
Identify distance (wide): 24 m
Closest focusing distance: 0.2 m
Maximum aperture number: 2.7
Focal length range: 2.8 - 12 mm
Optical zoom: 4x
Digital zoom: 16x
Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
Panoramic camera
Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
