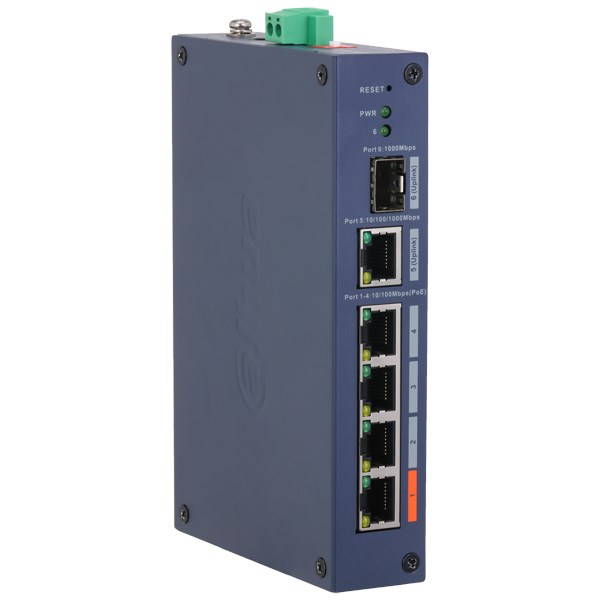

Dahua Technology 6-Port Cloud Managed Hardened Switch with 4-Port PoE

Design
IK code: IK06
Form factor: Desktop
LED indicators: Yes
International Protection (IP) code: IP30
Housing material: Iron
Rack mounting: No
DIN rail mounting: Yes
Reset button: Yes
Product colour: Blue
Suitable for outdoor use: Yes

Power
Power consumption (max): 65 W
Power source: DC
Power supply included: Yes

Security
Loop protection: Yes
DHCP features: DHCP client

Operational conditions
Operating temperature (T-T): -30 - 65 °C
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%

Management features
Switch type: Managed
Cloud-managed: Yes
Web-based management: Yes
Switch layer: L2

Weight & dimensions
Weight: 320 g
Depth: 154.3 mm
Width: 110.4 mm
Height: 30 mm

Network
Virtual LAN features: Port-based VLAN
Networking standards: IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Port mirroring: Yes
Broadcast storm control: Yes
10G support: No
VLAN support: Yes
Number of VLANs: 32

Performance
Mean time between failures (MTBF): 1852444.63 h

Packaging data
Package width: 239 mm
Package depth: 266 mm
Package weight: 880 g
Package height: 77 mm
Terminal block included: Yes

Packaging content
Manual: Yes
Cables included: Power

Certificates
Compliance certificates: CE

Ports & interfaces
Fast Ethernet (copper) ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Gigabit Ethernet (copper) ports quantity: 1
Basic switching RJ-45 Ethernet ports quantity: 4
SFP module slots quantity: 1
Fiber uplink ports quantity: 1
Uplink ports quantity: 2

Data transmission
MAC address table: 8000 entries
Switching capacity: 4.8 Gbit/s
Packet buffer memory: 4 MB
Forwarding rate: 3.57 Mpps
Jumbo frames support: Yes
Jumbo frames: 9216

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE) ports quantity: 4
Total Power over Ethernet (PoE) budget: 60 W
