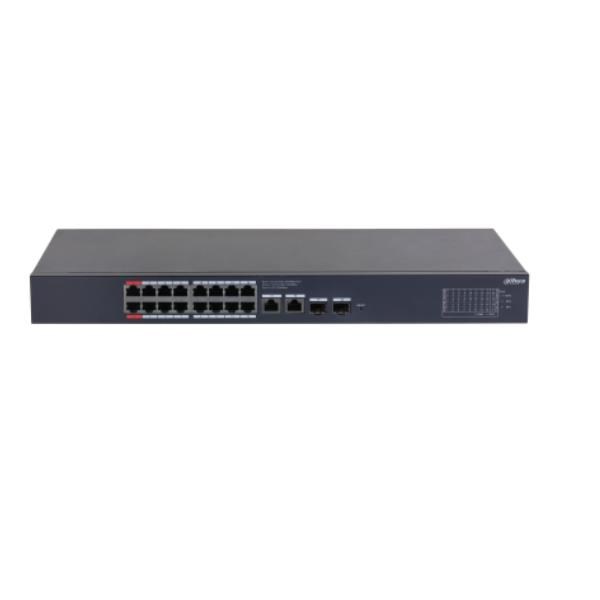

Dahua Technology CS4220-16GT-240 Managed L2 Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) Black

Design
Rack mounting: Yes
Product colour: Black
Reset button: Yes
Housing material: Metal

Power
Power consumption (typical): 265 W
AC input frequency: 47/63 Hz
Power supply included: Yes
AC input voltage: 100 - 240 V
Power source: AC/DC/PoE

Security
DHCP features: DHCP client
Loop protection: Yes

Operational conditions
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -10 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 95%

Management features
Cloud-managed: Yes
Switch layer: L2
Switch type: Managed
Web-based management: Yes

Weight & dimensions
Width: 440 mm
Height: 44 mm
Weight: 2.37 kg
Depth: 220 mm

Network
Spanning tree protocol: Yes
Number of VLANs: 32
Networking standards: IEEE 802.3at, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3bt, IEEE 802.3u
VLAN support: Yes
10G support: No
Flow control support: Yes

Packaging data
Package width: 540 mm
Package depth: 342 mm
Package height: 90 mm
Package weight: 3.02 kg

Ports & interfaces
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 18
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Data transmission
Jumbo frames support: Yes
Jumbo frames: 15360
Forwarding rate: 29.76 Mpps
Switching capacity: 40 Gbit/s
MAC address table: 8000 entries

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 240 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 16
