Design
International Protection (IP) code: IP67
Mounting type: Ceiling
Housing material: Plastic, Metal
Form factor: Turret
Product colour: White
Power
Power consumption (typical): 6.9 W
DC output voltage: 12
Power source type: DC, PoE
Security
Video motion detection: Yes
Security algorithms: HTTPS, 802.1x RADIUS
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Management features
Web browser: Yes
Weight & dimensions
Diameter: 12.2 cm
Width: 122 mm
Depth: 122 mm
Height: 108.3 mm
Weight: 690 g
Network
Quality of Service (QoS) support: Yes
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Number of users: 20 user(s)
Streaming method: Multicast
Networking standards: IEEE 802.3af
System requirements
Mobile operating systems supported: iOS, Android
Certification: CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Performance
Placement supported: Indoor & outdoor
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Dynamic range: 120 dB

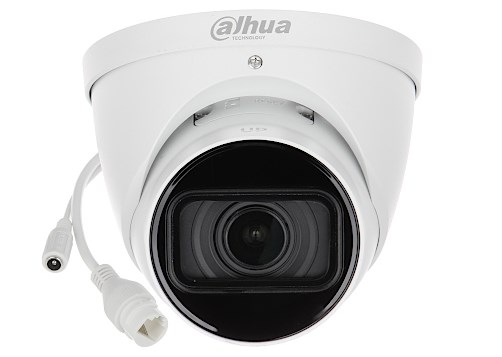

Type: IP security camera
Connectivity technology: Wired
Packaging data
Package weight: 870 g
Packaging content
Number of cameras: 1
Storage
Card reader integrated: Yes
Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash)
ROM capacity: 128 MB
Internal memory: 128 MB
Maximum memory card size: 256 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Pan range: 0 - 355°
Adjustment shutter speed: Auto/Manual
Camera shutter speed: 1/3 - 1/100000 s
Minimum illumination: 0.03 lx
Lens viewing angle, diagonal: 116 - 36°
Angle of rotation: 360°
Lens viewing angle, vertical: 55 - 18°
White balance: Outdoor, Auto, Natural, Manual
Lens viewing angle, horizontal: 98 - 31°
Tilt angle range: 0 - 78°
Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Video
Supported video modes: 1080p, 720p
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: H.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps
Total megapixels: 4 MP
Region of Interest (ROI) encoding: Yes
Video recording: Yes
Video compression formats: H.265, H.264, M-JPEG, H.264B
Back Light Compensation (BLC): Yes
Noise reduction technology: 3D noise reduction
Highlight Compensation (HLC): Yes
Video streaming: Yes
Frame rate: 30 fps
Gain control type: Auto/Manual
Smart IR: Yes
Video formats supported: H.264, H.265
Noise reduction: Yes
Privacy masking: Yes
Supported graphics resolutions: 352 x 288, 1280 x 720 (HD 720), 640 x 480 (VGA), 704 x 576, 1280 x 960, 1920 x 1080 (HD 1080), 352 x 240, 2304 x 1296, 704 x 480, 2688 x 1520, 2560 x 1440
Maximum resolution: 2688 x 1520 pixels
Night vision
LED type: IR
Number of illumination LEDs: 2
Night vision distance: 50 m
Night vision: Yes
Lens system
Focal length range: 2.8 - 12 mm
Detect distance (wide): 66 m
Number of lenses: 1
Observe distance (tele): 80 m
Identify distance (tele): 20 m
Observe distance (wide): 26.4 m
Maximum aperture number: 1.7
Detect distance (tele): 200 m
Recognize distance (tele): 40 m
Recognize distance (wide): 13.2 m
Identify distance (wide): 6.6 m
Closest focusing distance: 0.8 m
Panoramic camera
Number of Privacy masking areas (panoramic camera): 4
