Design
International Protection (IP) code: IP67
Form factor: Dome
Housing material: Metal
Product colour: Black, White
Mounting type: Ceiling
Power
Power consumption (typical): 4.5 W
Power consumption (max): 8.6 W
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 5.8 W
DC output voltage: 12
Security
Security algorithms: HTTPS
IP address filtering: Yes
HTTPS encryption: Yes
Mirror: Yes
Video motion detection: Yes
Built-in siren: Yes
Intelligent Video Surveillance (IVS) system features: Tripwire
Operational conditions
Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Management features
Web browser: Yes
Management software: Smart PSS, DSS, DMSS
Weight & dimensions
Diameter: 12.2 cm
Height: 110.9 mm
Weight: 750 g
Network
Wi-Fi: No
Networking standards: IEEE 802.3af, IEEE 802.1x
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Quality of Service (QoS) support: Yes
Bluetooth: No
Number of users: 20 user(s)
Streaming method: Multicast
System requirements
Mobile operating systems supported: iOS, Android
Certification: CE-LVD: EN62368-1, CE-EMC, FCC
Performance

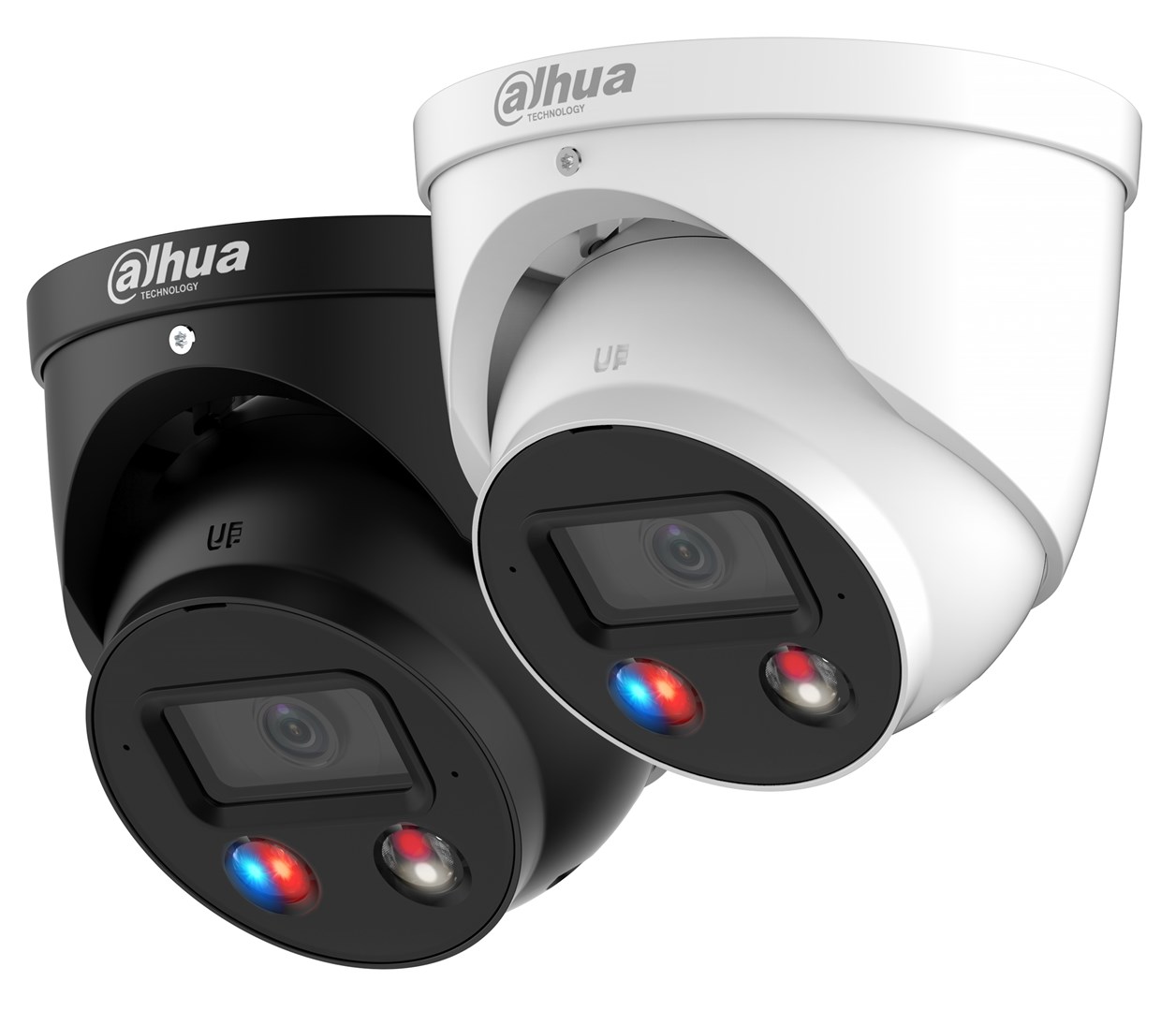

Type: IP security camera
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Alarm input/output: Yes
Infrared (IR) cut-off filter: Yes
Day/night mode: Yes
Placement supported: Indoor & outdoor
Packaging data
Package weight: 920 g
Packaging content
Number of cameras: 1
Manual: Yes
Audio
Built-in microphone: Yes
Audio output channels: 1.0 channels
Signal-to-Noise Ratio (SNR): 56 dB
Voice codecs: G.711Mu, PCM, G.711a, G.726
Audio input channels: 1.0 channels
Storage
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
ROM capacity: 256 MB
Maximum memory card size: 2 GB
Built-in HDD: No
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Camera
Pan range: 0 - 360°
Tilt angle range: 0 - 78°
White balance: Manual, Custom modes, Auto, Outdoor, Natural
Angle of rotation: 360°
Camera shutter type: Electronic
Minimum illumination: 0.0004 lx
Camera tilt control: Yes
Camera shutter speed: 1/3 - 1/100000 s
Adjustment shutter speed: Auto/Manual
Camera pan control: Yes
Lens viewing angle, diagonal: 125°
Lens viewing angle, vertical: 55°
Lens viewing angle, horizontal: 106°
Image sensor
Sensor type: CMOS
Progressive scan: Yes
Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Video
Supported graphics resolutions: 1280 x 720 (HD 720), 352 x 240, 2304 x 1296, 352 x 288, 640 x 480 (VGA), 3072 x 2048, 704 x 480, 2688 x 1520, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 3072 x 1728, 3840 x 2160, 2592 x 1944, 704 x 576, 1280 x 960
Maximum resolution: 3840 x 2160 pixels
Bit rate: 3 kbps - 16384 kbps
Video formats supported: H.264+, H.265+
Total megapixels: 8 MP
Highlight Compensation (HLC): Yes
Back Light Compensation (BLC): Yes
Frame rate: 30 fps
Supported video modes: 1520p, 480p, 576p, 2160p, 720p, 240p, 960p, 1944p
Noise reduction: Yes
Video streaming: Yes
Gain control type: Auto/Manual
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding: Yes
Video compression formats: H.265, M-JPEG, H.264
Privacy masking: Yes
Smart IR: Yes
Noise reduction technology: 3D noise reduction
Night vision
Number of illumination LEDs: 1
Night vision distance: 30 m
LED type: IR
Night vision: Yes
Lens system
Fixed focal length: 2.8 mm
Number of lenses: 1
Closest focusing distance: 1.5 m
Recognize distance (wide): 13.2 m
Identify distance (wide): 6.6 m
Observe distance (wide): 26.4 m
Detect distance (wide): 66 m
Maximum aperture number: 1
Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
