Design
Mounting type: Ceiling
Form factor: Dome
International Protection (IP) code: IP67
Product colour: White
Housing material: Metal
Power
DC output voltage: 12
Power consumption (typical): 7.2 W
Power source type: DC, PoE
Security
Intelligent Video Surveillance (IVS) system features: Crossing line, Intrusion, People counting, Heat map, Tripwire
Video motion detection: Yes
Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Management features
Web browser: Yes
Weight & dimensions
Weight: 550 g
Diameter: 10.6 cm
Height: 93.6 mm
Package weight: 710 g
Network
Ethernet interface type: Fast Ethernet
Bluetooth: No
Quality of Service (QoS) support: Yes
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
Number of users: 20 user(s)
Streaming method: Unicast, Multicast
Wi-Fi: No
System requirements
Mobile operating systems supported: Android, iOS
Certification: CE-LVD: EN60950-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Performance

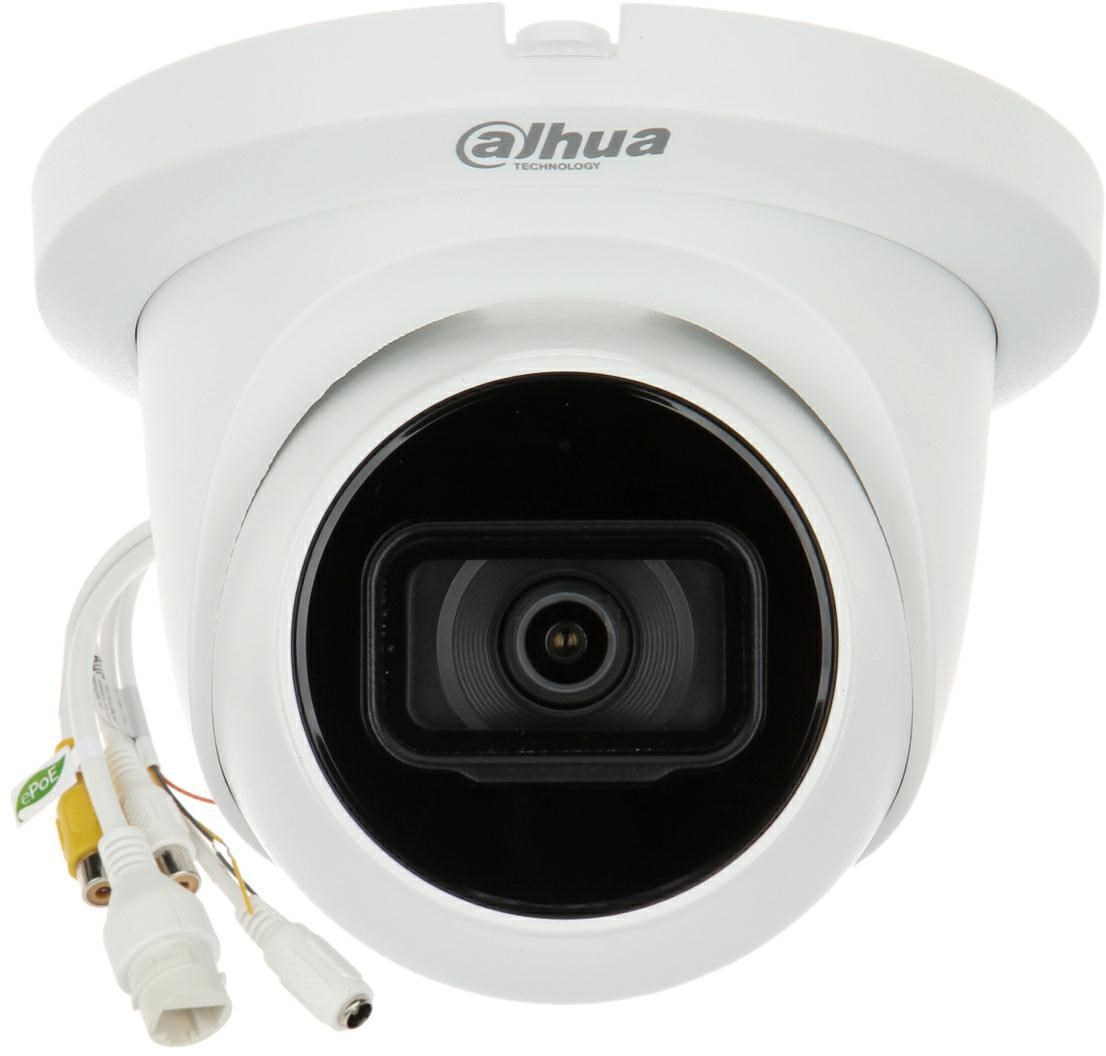

Type: IP security camera
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Day/night mode: Yes
Placement supported: Indoor & outdoor
Infrared (IR) cut-off filter: Yes
Packaging content
Number of cameras: 1
Audio
Voice codecs: G.711Mu, G.723, AAC, G.711a, G.726
Built-in microphone: Yes
Storage
Card reader integrated: Yes
ROM capacity: 128 MB
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Tilt angle range: 0 - 78°
Minimum illumination: 0.005 lx
Pan range: 0 - 360°
Camera shutter type: Electronic
Camera shutter speed: 1/3 s–1/100000 s
Angle of rotation: 360°
Adjustment shutter speed: Auto/Manual
Lens viewing angle, horizontal: 102°
White balance: Auto, Manual, Natural, Lamp, Outdoor
Lens viewing angle, vertical: 71°
Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS
Number of sensors: 1
Number of effective pixels (H x V): 2592 x 1944 pixels
Video
Supported graphics resolutions: 1920 x 1080 (HD 1080), 704 x 576, 1280 x 960, 352 x 240, 2304 x 1296, 2560 x 1440, 704 x 480, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 2592 x 1520
Video streaming: Yes
Region of Interest (ROI) encoding: Yes
Maximum resolution: 2592 x 1944 pixels
Noise reduction: Yes
Flip & mirror: Yes
Bit rate: 32 Kbps–8192 Kbps
Frame rate: 60 fps
Total megapixels: 5 MP
Gain control type: Auto/Manual
Video compression formats: H.264
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Night vision
Night vision distance: 50 m
Number of illumination LEDs: 2
LED type: IR
Night vision: Yes
Lens system
Fixed focal length: 2.8 mm
Maximum aperture number: 1.6
Number of lenses: 1
