Design
Product colour: White, Black, Red
Mounting type: Ceiling/wall
International Protection (IP) code: IP67
Housing material: Metal
Power
Power source type: PoE
Power consumption (typical): 7.2 W
Security
Intelligent Video Surveillance (IVS) system features: Vehilce detection, Intrusion, Human detection
Operational conditions
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -40 - 60 °C
Management features
Management software: SmartPSS Lite; DSS; DMSS
Web browser: Yes
Weight & dimensions
Width: 80.2 mm
Length: 197.9 mm
Height: 76.2 mm
Weight: 570 g
Network
Cabling technology: 10/100Base-T
Quality of Service (QoS) support: Yes
Number of users: 20 user(s)
Streaming method: Multicast
System requirements
Mobile operating systems supported: Android, iOS
Certification: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUC
Performance
Wide Dynamic Range (WDR): Yes

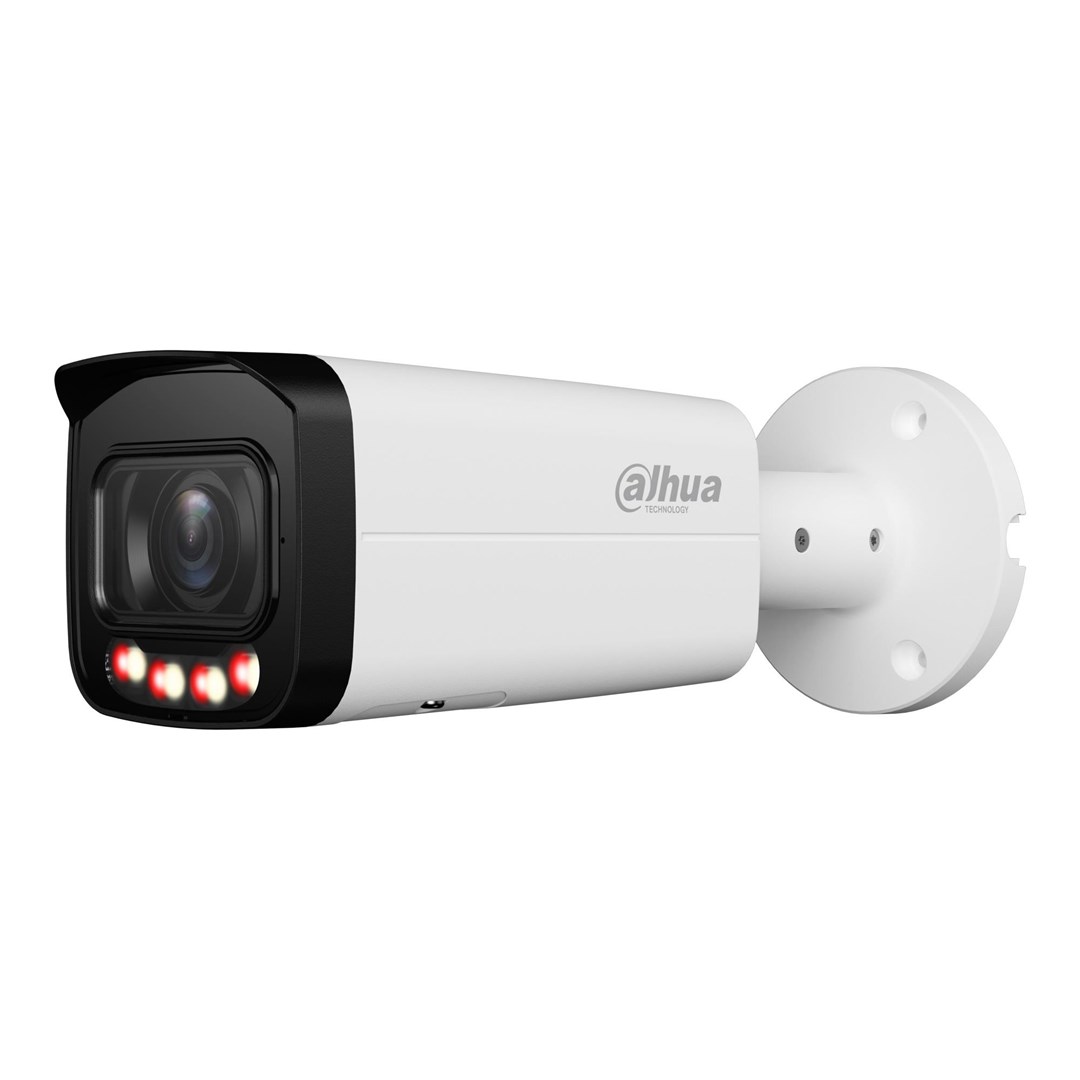

Type: IP security camera
Connectivity technology: Wired
Packaging content
Number of cameras: 1
Storage
ROM capacity: 128 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Tilt angle range: 0 - 90°
Pan range: 0 - 360°
White balance: Manual, Natural, Auto, Regional custom, Lamp, Outdoor
Image sensor
Number of sensors: 1
Sensor type: CMOS
Progressive scan: Yes
Video
Supported graphics resolutions: 640 x 480 (VGA), 704 x 576, 1280 x 960, 1280 x 720, 704 x 480, 2688 x 1520, 1920 x 1080, 352 x 288, 2560 x 1440, 352 x 240, 2304 x 1296
3D NR (Noise Reduction): Yes
Flip & mirror: Yes
Privacy masking: Yes
Maximum resolution: 2688 x 1520 pixels
Highlight Compensation (HLC): Yes
Video compression formats: H.264H, H.264, H.264B, M-JPEG, H.265
Total megapixels: 4 MP
Gain control type: Auto/Manual
Region of Interest (ROI) encoding: Yes
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Lens system
Number of lenses: 3
Fixed focal length: 2.8 mm; 3.6 mm, 6 mm
Fixed focus: Yes
Maximum aperture number: 1
Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
