Design
Housing material: Aluminium
Form factor: Bullet
International Protection (IP) code: IP67
Product colour: White
Mounting type: Ceiling/Wall/Pole
Power
Power source type: DC
Power consumption (max): 4.9 W
DC output voltage: 12
Operational conditions
Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 90%
Storage temperature (T-T): -40 - 60 °C
Weight & dimensions
Width: 164.7 mm
Depth: 70 mm
Weight: 380 g
Height: 71.6 mm
Network
Ethernet LAN: No
Wi-Fi: No
Bluetooth: No
Certification: CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Performance

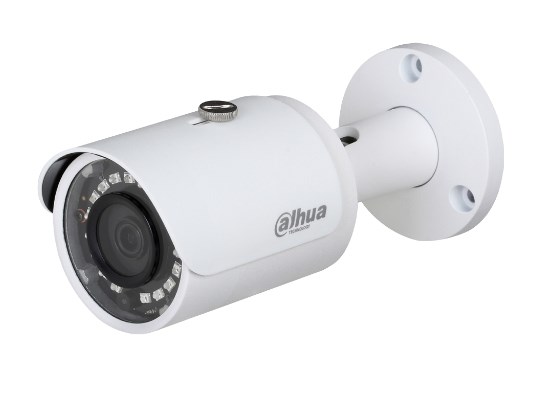

Type: CCTV security camera
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Languages support: Italian, English, German, Polish, Japanese, Russian, Estonian, Portuguese, French, Korean, Simplified Chinese
Placement supported: Indoor & outdoor
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Number of languages: 11
Remote viewing: Yes
Packaging data
Package weight: 470 g
Packaging content
Number of cameras: 1
Storage
Built-in HDD: No
Ports & interfaces
Composite video out: 1
Camera
Tilt angle range: 0 - 90°
Minimum illumination: 0.03 lx
Camera shutter speed: 1/25 - 1/100000 s
White balance: Manual, Auto
Pan range: 0 - 360°
Lens viewing angle, vertical: 52°
Angle of rotation: 360°
Lens viewing angle, horizontal: 97°
Camera tilt control: Yes
Camera pan control: Yes
Image sensor
Number of sensors: 1
Sensor type: CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Video
Supported graphics resolutions: 2560 x 1440, 1920 x 1080 (HD 1080)
Digital Wide Dynamic Range (DWDR): Yes
Back Light Compensation (BLC): Yes
Supported video modes: 1080p
Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Highlight Compensation (HLC): Yes
Analog signal format system: PAL
Frame rate: 25 fps
Noise reduction: Yes
Smart IR: Yes
Gain control type: Auto
Night vision
Number of illumination LEDs: 18
LED type: IR
Night vision distance: 30 m
Night vision: Yes
Lens system
Closest focusing distance: 0.8 m
Identify distance: 6 m
Fixed focal length: 2.8 mm
Observe distance: 22 m
Number of lenses: 1
Fixed focus: Yes
Detect distance: 56 m
Maximum aperture number: 2
Recognize distance: 11 m
