Design
Product colour: White
Form factor: Dome
Housing material: Plastic, Metal
Mounting type: Ceiling/wall
International Protection (IP) code: IP67
Power
Power source type: DC
DC output voltage: 12
Security
Mirror: Yes
Operational conditions
Storage temperature (T-T): -40 - 60 °C
Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
Weight: 420 g
Height: 99.1 mm
Diameter: 12.2 cm
Network
Bluetooth: No
Ethernet LAN: No
Wi-Fi: No
Certification: CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Performance
Connectivity technology: Wired

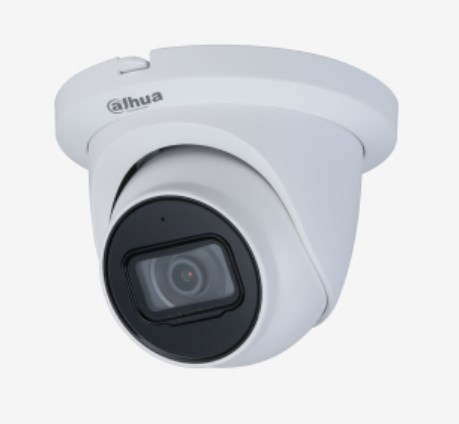

Type: CCTV security camera
Placement supported: Indoor & outdoor
Wide Dynamic Range (WDR): Yes
Packaging data
Package weight: 620 g
Packaging content
Number of cameras: 1
Audio
Signal-to-Noise Ratio (SNR): 65 dB
Audio input channels: 1.0 channels
Storage
Built-in HDD: No
Ports & interfaces
BNC output ports: 1
Camera
Tilt angle range: 0 - 90°
Camera pan control: Yes
Camera tilt control: Yes
White balance: Manual, Auto
Pan range: 0 - 360°
Angle of rotation: 360°
Minimum illumination: 0.002 lx
Camera shutter type: Electronic
Adjustment shutter speed: Auto/Manual
Camera shutter speed: PAL: 1/25 s–1/100,000 s/PAL: 1/25 s–1/100,000 s
Image sensor
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Video
Maximum resolution: 1920 x 1080 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080), 1280 x 720 (HD 720)
Privacy masking: Yes
Back Light Compensation (BLC): Yes
Noise reduction: Yes
Analog signal format system: PAL
Frame rate: 30 fps
Total megapixels: 2 MP
Smart IR: Yes
Supported video modes: 1080p, 720p
Noise reduction technology: 3D noise reduction
Highlight Compensation (HLC): Yes
Night vision
Night vision: Yes
LED type: IR
Night vision distance: 60 m
Number of illumination LEDs: 2
Lens system
Number of lenses: 1
Identify distance: 8.3 m
Focal length range: 2.8 - 3.6 - 6 mm
Maximum aperture number: 1.6
Recognize distance: 16.6 m
Observe distance: 33.1 m
Detect distance: 82.8 m
Safety warning
Warnings: Avoid exposure of the device to direct water or moisture., It is forbidden to open the device yourself; service and repairs should be performed by qualified personnel., Start up and operate the unit in accordance with the operating instructions to avoid the risk of electric shock.
