Design
Product colour: White
Form factor: Dome
Housing material: Metal
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Power
Power consumption (max): 5.7 W
Power source type: DC
DC output voltage: 12
Security
Mirror: Yes
Video motion detection: Yes
Operational conditions
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 60 °C
Weight & dimensions
Weight: 470 g
Diameter: 9.92 cm
Height: 106 mm
Certification: CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Performance
Built-in light: Yes
Connectivity technology: Wired

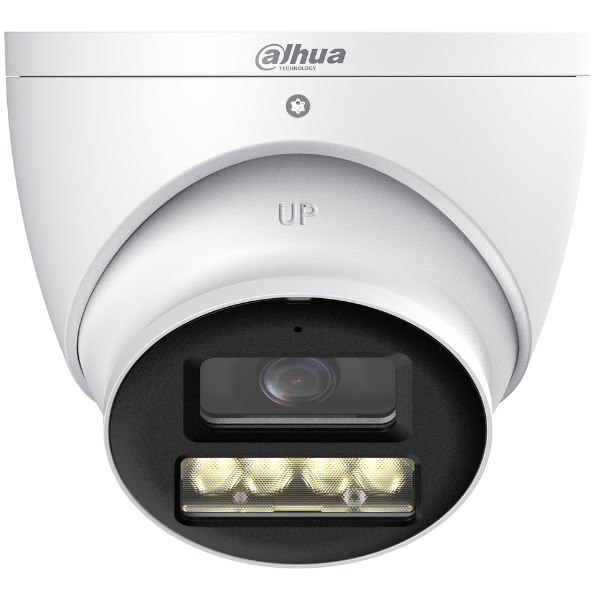

Type: IP security camera
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Placement supported: Indoor & outdoor
Alarm input/output: Yes
Remote viewing: Yes
Packaging data
Package weight: 690 g
Packaging content
Manual: Yes
Number of cameras: 1
Audio
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 65 dB
Storage
Built-in HDD: No
Camera
Tilt angle range: 0 - 78°
Minimum illumination: 0.01 lx
Angle of rotation: 360°
White balance: Area white balance, Auto
Pan range: 0 - 360°
Number of Privacy masking areas: 8
Camera shutter type: Electronic
Camera shutter speed: 1/100000 s
Lens viewing angle, horizontal: 106°
Lens viewing angle, diagonal: 125°
Lens viewing angle, vertical: 56.5°
Image sensor
Number of sensors: 1
Progressive scan: Yes
Sensor type: CMOS
Video
Supported graphics resolutions: 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160, 960 x 480, 2880 x 1620, 960 x 576
Highlight Compensation (HLC): Yes
Back Light Compensation (BLC): Yes
Maximum resolution: 3840 x 2160 pixels
Noise reduction: Yes
Smart IR: Yes
Digital Wide Dynamic Range (DWDR): Yes
Gain control type: Auto/Manual
Frame rate: 15 fps
Noise reduction technology: 3D noise reduction
Night vision
Night vision distance: 40 m
Number of illumination LEDs: 2
Night vision: Yes
Lens system
Maximum aperture number: 2
Recognize distance: 17.6 m
Fixed focal length: 2.8 mm
Number of lenses: 1
Fixed focus: Yes
Observe distance: 35.2 m
Detect distance: 88 m
Identify distance: 8.8 m
Focus: Motorized/Manual
