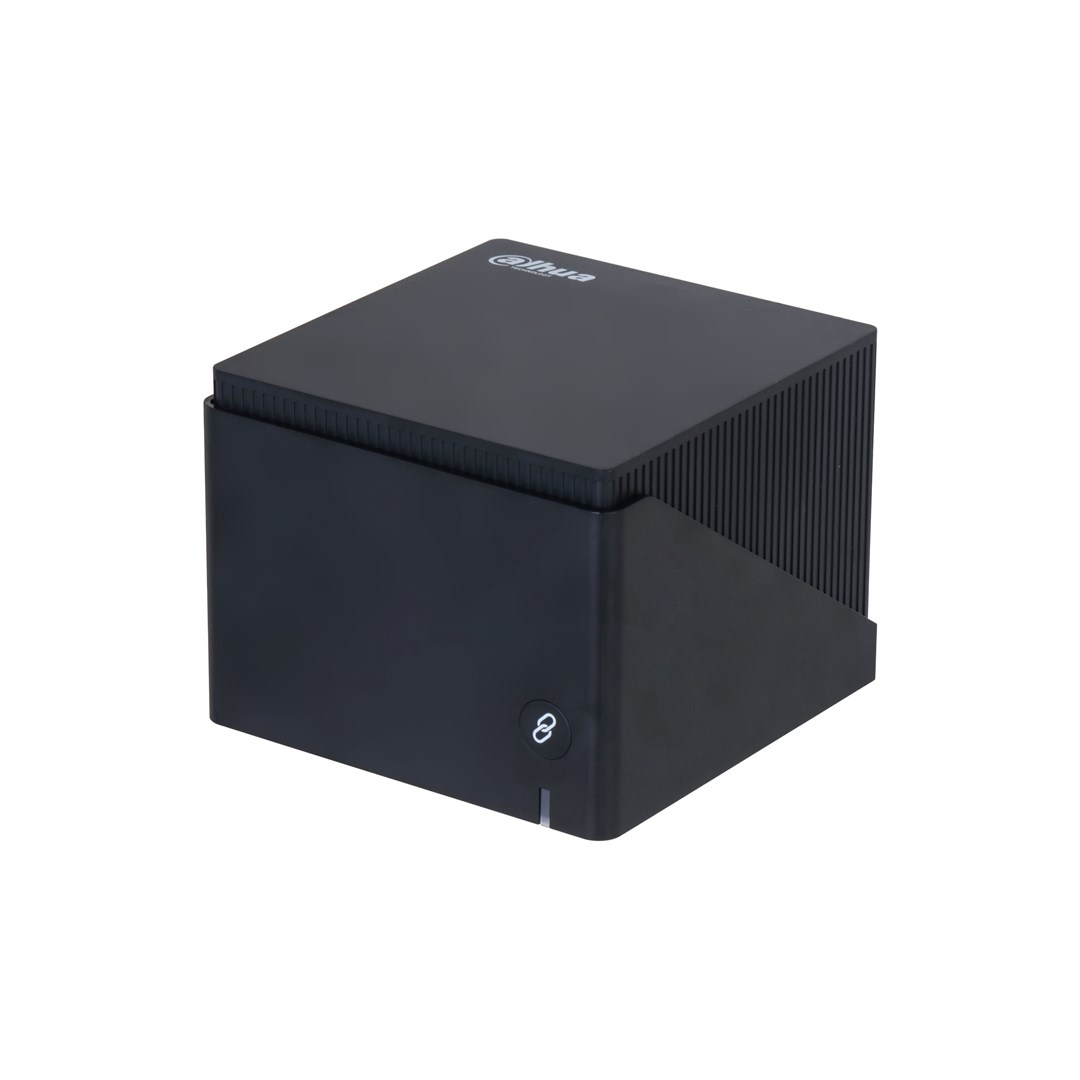

Dahua Technology MAX18 Mesh Wireless Router

NAT functionality: Port-based NAT configuration

Features
DHCP server: Yes
Internal memory: 256 MB

Design
Product colour: Black
Reset button: Yes
Antennas quantity: 4
Product type: Mesh router
LED indicators: Status
Antenna type: Internal
Antenna direction type: Omni-directional
Transmit power: 4.45 dBmW
Number of devices supported: 64

Power
Power consumption (typical): 12 W
AC adapter output voltage: 12 V

Operational conditions
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -10 - 55 °C
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions
Weight: 230 g
Height: 72 mm
Width: 94 mm
Depth: 94 mm

Packaging data
Package weight: 480 g
Package width: 121.5 mm
Package height: 155.5 mm
Package depth: 126.5 mm

Packaging content
Quick installation guide: Yes
Number of products included: 3 pc(s)
AC adapter included: Yes
Ethernet cable: Yes
VPN support: L2TP; L2TP/IPsec VPN

Wireless LAN features
WLAN data transfer rate (max): 1800 Mbit/s
Wi-Fi standards: 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n)
Security algorithms: WPA2-PSK, WPA3-PSK, SSH
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Static IP: Yes
WLAN data transfer rate (second band): 1201 Mbit/s
WLAN data transfer rate (first band): 574 Mbit/s
Point-to-point protocol over Ethernet (PPPoE): Yes

Protocols
Supported network protocols (IPv6): UDP; HTTPS; IPv6; IPv4; TCP/IP; HTTP; NTP; SSL; DHCP

Ports & interfaces
Ethernet LAN (RJ-45) ports: 3
Ethernet WAN: Yes
DC-in jack: Yes
