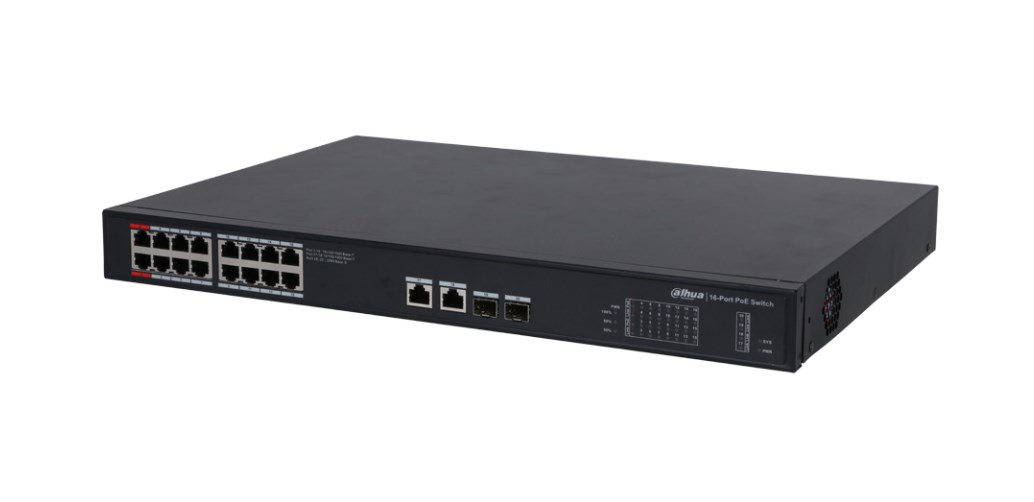

Dahua Technology PoE DH-PFS3220-16GT-190 network switch Unmanaged L2 Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) 1U Black

Design
Rack mounting: Yes
Form factor: 1U
Product colour: Black

Power
Power consumption (max): 190 W
AC input voltage: 100 - 240 V

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -10 - 55 °C
Storage relative humidity (H-H): 5 - 95%

Management features
Switch type: Unmanaged
Switch layer: L2

Weight & dimensions
Height: 44 mm
Depth: 300 mm
Width: 440 mm

Network
Ethernet LAN data rates: 10,100,1000 Mbit/s
10G support: No
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3u

Packaging data
Package depth: 412 mm
Package width: 527 mm
Package height: 110 mm

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 18
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Data transmission
Switching capacity: 52 Gbit/s
MAC address table: 8000 entries
Packet buffer memory: 4 MB
Forwarding rate: 29.76 Mpps

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 190 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 16

Optical fiber
Switching optical modules type: Gigabit Ethernet
