Design
International Protection (IP) code: IP66
Form factor: Spherical
Product colour: White
Mounting type: Ceiling
Power
Power consumption (typical): 9.5 W
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 21.5 W
DC output voltage: 12
Security
Alarm output channels: 1
Alarm input channels: 2
Siren noise level: 55 dB
Operational conditions
Operating temperature (T-T): -40 - 65 °C
Management features
Web-based management: Yes
Cloud-managed: Yes
Weight & dimensions
Height: 170.4 mm
Weight: 2.5 kg
Diameter: 17.1 cm
Network
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Live view: Yes
Streaming method: Multicast, Unicast
Number of users: 20 user(s)
Performance

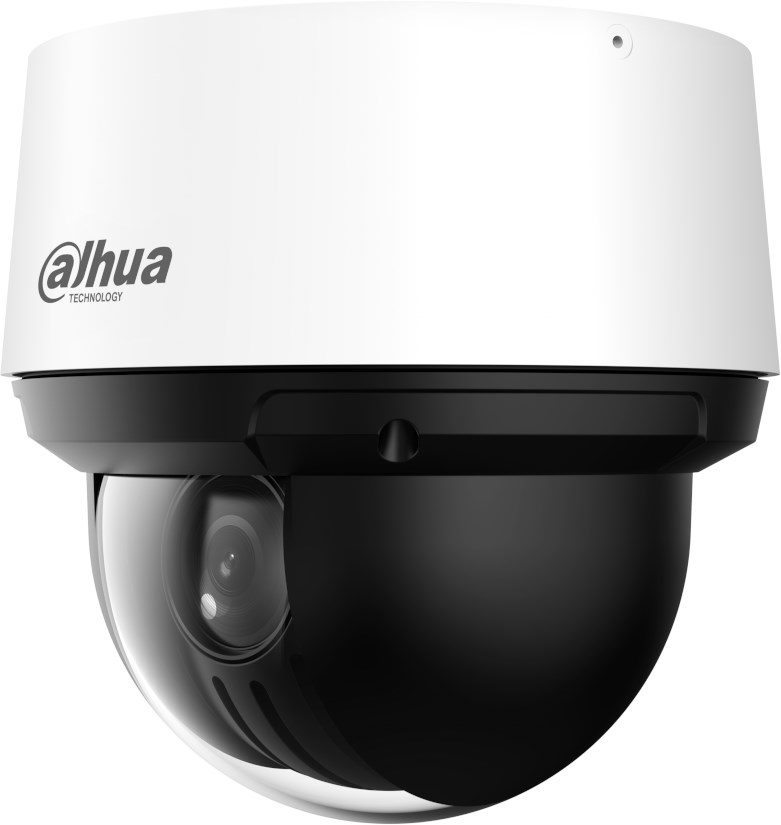

Type: IP security camera
Built-in light: Yes
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Placement supported: Indoor & outdoor
Day/night mode: Yes
Alarm input/output: Yes
Auto-tracking: Yes
Packaging data
Package weight: 3.2 kg
Packaging content
Number of cameras: 1
Audio
Audio output channels: 1.0 channels
Built-in microphone: Yes
Audio input channels: 1.0 channels
Voice codecs: PCM, G.711Mu, G.723, G.711a, G.726
Storage
ROM capacity: 128 MB
RAM capacity: 512 MB
Built-in HDD: No
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Camera
Minimum illumination: 0.0005 lx
Tilt angle range: -5 - 90°
White balance: Manual, Sodium lamp, Street lamp, Regional custom, Auto, Natural, Outdoor
Camera shutter speed: 1 - 1/30000 s
Camera shutter type: Electronic
Camera tilt control: Yes
Pan preset speed: 240 °/sec
Camera pan control: Yes
Pan range: 0 - 360°
Tilt preset speed: 160 °/sec
Pan manual speed: 0.1 - 240 °/sec
Lens viewing angle, vertical: 39.7°
Number of Privacy masking areas: 24
Lens viewing angle, horizontal: 51.9°
Tilt manual speed: 0.1 - 160 °/sec
Lens viewing angle, diagonal: 63.1°
Image sensor
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Video
Maximum resolution: 3860 x 2160 pixels
Video formats supported: H.264+, H.265+
Total megapixels: 4 MP
Frame rate: 25 fps
Night vision
LED type: IR
Night vision distance: 100 m
Number of illumination LEDs: 6
Night vision: Yes
Lens system
Detect distance: 2500 m
Auto focus: Yes
Recognize distance: 500 m
Observe distance: 987.5 m
Number of lenses: 1
Identify distance: 250 m
Focal length range: 5 - 125 mm
Focus: Motorized
Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
