Design
IK code: IK10
International Protection (IP) code: IP67
Form factor: Dome
Housing material: Metal
Mounting type: Ceiling/wall
Product colour: White
Power
DC output voltage: 12
Power consumption (max): 6.1 W
Power source type: DC, PoE
Security
Intelligent Video Surveillance (IVS) system features: Scene change, Missing object, People counting, Abandoned object, Face detection, Tripwire
Video motion detection: Yes
Operational conditions
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Management features
Web browser: Yes
Behavior analysis: Intrusion detection, Line crossing detection
Web-based management: Yes
Weight & dimensions
Depth: 122 mm
Height: 94 mm
Diameter: 12.2 cm
Width: 122 mm
Weight: 712.9 g
Network
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Streaming method: Unicast, Multicast
Number of users: 20 user(s)
Bluetooth: No
Networking standards: IEEE 802.3af, IEEE 802.1x
System requirements
Mobile operating systems supported: Android, iOS
Certification: CE-LVD: EN60950-1
CE-EMC: 2014/30/EU
FCC: 47 CFR FCC 15, B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Performance
Placement supported: Outdoor
Wide Dynamic Range (WDR): Yes
Alarm input/output: Yes
Day/night mode: Yes
Connectivity technology: Wired

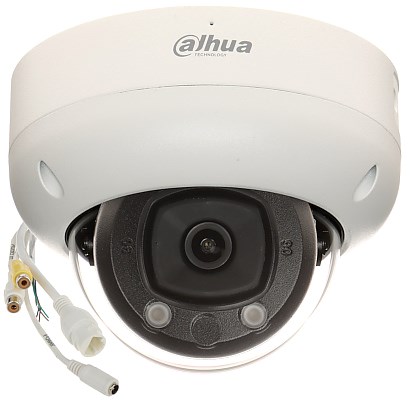

Type: IP security camera
Packaging data
Package weight: 986 g
Packaging content
Number of cameras: 1
Audio
Audio formats supported: AAC
Audio input channels: 1.0 channels
Voice codecs: G.711Mu, G.711a, G.726, G.723
Audio output channels: 1.0 channels
Storage
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 512 MB
Card reader integrated: Yes
Maximum memory card size: 256 GB
ROM capacity: 128 MB
Built-in HDD: No
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Camera tilt control: Yes
Angle of rotation: 355°
Adjustment shutter speed: Auto/Manual
Camera pan control: Yes
Camera shutter type: Electronic
Pan range: 0 - 355°
Minimum illumination: 0.002 lx
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, vertical: 48°
Lens viewing angle, horizontal: 89°
Tilt angle range: 0 - 75°
Image sensor
Sensor type: CMOS
Number of effective pixels (H x V): 2688 x 1520 pixels
Progressive scan: Yes
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Number of sensors: 1
Video
Smart IR: Yes
Flip & mirror: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Highlight Compensation (HLC): Yes
Frame rate: 30 fps
Bit rate: 32 - 8192, 19 - 8192 Kbps
Video compression formats: M-JPEG, H.264, H.265
Region of Interest (ROI) encoding: Yes
Privacy masking: Yes
Gain control type: Auto/Manual
Back Light Compensation (BLC): Yes
Total megapixels: 4 MP
Video streaming: Yes
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Supported graphics resolutions: 2560 x 1440, 1920 x 1080 (HD 1080), 704 x 480, 2688 x 1520, 704 x 576, 1280 x 960, 640 x 480 (VGA), 352 x 288, 352 x 240, 2304 x 1296, 1280 x 720 (HD 720)
Maximum resolution: 2688 x 1520 pixels
Night vision
LED type: IR
Number of illumination LEDs: 1
Night vision distance: 50 m
Night vision: Yes
Lens system
Observe distance: 38.6 m
Detect distance: 50 m
Number of lenses: 1
Recognize distance: 19.3 m
Maximum aperture number: 1.6
Fixed focal length: 3.6 mm
Identify distance: 9.7 m
Closest focusing distance: 1.3 m
