Design
Product colour: White
International Protection (IP) code: IP67
IK code: IK10
Housing material: Metal
Form factor: Dome
Mounting type: Ceiling/Wall/Pole
Power
Power source type: DC, PoE
Power consumption (max): 7.9 W
Power consumption (typical): 2.4 W
DC output voltage: 12
Security
Mirror: Yes
Video motion detection: Yes
Operational conditions
Storage temperature (T-T): -40 - 60 °C
Operating temperature (T-T): -40 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Management features
Web browser: Yes
Management software: Smart PSS Lite; DSS; DMSS; DoLynk Care
Weight & dimensions
Diameter: 11 cm
Weight: 350 g
Height: 81 mm
Network
Networking standards: IEEE 802.3af
Wi-Fi: No
Bluetooth: No
Ethernet LAN: Yes
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Ethernet interface type: Fast Ethernet
Number of users: 6 user(s)
System requirements
Mobile operating systems supported: iOS, Android
Certification: CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
Performance

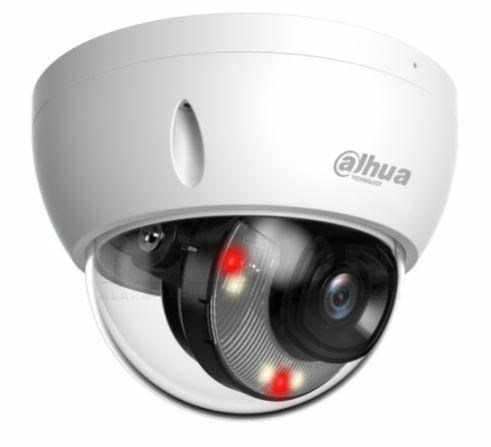

Type: IP security camera
Connectivity technology: Wired
Day/night mode: Yes
Dynamic range: 120 dB
Placement supported: Outdoor
Packaging data
Package weight: 500 g
Packaging content
Number of cameras: 1
Audio
Built-in microphone: Yes
Voice codecs: G.711a, G.726, PCM, G.711Mu
Storage
Compatible memory cards: MicroSD (TransFlash)
Card reader integrated: Yes
Maximum memory card size: 256 GB
Built-in HDD: No
ROM capacity: 128 MB
RAM capacity: 128 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Tilt angle range: 0 - 65°
Camera shutter type: Electronic
Camera shutter speed: 1/3 - 1/100000 s
Minimum illumination: 0 lx
Pan range: 0 - 355°
White balance: Natural, Street lamp, Regional custom, Auto, Outdoor, Manual
Angle of rotation: 355°
Lens viewing angle, diagonal: 120°
Lens viewing angle, horizontal: 101°
Lens viewing angle, vertical: 54°
Image sensor
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Progressive scan: Yes
Sensor type: CMOS
Video
Maximum resolution: 2688 x 1520 pixels
Bit rate: H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
Highlight Compensation (HLC): Yes
Back Light Compensation (BLC): Yes
Total megapixels: 4 MP
Supported graphics resolutions: 2560 x 1440, 704 x 576, 1280 x 960, 704 x 480, 2688 x 1520, 1280 x 720 (HD 720), 640 x 480 (VGA), 352 x 288, 352 x 240, 2304 x 1296, 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Video compression formats: H.264B, H.264H, M-JPEG, H.264, H.265
Video streaming: Yes
Gain control type: Auto/Manual
Region of Interest (ROI) encoding: Yes
Noise reduction technology: 3D noise reduction
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction: Yes
Night vision
LED type: IR/White
Night vision distance: 30 m
Night vision: Yes
Lens system
Recognize distance: 12.7 m
Closest focusing distance: 1.1 m
Identify distance: 6.4 m
Fixed focal length: 2.8 mm
Observe distance: 25.4 m
Detect distance: 63.6 m
Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
