Design
Product colour: Black, White
Form factor: Bullet
International Protection (IP) code: IP67
Housing material: Metal
Mounting type: Ceiling/wall
Power
Power source type: DC, PoE
DC output voltage: 12
Security
Alarm input channels: 1
Alarm output channels: 1
Video motion detection: Yes
Mirror: Yes
Operational conditions
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Management features
Management software: Smart PSS, DSS, DMSS
Web browser: Yes
Weight & dimensions
Length: 249.3 mm
Width: 90.7 mm
Height: 90.4 mm
Weight: 820 g
Network
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Bluetooth: No
Quality of Service (QoS) support: Yes
Streaming method: Multicast
Number of users: 20 user(s)
System requirements
Mobile operating systems supported: Android, iOS
Certification: CE-LVD:EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Performance
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired

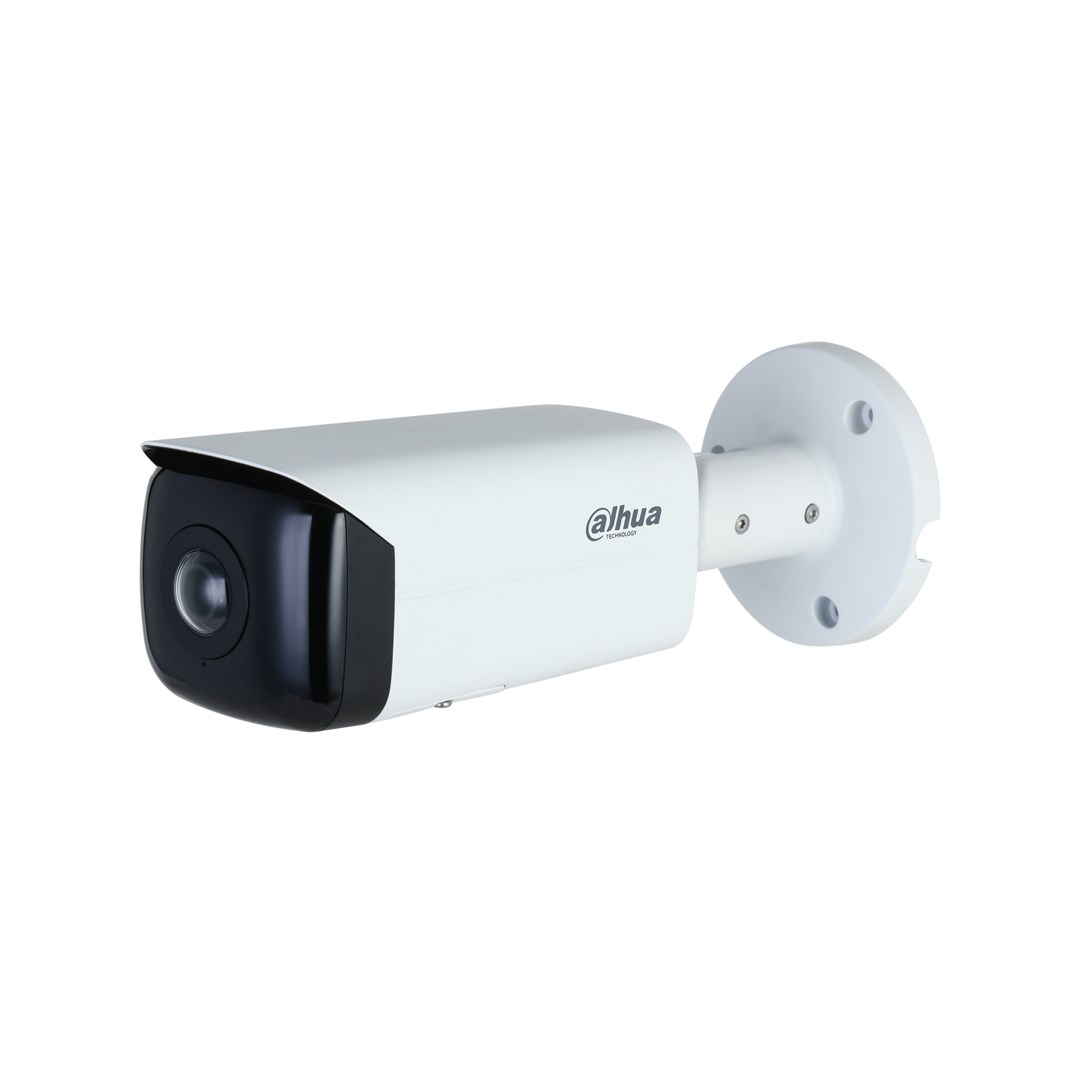

Type: IP security camera
Placement supported: Indoor & outdoor
Day/night mode: Yes
Alarm input/output: Yes
Dynamic range: 120 dB
Packaging data
Package weight: 1.09 kg
Packaging content
Number of cameras: 1
Audio
Built-in microphone: Yes
Audio output channels: 1.0 channels
Audio formats supported: G.711 A-law, G.726
Audio input channels: 1.0 channels
Signal-to-Noise Ratio (SNR): 56 dB
Storage
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 128 MB
ROM capacity: 512 MB
Maximum memory card size: 256 GB
Built-in HDD: No
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Pan range: 0 - 360°
Lens viewing angle, vertical: 75°
Adjustment shutter speed: Auto/Manual
White balance: Street lamp, Outdoor, Auto, Manual, Natural
Angle of rotation: 360°
Lens viewing angle, diagonal: 175°
Minimum illumination: 0 lx
Camera shutter type: Electronic
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, horizontal: 170°
Tilt angle range: 0 - 90°
Number of Privacy masking areas: 4
Image sensor
Number of sensors: 1
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Video
Maximum resolution: 2688 x 1520 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080), 704 x 480, 352 x 240, 2304 x 1296, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 2688 x 1512, 704 x 576, 1280 x 960
Bit rate: 3 Kbp - 8192Kbps
Frame rate: 30 fps
Total megapixels: 4 MP
Video formats supported: H.265+, H.264, H.265
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Noise reduction technology: 3D noise reduction
Smart IR: Yes
Video streaming: Yes
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Privacy masking: Yes
Gain control type: Auto/Manual
Region of Interest (ROI) encoding: Yes
Night vision
Number of illumination LEDs: 2
LED type: IR
Night vision distance: 20 m
Night vision: Yes
Lens system
Focal length range: 2.1 mm
Detect distance (wide): 52 m
Maximum aperture number: 2
Closest focusing distance: 0.6 m
Identify distance (wide): 5.2 m
Observe distance (wide): 20.8 m
Recognize distance (wide): 10.4 m
Number of lenses: 1
