Design
International Protection (IP) code: IP66
IK code: IK10
Fog proof: Yes
Mounting type: Ceiling/Wall/Pole
Product colour: White
Form factor: Dome
Power
Power consumption (typical): 2.7 W
DC output current: 1 A
Power source type: DC, PoE
Power consumption (max): 4.8 W
DC output voltage: 12
Security
Intelligent Video Surveillance (IVS) system features: Crossing line, Vehicle detection, Intrusion, Face detection, Tripwire, Moving object, Abandoned object, Missing object
Video motion detection: Yes
Active tampering alarm: Yes
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Management features
Web browser: Yes
Web-based management: Yes
Weight & dimensions
Height: 89 mm
Diameter: 12.2 cm
Weight: 500 g
Network
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi: Yes
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Streaming method: Unicast, Multicast
Bluetooth: No
Number of users: 20 user(s)
Wi-Fi data rate (max): 150 Mbit/s
Quality of Service (QoS) support: Yes
Performance
PTZ control: Yes
PTZ modes: 5 Pattern, 8 Tour
PTZ protocols: Pelco-P/D
Preset points: Yes
Placement supported: Outdoor
Day/night mode: Yes
Tour recording: Yes

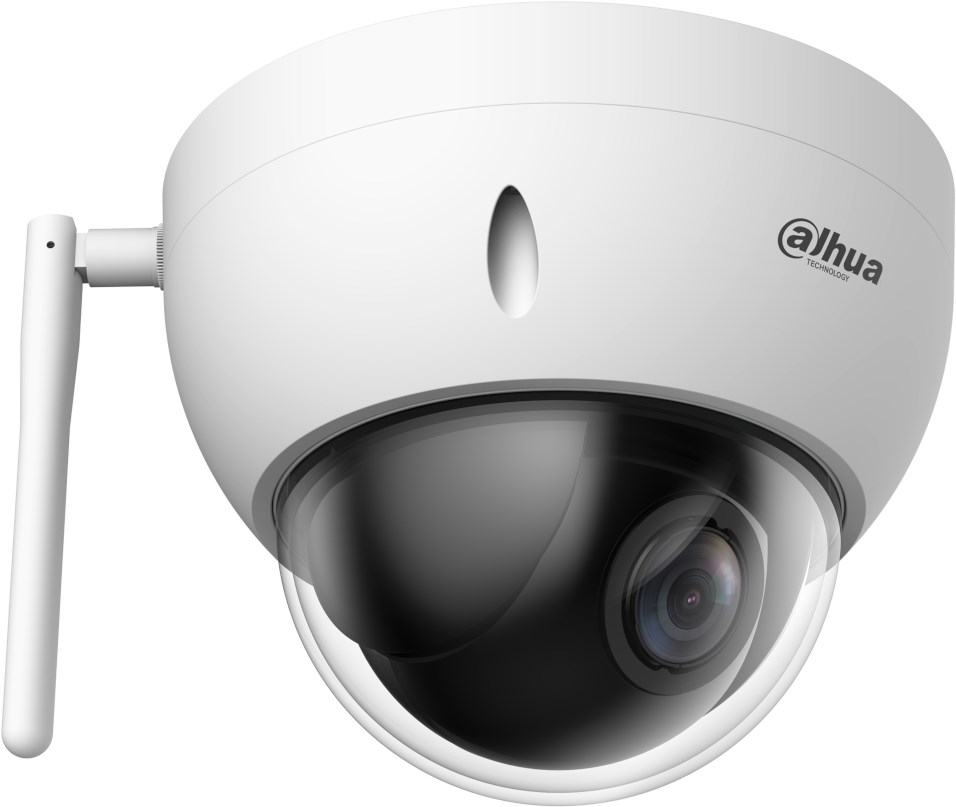

Type: IP security camera
Connectivity technology: Wired & Wireless
Packaging data
Package weight: 700 g
Packaging content
Number of cameras: 1
Audio
Signal-to-Noise Ratio (SNR): 55 dB
Storage
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No
Maximum memory card size: 512 GB
Card reader integrated: Yes
ROM capacity: 128 MB
RAM capacity: 512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Tilt manual speed: 0.1 - 60 °/sec
Pan preset speed: 100 °/sec
Minimum illumination: 0.0005 lx
Lens viewing angle, diagonal: 105.7 - 33.6°
Lens viewing angle, horizontal: 90.3 - 29.4°
Pan manual speed: 0.1 - 100 °/sec
Lens viewing angle, vertical: 48.5 - 16.6°
White balance: ATW, Outdoor, Street lamp, Indoor, Auto, Natural, Manual, Sodium lamp
Pan range: 0 - 355°
Tilt preset speed: 60 °/sec
Camera shutter speed: 1 - 1/30000 s
Camera pan control: Yes
Camera tilt control: Yes
Tilt angle range: 0 - 90°
Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS
Video
Noise reduction: Yes
Highlight Compensation (HLC): Yes
Total megapixels: 4 MP
Bit rate: H.264: 2816Kbps – 13056Kbps; H.265: 1024Kbps – 7936Kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Back Light Compensation (BLC): Yes
Region of Interest (ROI) encoding: Yes
Digital Wide Dynamic Range (DWDR): Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto/Manual
Video compression formats: H.265, H.264+, H.264B, H.264H, H.265+, H.264, M-JPEG
Video streaming: Yes
Supported graphics resolutions: 1920 x 1080 (HD 1080), 640 x 480 (VGA), 2304 x 1296, 2560 x 1440, 704 x 576, 1280 x 960, 1280 x 720 (HD 720), 352 x 288
Maximum resolution: 2560 x 1440 pixels
Image stabilizer: Yes
Night vision
LED type: IR
Night vision: Yes
Lens system
Maximum aperture number: 3
Focal length range: 2.8 - 12 mm
Optical zoom: 4x
Digital zoom: 16x
Observe distance: 94.8 m
Zoom capability: Yes
Recognize distance: 48 m
Minimum aperture number: 1.6
Detect distance: 240 m
Auto focus: Yes
Closest focusing distance: 1.5 m
Number of lenses: 1
Identify distance: 24 m
