Design
Form factor: Bulb
IK code: IK10
International Protection (IP) code: IP67
Mounting type: Ceiling
Product colour: White
Power
DC output voltage: 24
DC output current: 2.5 A
Power source type: DC
Security
Intelligent Video Surveillance (IVS) system features: Face detection, Tripwire, Abandoned object, Intrusion, Vehicle detection
Video motion detection: Yes
Network access storage (NAS): Yes
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -40 - 60 °C
Management features
Web browser: Yes
Management software: DMSS; DSS Pro
Weight & dimensions
Height: 253 mm
Width: 186.2 mm
Weight: 2.5 kg
Network
Wi-Fi: No
Ethernet LAN: Yes
Streaming method: Multicast, Unicast
Number of users: 20 user(s)
Bluetooth: No
System requirements
Mobile operating systems supported: iOS, Android
Certification: CE-EMC: EN 55032; EN 61000-3-3;
EN 61000-3-2; EN 50130-4; EN 55035
CE-LVD: EN 62368-1
FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4
Performance
PTZ modes: 4 Pattern, 8 Tour
Wide Dynamic Range (WDR): Yes
PTZ protocols: DH-SD, Pelco-P/D
Alarm input/output: Yes
Connectivity technology: Wired
Placement supported: Indoor & outdoor
Day/night mode: Yes

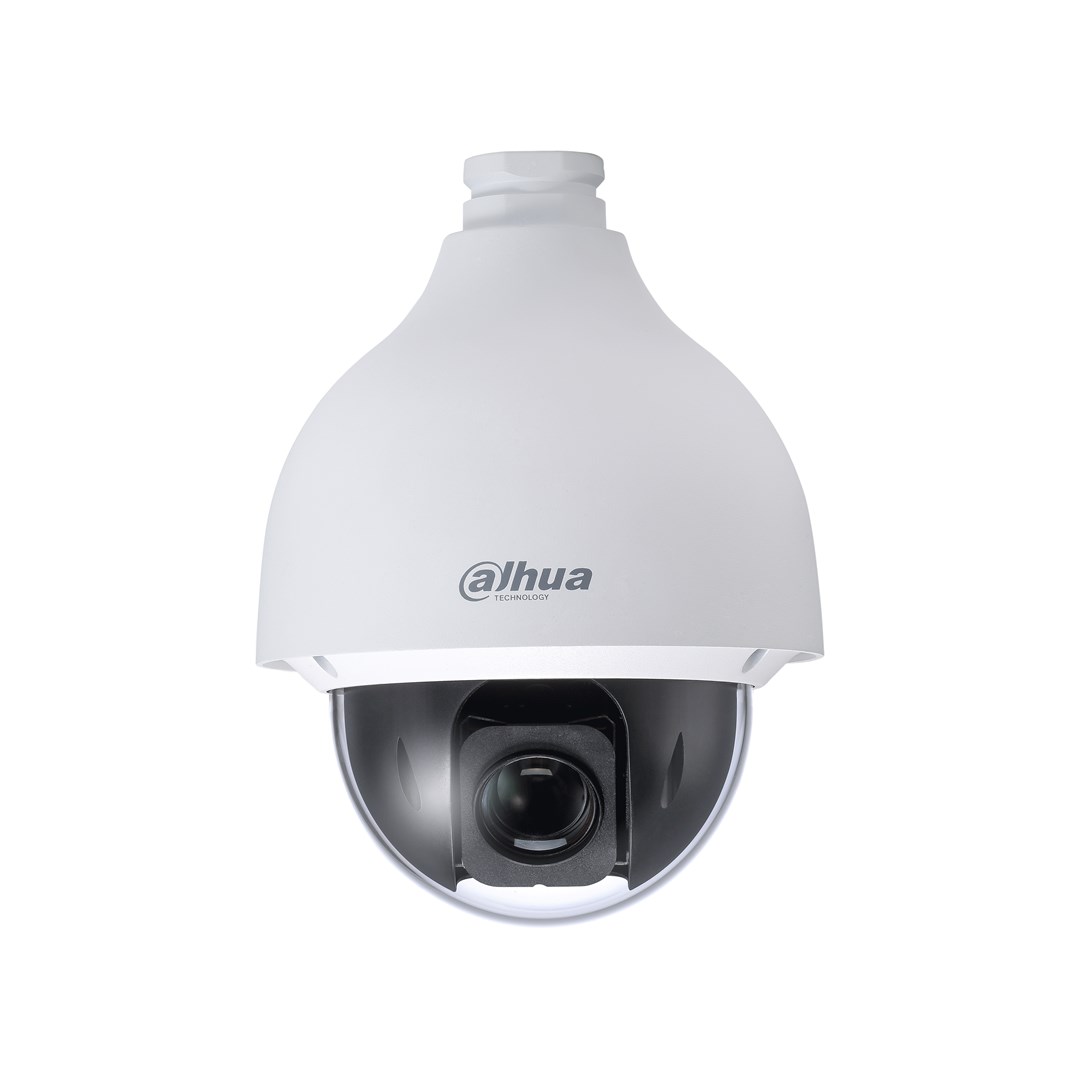

Type: IP security camera
Dynamic range: 120 dB
Tour recording: Yes
Packaging data
Package weight: 4.5 kg
Packaging content
Mounting kit: Yes
Number of cameras: 1
Mounting brackets included: Yes
Audio
Audio formats supported: G.722.1, G.711 A-law, G.711 μ-law, PCM, G.726, G.723
Audio input channels: 1.0 channels
Signal-to-Noise Ratio (SNR): 55 dB
Audio output channels: 1.0 channels
Storage
Internal memory: 512 MB
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No
Maximum memory card size: 512 GB
ROM capacity: 128 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Camera shutter type: Electronic
Camera shutter speed: 1/1 - 1/30000 s
Angle of rotation: 180°
Minimum illumination: 0.0005 lx
Pan range: 0 - 360°
Tilt preset speed: 500 °/sec
Tilt speed: 250 °/sec
Pan preset speed: 500 °/sec
White balance: Indoor, Natural, Outdoor, Auto, Street lamp, Manual, Sodium lamp
Pan speed: 350 °/sec
Number of Privacy masking areas: 24
Tilt angle range: 0 - 90°
Lens viewing angle, diagonal: 67.5 - 3.2°
Lens viewing angle, horizontal: 58.5 - 2.8°
Camera pan control: Yes
Lens viewing angle, vertical: 33.2 - 1.5°
Camera tilt control: Yes
Image sensor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS
Video
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: H.264: 2048 Kbps–8192 Kbps; H.265: 768 Kbps–6400 Kbps
Region of Interest (ROI) encoding: Yes
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Frame rate: 30 fps
Flip & mirror: Yes
Noise reduction: Yes
Total megapixels: 2 MP
Noise reduction technology: 2D noise reduction, 3D noise reduction
Supported video modes: 1080p, 720p
Video compression formats: H.265+, H.265, H.264, H.264B, H.264H
Video streaming: Yes
Gain control type: Auto/Manual
Maximum resolution: 1920 x 1080 pixels
Supported graphics resolutions: 704 x 576, 1280 x 960, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 352 x 288, 640 x 480 (VGA)
Night vision
Night vision: No
Lens system
Detect distance: 1655.2 m
Focal length range: 4.8 - 120 mm
Optical zoom: 25x
Digital zoom: 16x
Recognize distance: 331 m
Focus: Manual
Observe distance: 653.8 m
Closest focusing distance: 1 m
Identify distance: 165.5 m
Auto focus: Yes
Number of lenses: 1
Focus adjustment: 1.6 - 3.5
