Technical details
Compliance certificates: RoHS
Power
Input voltage: 4.5 - 14 V
Power source type: DC
Power consumption: 300 mA
Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
Depth: 109 mm
Weight: 161 g
Width: 68 mm
Height: 166 mm
Certification: IEC 60825 Class 2
Performance
Protection features: Shock resistant
Built-in display: No
Product colour: Black
International Protection (IP) code: IP52
Image formats supported: BMP, JPEG
Ports & interfaces
Standard interfaces: RS-232, USB, Keyboard wedge
Connectivity technology: Wired
Logistics data
Harmonized System (HS) code: 84716070
Scanning

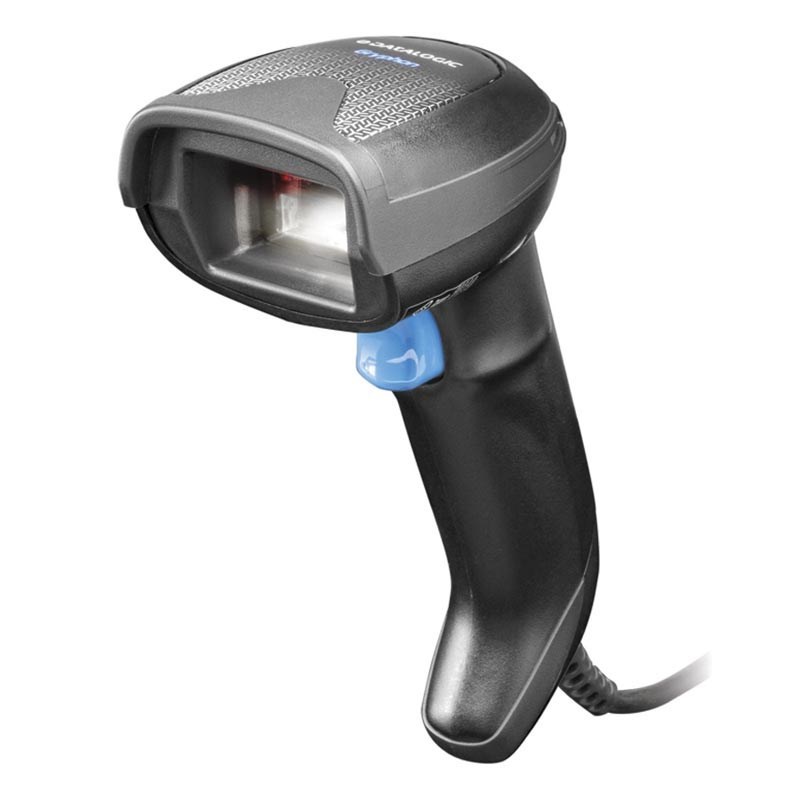

Type: Handheld bar code reader
Pitch reading angle: -65 - 65°
2D (matrix & stacked) barcodes supported: MaxiCode, Data Matrix, Aztec Code, MicroPDF417, PDF417, Han Xin, QR Code, Micro QR Code
Yaw reading angle: -65 - 65°
Linear (1D) barcodes supported: PDF417, Code 39, Planet, EAN-13, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, JAN, POSTNET
Light levels (direct sunlight): 0 - 100000 lx
Scanner type: 1D/2D
Wavelength: 650 nm
Optical sensor resolution (W x H): 1280 x 800 pixels
Tilt reading angle: 0 - 360°
Motion tolerance (cm/s): 88.9
