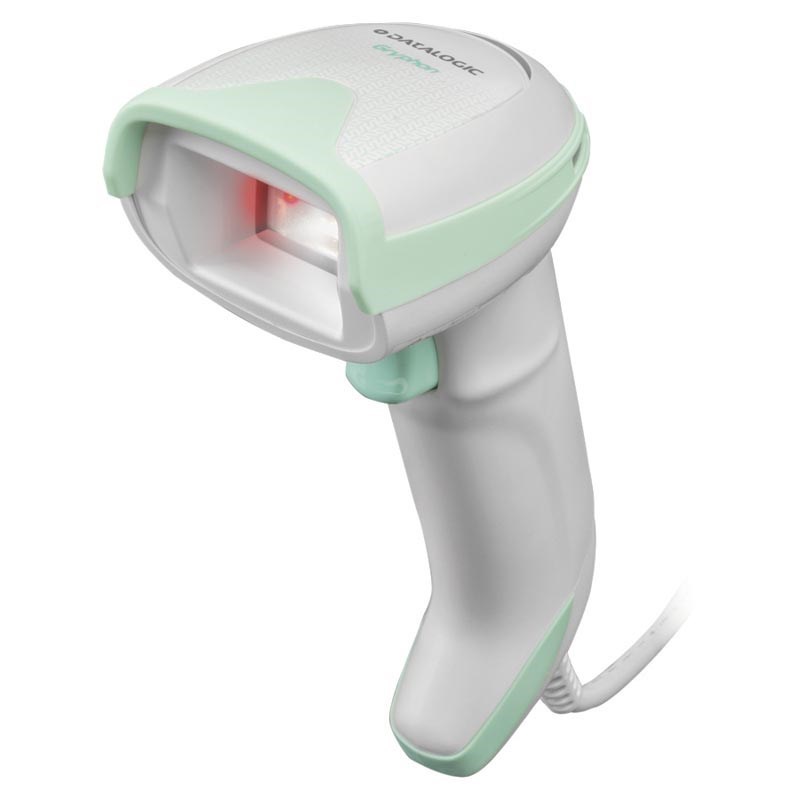

Datalogic Gryphon I GD4520 Handheld bar code reader 1D /2D White

Technical details
Compliance certificates: RoHS

Power
Input voltage: 5 V
Power consumption: 300 mA
Power source type: DC

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions
Depth: 109 mm
Height: 166 mm
Width: 68 mm
Weight: 161 g
Certification: IEC 60825 Class 2

Performance
Image formats supported: TIFF, BMP, JPEG
Product colour: White
Protection features: Shock resistant
Built-in display: No
International Protection (IP) code: IP52

Packaging data
Cables included: USB

Ports & interfaces
Standard interfaces: USB
Connectivity technology: Wired

Logistics data
Harmonized System (HS) code: 84716070

Scanning
Optical sensor resolution (W x H): 1280 x 800 pixels
Scanner type: 1D/2D
Motion tolerance (cm/s): 88.9
Pitch reading angle: -65 - 65°
Light levels (direct sunlight): 0 - 100000 lx
2D (matrix & stacked) barcodes supported: MaxiCode, Data Matrix, Micro QR Code, Han Xin, QR Code, Aztec Code
Type: Handheld bar code reader
Wavelength: 650 nm
Tilt reading angle: 0 - 360°
