Technical details
Compliance certificates: RoHS
Power
Battery voltage: 12 V
Number of reads per charge: 80000
Input voltage: 4.5 - 14 V
Power source type: Battery
Charging time: 4 h
Battery capacity: 3250 mAh
Battery technology: Lithium-Ion (Li-Ion)
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Weight & dimensions
Width: 109 mm
Weight: 235 g
Depth: 68 mm
Height: 166 mm
Performance
Product colour: Black
International Protection (IP) code: IP52
Packaging data
Charging base: Yes
Cables included: USB
Ports & interfaces
Standard interfaces: RF Wireless, USB
Connectivity technology: Wired & Wireless
Wireless range: 50 m
Operating frequency: 433 MHz
Logistics data
Harmonized System (HS) code: 84716070
Scanning
Optical sensor resolution (W x H): 1280 x 800 pixels
Wavelength: 650 nm
2D (matrix & stacked) barcodes supported: QR Code, Data Matrix, GS1 DataBar Expanded Stacked, MaxiCode, GS1 DataBar Stacked Omnidirectional, Micro QR Code, Aztec Code, MicroPDF417

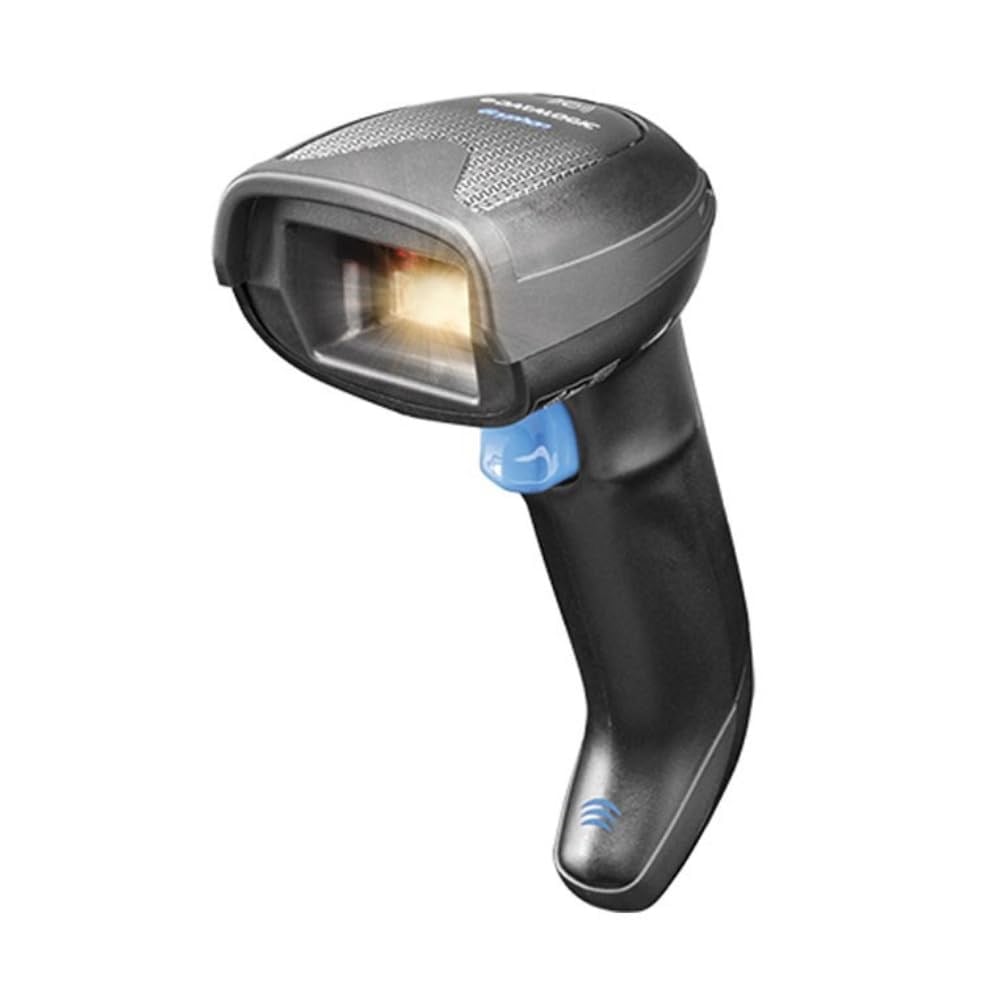

Type: Handheld bar code reader
Yaw reading angle: -65 - 65°
Sensor type: Laser
Linear (1D) barcodes supported: U.P.C., Code 39, PDF417, GS1 DataBar Expanded, EAN-13, GS1 DataBar Omnidirectional
Scanner type: 1D/2D
Light levels (direct sunlight): 0 - 100000 lx
Tilt reading angle: 0 - 360°
Pitch reading angle: -65 - 65°
