Technical details
Sustainability certificates: ErP, Triman
Sustainability compliance: Yes
Design

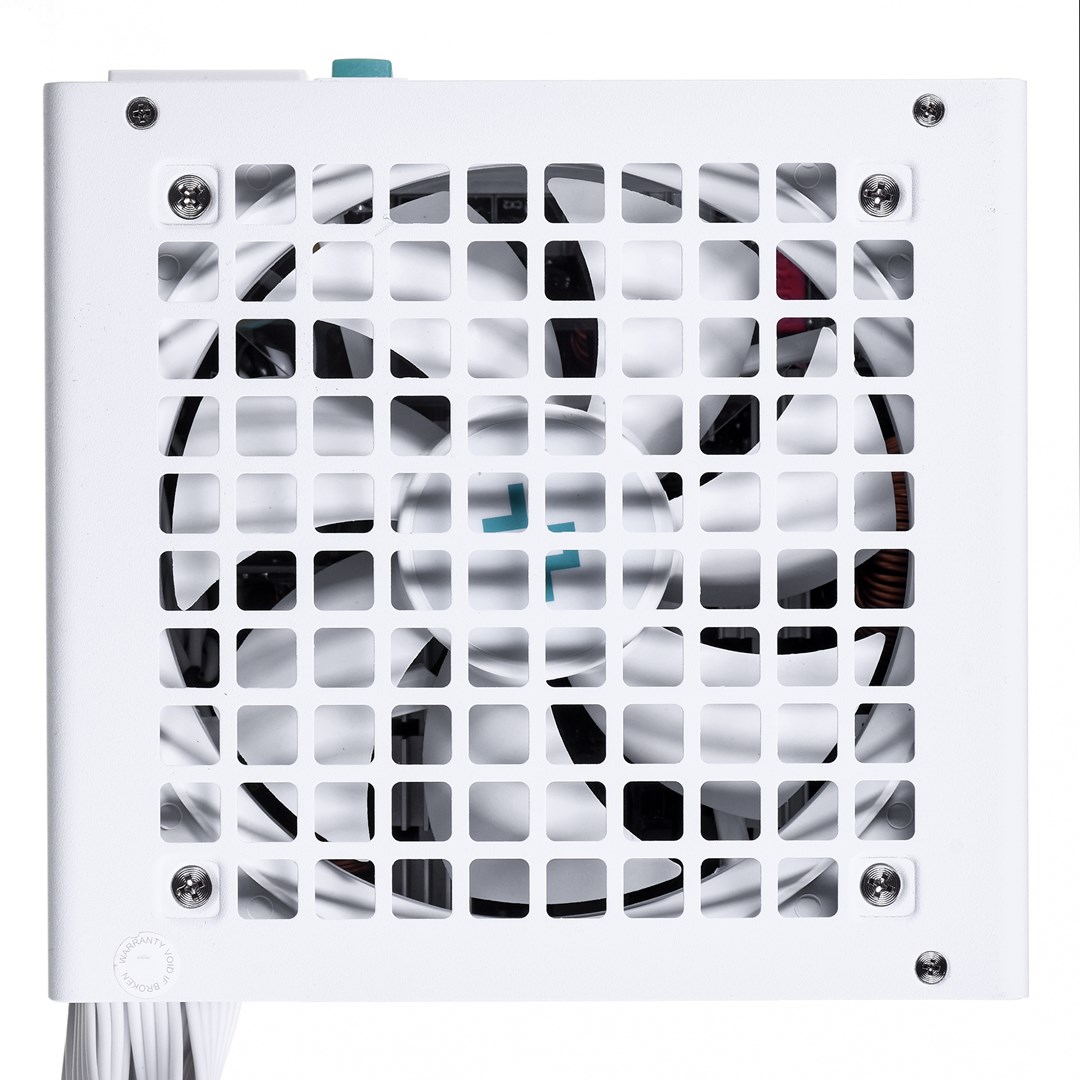

Fan location: Top
On/off switch: Yes
Cooling type: Active
Product colour: White
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Power
Combined power (+12V): 648 W
AC input voltage: 100 - 240 V
Power protection features: Under voltage, Over current, Surge & inrush protection (SIP), No load operation, Over power, Over voltage, Overheating, Surge protection
Total power: 650 W
Combined power (-12V): 3.6 W
AC input frequency: 50/60 Hz
Combined power (+5V): 100 W
Hold time: 16 ms
Max output current (+12V): 54 A
Input current: 9 - 4.5 A
Combined power (+5Vsb): 15 W
Efficiency: 85%
Max output current (+5V): 20 A
Max output current (+3.3V): 20 A
Combined power (+3.3V): 100 W
Power Good signal delay range: 100 - 150 ms
Power Factor Correction (PFC) type: Active
Max output current (+5Vsb): 3 A
Max output current (-12V): 0.3 A
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
Width: 150 mm
Height: 86 mm
Depth: 140 mm
Performance
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Bearing technology: HYB
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Packaging data
Package type: Box
Certification: CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Certificates
Compliance certificates: RoHS, WEEE
Ports & interfaces
PCI Express power connectors (16-pin): 1
Peripheral (Molex) power connectors (4-pin): 2
SATA power cable length: 550, 650, 450
Motherboard power cable length: 55 cm
PCI Express power connectors (6+2 pin): 3
ATX power connector (20+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
CPU power connector (4+4 pin): Yes
Cabling type: Non-Modular
Number of SATA power connectors: 6
