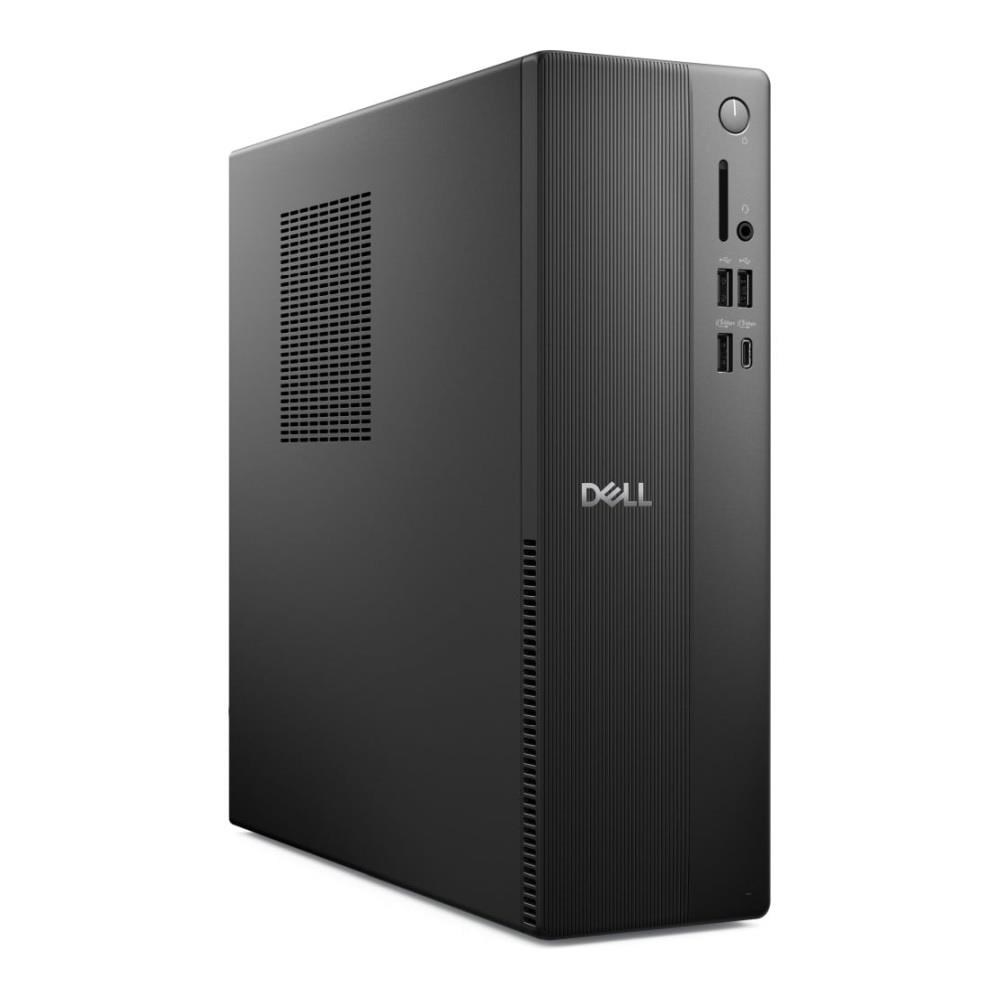

DELL ECS1250 Intel® Core™ i5 i5-14400 16 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Slim PC PC Black

Processor
Processor model: i5-14400
Processor family: Intel® Core™ i5
Processor manufacturer: Intel
Processor threads: 16
Processor cache type: Smart Cache
Processor cache: 20 MB
Number of processors installed: 1
Processor boost frequency: 4.7 GHz
Maximum turbo power: 148 W
Processor cores: 10
Performance-core Max Turbo Frequency: 4.7 GHz
Efficient-core base frequency: 1.8 GHz
Efficient-core Max Turbo Frequency: 3.5 GHz
Processor generation: Intel® Core™ i5 (14th gen)
Performance cores: 6
Efficient cores: 4
Performance-core base frequency: 2.5 GHz
Processor base power: 65 W

Graphics
On-board graphics card: Yes
Discrete graphics card model: Not available
Discrete graphics card: No
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel UHD Graphics 730
On-board GPU manufacturer: Intel

Memory
Maximum internal memory: 64 GB
Memory layout (slots x size): 1 x 16 GB
Memory channels: Single-channel
Memory data transfer rate: 4800 MT/s
Internal memory: 16 GB
Memory slots: 2x DIMM
Internal memory type: DDR5-SDRAM

Design
Cable lock slot: Yes
Product colour: Black
Chassis type: Slim PC
Cable lock slot type: Kensington

Power
80 PLUS certification: 80 PLUS Bronze
Power supply: 180 W
Power supply input voltage: 90 - 264 V
Power supply input frequency: 47/63 Hz

Operational conditions
Operating shock: 40 G
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 10 - 35 °C
Non-operating altitude: -15.2 - 10668 m
Storage temperature (T-T): -40 - 65 °C
Operating altitude: -15.2 - 3048 m
Operating relative humidity (H-H): 20 - 80%
Operating vibration: 0.26 G
Non-operating vibration: 1.37 G
Non-operating shock: 105 G

Weight & dimensions
Height: 303.5 mm
Weight: 4.75 kg
Width: 95 mm
Depth: 293 mm

Network
Ethernet LAN data rates: 1000, 10, 100
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11b, 802.11g, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN controller model: MediaTek MT7920
MU-MIMO: Yes
Bluetooth: Yes
Antenna type: 2x2
Ethernet LAN: Yes
Wi-Fi: Yes
Cabling technology: 10/100/1000Base-T(X)
WLAN controller manufacturer: MediaTek

Performance
Product type: PC
Motherboard chipset: Intel SoC
Trusted Platform Module (TPM) version: 2.0
Trusted Platform Module (TPM): Yes

Packaging content
Mouse included on selected markets: Dell Wired Mouse - MS116 - Black
Keyboard included on selected markets: Dell Wired Keyboard - KB216 - UK (QWERTY) - Black

Display
Display included: No

Software
Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro
Trial software: McAfee LiveSafe 1Yr,Microsoft Office Trial

Audio
Audio system: High Definition Audio
Audio chip: Realtek ALC3204

Storage
Optical drive type: No
Total storage capacity: 1 TB
Total SSDs capacity: 1 TB
SSD form factor: M.2
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
NVMe: Yes
Number of storage drives installed: 1
Number of SSDs installed: 1
Storage media: SSD

Ports & interfaces
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Combo headphone/mic port: Yes

Carbon footprint
Carbon emissions, logistics (kg of CO2e): 9.18
Carbon emissions, energy usage (kg of CO2e): 62.75
Carbon emissions, end-of-life (kg of CO2e): 2.96
Total carbon footprint (kg of CO2e): 148
Carbon emissions, manufacturing (kg of CO2e): 73.26
PAIA version: GaBi version 1, 2024
