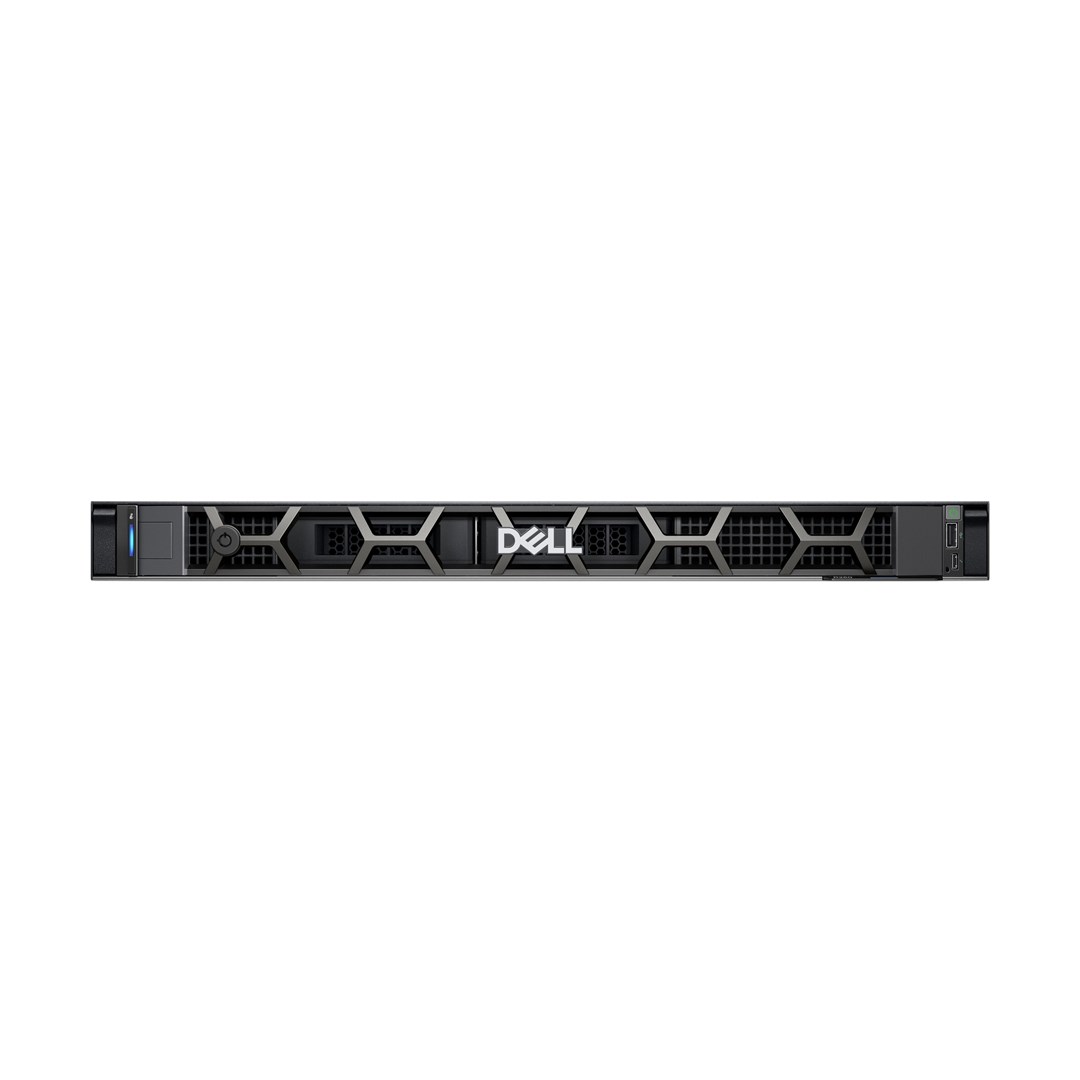

DELL PowerEdge R260 server 2.4 TB Rack (1U) Intel Xeon 6 6315P 2.8 GHz 16 GB DDR5-SDRAM 700 W

Processor
Processor family: Intel Xeon 6
Thermal Design Power (TDP): 55 W
Processor cores: 4
Processor model: 6315P
System bus rate: 16 GT/s
Processor cache: 12 MB
Memory clock speeds supported by processor: 4800 MHz
Processor threads: 4
Number of processors installed: 1
Processor manufacturer: Intel
Processor frequency: 2.8 GHz
Processor boost frequency: 5.2 GHz
Performance cores: 4
Memory types supported by processor: DDR5-SDRAM

Memory
Maximum internal memory: 128 GB
Internal memory: 16 GB
ECC: Yes
Internal memory type: DDR5-SDRAM
Memory data transfer rate: 5600 MT/s
Memory slots: 4x DIMM
Memory layout (slots x size): 1 x 16 GB
Buffered memory type: Unregistered (unbuffered)

Design
Chassis type: Rack (1U)
Product colour: Black
Bezel: Yes

Power
Power supply: 700 W
Redundant power supply (RPS) support: No
Power supply input voltage: 200 - 240 V
Number of main power supplies: 1

Operational conditions
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 65 °C
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12000 m

Weight & dimensions
Height: 42.8 mm
Width: 482 mm

Network
Ethernet LAN: Yes
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet
LAN controller: Broadcom 5720

Performance
Trusted Platform Module (TPM): Yes
Remote administration: iDRAC9, Enterprise 16G
Compatible operating systems: Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi

Software
Operating system installed: No

Certificates
80 PLUS certification: 80 PLUS Titanium

Storage
RAID support: No
HDD interface: Serial Attached SCSI (SAS)
HDD capacity: 1.2 TB
Optical drive type: No
Number of HDDs supported: 6
Number of HDDs installed: 2
Total storage capacity: 2.4 TB
Supported RAID controllers: PERC H355 Adapter LP
HDD size: 2.5"
Supported HDD sizes: 2.5"
HDD speed: 10000 RPM
Hot-Plug support: Yes

Ports & interfaces
Serial ports quantity: 1
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2

Other features
Data transfer rate: 12 Gbit/s
Bytes per sector: 512n

Carbon footprint
Carbon emissions, logistics (kg of CO2e): 95
Total carbon emissions, standard deviation (kg of CO2e): 711
Total carbon footprint (kg of CO2e): 950
Carbon emissions, energy usage (kg of CO2e): 541.5
Carbon emissions, end-of-life (kg of CO2e): 9.5
PAIA version: 1.3.2, 2024
Carbon emissions, manufacturing (kg of CO2e): 304
