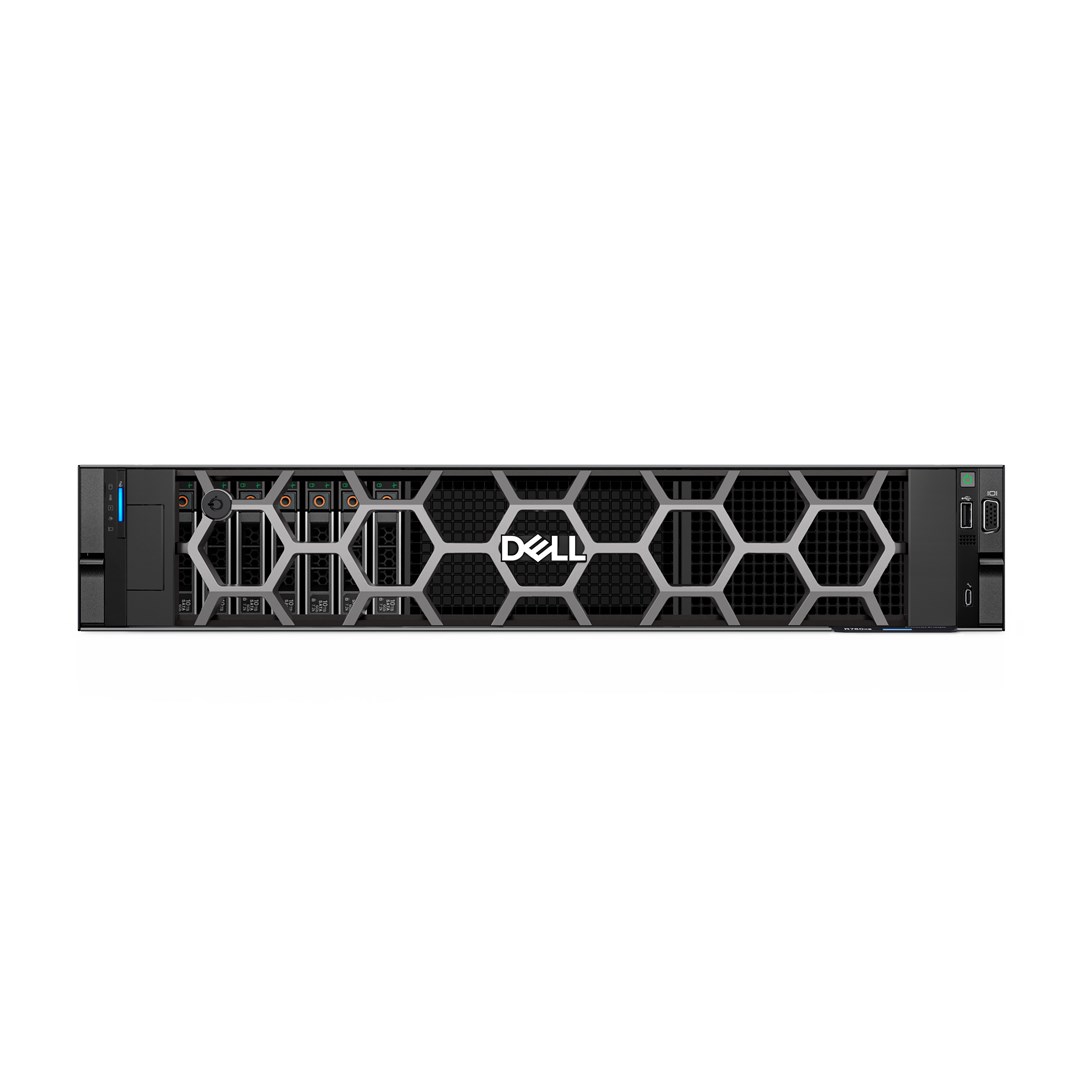

DELL PowerEdge R760XS server 960 GB Rack (2U) Intel Xeon Silver 4514Y 2 GHz 64 GB DDR5-SDRAM 1100 W

Technical details
Supported RAID configuration: Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)

Processor
Processor family: Intel Xeon Silver
System bus rate: 16 GT/s
Processor cores: 16
Processor frequency: 2 GHz
Processor cache: 30 MB
Processor boost frequency: 3.4 GHz
Processor model: 4514Y
Processor threads: 32
Motherboard chipset: Intel C741
Processor manufacturer: Intel
Number of processors installed: 1
Memory types supported by processor: DDR5-SDRAM
Memory clock speeds supported by processor: 4400 MHz
Thermal Design Power (TDP): 150 W

Memory
Maximum internal memory: 1 TB
Internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 32 GB
Memory slots: 16x DIMM
Memory data transfer rate: 5600 MT/s
Memory ranking: 2
Buffered memory type: Registered (buffered)

Design
Product colour: Black
Chassis type: Rack (2U)
Bezel: Yes
Rack rails: Yes

Power
Redundant power supply (RPS) support: Yes
Power supply: 1100 W
Number of redundant power supplies installed: 2
Power supply input voltage: 100-240 V

Operational conditions
Storage temperature (T-T): -40 - 65 °C
Operating altitude: 0 - 3048 m
Storage relative humidity (H-H): 5 - 95%
Non-operating altitude: 0 - 12000 m

Weight & dimensions
Width: 482 mm
Height: 86.8 mm

Network
LAN controller: Broadcom 5720
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Cabling technology: 10/100/1000Base-T(X)

Performance
Remote administration: iDRAC9, Enterprise 16G

Expansion slots
PCI Express x16 slots: 1
PCI Express x8 slots: 1
Compatible operating systems: Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi

Software
Operating system installed: No

Certificates
80 PLUS certification: 80 PLUS Titanium

Storage
Optical drive type: No
Storage drive adapter type: 2.5" - 3.5"
Total storage capacity: 960 GB
Number of SSDs installed: 2
SSD interface: SATA III
SSD capacity: 480 GB
Storage drive adapter included: Yes
Supported RAID controllers: Front PERC H755 Front Load
Supported SSD sizes: 3.5"
Hot-Plug support: Yes
Number of SSDs supported: 8
SSD size: 2.5"

Ports & interfaces
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
VGA (D-Sub) ports quantity: 2

Other features
Data transfer rate: 6 Gbit/s
Target workload: Read Intensive (RI)
Bytes per sector: 512
Open Compute Project (OCP): NIC 3.0

Carbon footprint
Total carbon emissions, standard deviation (kg of CO2e): 3747
PAIA version: PAIA 1.3.2, 2022
Carbon emissions, manufacturing (kg of CO2e): 465.78
Carbon emissions, energy usage (kg of CO2e): 6055.14
Total carbon footprint (kg of CO2e): 6654
Carbon emissions, logistics (kg of CO2e): 133.08
