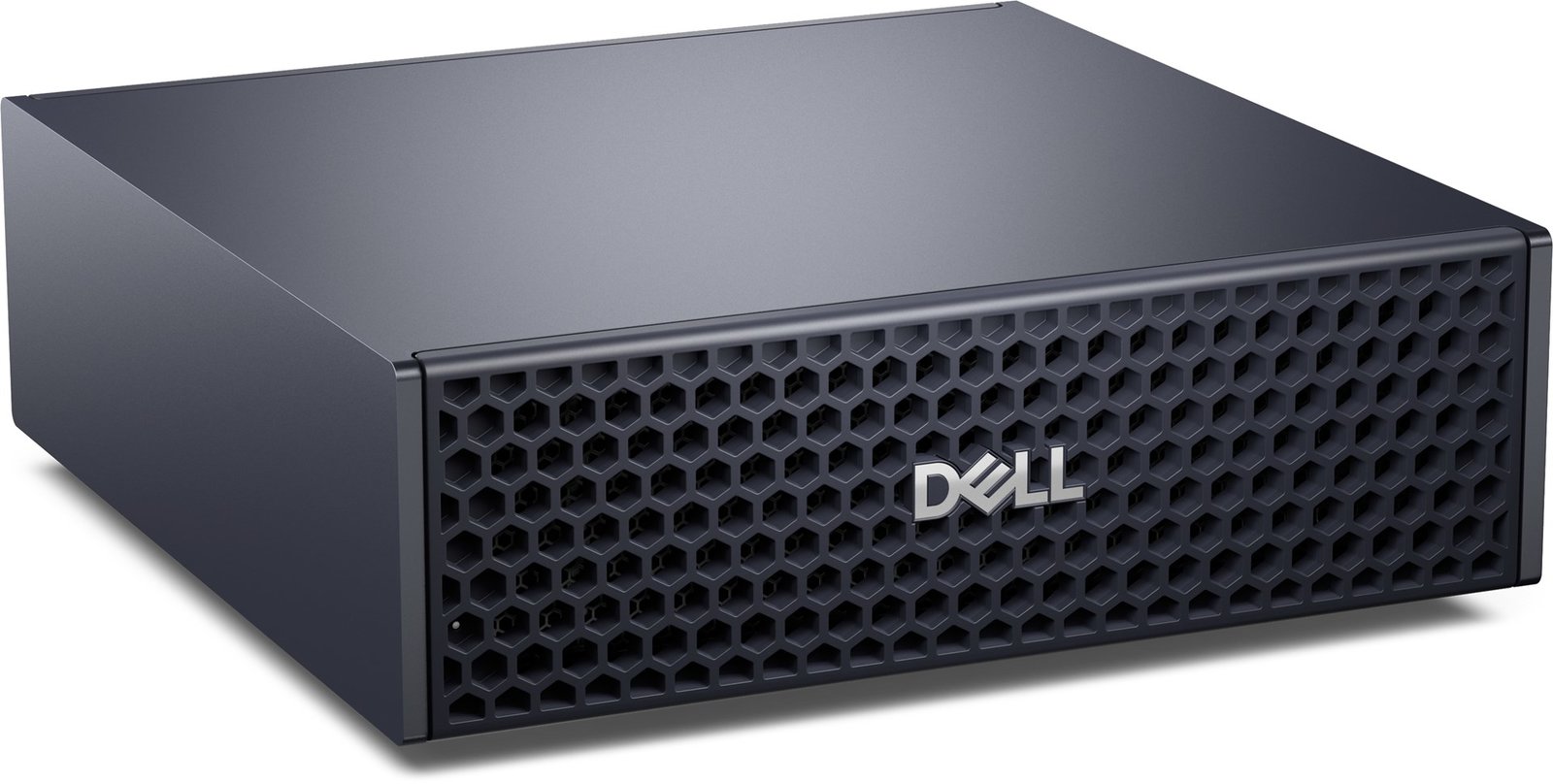

DELL Pro Max GB10 FCM1253 128 GB LPDDR5x-SDRAM 2 TB SSD DGX OS Mini PC Black

Processor
Processor cores: 20
Processor cache: 16 MB
Processor manufacturer: Nvidia
Processor model: GB10

Graphics
On-board graphics card model: NVIDIA Blackwell
Discrete graphics card model: Not available
Discrete graphics card: No
On-board GPU manufacturer: NVIDIA
On-board graphics card: Yes

Memory
Maximum internal memory: 128 GB
Internal memory: 128 GB
Memory data transfer rate: 8533 MT/s
Internal memory type: LPDDR5x-SDRAM

Design
Product colour: Black

Power
Power supply input voltage: 100 - 240 V
Power supply: 280 W

Operational conditions
Operating altitude: -15.2 - 3048 m
Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating shock: 110 G
Non-operating shock: 160 G
Non-operating vibration: 1.3 G
Operating vibration: 0.66 G
Non-operating altitude: -15.2 - 10668 m
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions
Weight: 1.34 kg
Depth: 150 mm
Height: 51 mm
Width: 150 mm

Network
LAN controller: NVIDIA ConnectX-7
Bluetooth: Yes
Ethernet LAN data rates: 10, 10000 Mbit/s, 1000 Mbit/s, 100
Ethernet LAN: Yes
Wi-Fi standards: 802.11b, 802.11a, Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
WLAN controller manufacturer: AzureWare

Performance
Trusted Platform Module (TPM): Yes
Product type: Mini PC
Trusted Platform Module (TPM) version: 2.0

Display
Display included: No

Software
Operating system installed: DGX OS

Storage
Optical drive type: No
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
Number of SSDs installed: 1
Total storage capacity: 2 TB
Total SSDs capacity: 2 TB
Number of storage drives installed: 1
M.2 SSD size: 2230 (22 x 30 mm)
SSD capacity: 2 TB
Storage media: SSD

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB Type-C DisplayPort Alternate Mode: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 3
HDMI version: 2.1a

Other features
Doesn't contain: PVC/BFR

Carbon footprint
Total carbon footprint (kg of CO2e): 427
Carbon emissions, manufacturing (kg of CO2e): 258.762
Carbon emissions, end-of-life (kg of CO2e): 7.686
Total carbon emissions, standard deviation (kg of CO2e): 110
PAIA version: PAIA 1.5.1, 2025
Carbon emissions, logistics (kg of CO2e): 61.488
Carbon emissions, energy usage (kg of CO2e): 99.064

Neural processor unit (NPU)
NPU performance up to: 13 TOPs
