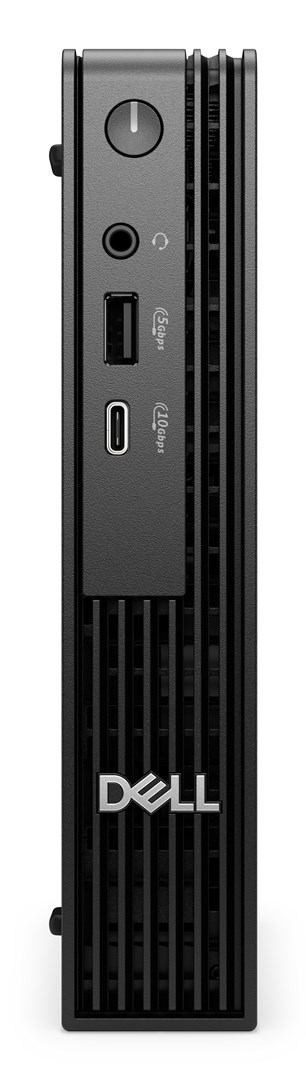

DELL Pro QCM1250 Intel® Core™ i7 i7-14700T 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Micro PC Mini PC Black

Processor
Processor cores: 20
Processor cache: 33 MB
Processor model: i7-14700T
Processor boost frequency: 5.2 GHz
Processor family: Intel® Core™ i7
Processor threads: 28
Processor cache type: Smart Cache
Processor manufacturer: Intel
Performance cores: 8
Processor base power: 35 W
Number of processors installed: 1
Efficient cores: 12
Processor generation: Intel® Core™ i7 (14th gen)
Efficient-core base frequency: 0.9 GHz
Efficient-core Max Turbo Frequency: 3.7 GHz
Performance-core base frequency: 1.3 GHz
Performance-core Max Turbo Frequency: 5 GHz
Maximum turbo power: 106 W

Graphics
On-board graphics card model: Intel UHD Graphics 770
Discrete graphics card model: Not available
On-board graphics card family: Intel® UHD Graphics
Discrete graphics card: No
On-board graphics card: Yes
On-board GPU manufacturer: Intel

Memory
Internal memory: 16 GB
Maximum internal memory: 64 GB
Memory channels: Single-channel
Internal memory type: DDR5-SDRAM
Non-ECC: Yes
Memory data transfer rate: 5600 MT/s
Memory slots: 2x SO-DIMM
Memory layout (slots x size): 1 x 16 GB

Design
Cable lock slot: Yes
Product colour: Black
Cable lock slot type: Kensington
Placement supported: Horizontal/Vertical
Intel® vPro™ Platform Eligibility: Yes
Chassis type: Micro PC

Power
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50 / 60 Hz
Power supply: 90 W

Operational conditions
Operating altitude: -15.2 - 3048 m
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 20 - 80%
Operating vibration: 0.26 G
Non-operating vibration: 1.37 G
Non-operating shock: 105 G
Operating shock: 40 G
Non-operating altitude: -15.2 - 10668 m

Weight & dimensions
Weight: 1.16 kg
Depth: 178 mm
Height: 182 mm
Width: 36 mm

Network
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN data rates: 1000, 10, 100
Antenna type: 2x2
LAN controller: Intel WGI219LM
Wi-Fi standards: Wi-Fi 6E (802.11ax), 802.11a, 802.11b, Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac)
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN: Yes
Wi-Fi: Yes
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 6E AX211
Antenna design: Internal

Performance
Motherboard chipset: Intel® Q870
Trusted Platform Module (TPM): Yes
Product type: Mini PC
Trusted Platform Module (TPM) version: 2.0
Market positioning: Business

Display
Display included: No

Software
Trial software: Activate Your Microsoft 365 For A 30 Day Trial
Operating system installed: Windows 11 Pro
Operating system architecture: 64-bit

Audio
Audio chip: Realtek ALC3204
Audio system: High Definition Audio

Storage
Total storage capacity: 512 GB
Optical drive type: No
Storage media: SSD
Number of storage drives installed: 1
SSD interface: PCI Express 4.0
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD form factor: M.2
Total SSDs capacity: 512 GB
SSD memory type: TLC
NVMe: Yes

Ports & interfaces
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
DisplayPorts quantity: 1
Combo headphone/mic port: Yes
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPort version: 1.4a
HDMI version: 2.1
Number of front USB ports: 2
Number of front audio ports: 1
Number of rear USB ports: 4

Sustainability
Sustainability certificates: EPEAT Gold, EPEAT Climate +, ENERGY STAR

Carbon footprint
Carbon emissions, energy usage (kg of CO2e): 33.45
Carbon emissions, end-of-life (kg of CO2e): 0.54
Carbon emissions, manufacturing (kg of CO2e): 41.52
PAIA version: GaBi version 1, 2024
Carbon emissions, logistics (kg of CO2e): 2.17
Total carbon footprint (kg of CO2e): 77.6

Neural processor unit (NPU)
AI software frameworks supported by NPU: ONNX RT, OpenVINO, Windows ML, WebNN, DirectML
