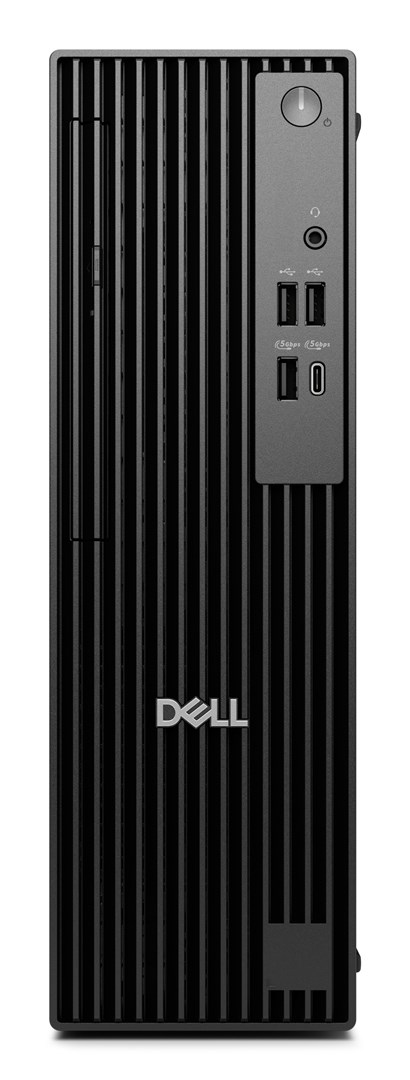

DELL QCS1250 U5-235 16GB 512GB SSD

Processor
Number of processors installed: 1
Efficient cores: 8
Processor generation: Intel Core Ultra (Series 2)
Performance cores: 6
Efficient-core base frequency: 2.9 GHz
Maximum turbo power: 121 W
Performance-core base frequency: 3.4 GHz
Processor base power: 65 W
Performance-core Max Turbo Frequency: 5 GHz
Efficient-core Max Turbo Frequency: 4.4 GHz
Processor model: 235
Processor boost frequency: 5 GHz
Processor threads: 14
Processor cache type: Smart Cache
Processor family: Intel Core Ultra 5
Processor cache: 24 MB
Processor cores: 14
Processor manufacturer: Intel

Graphics
On-board GPU manufacturer: Intel
Discrete graphics card: No
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Discrete graphics card model: Not available
On-board graphics card: Yes

Memory
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x DIMM
Memory data transfer rate: 5600 MT/s
Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Non-ECC: Yes
Memory channels: Single-channel

Design
Intel® vPro™ Platform Eligibility: Yes
Placement supported: Horizontal/Vertical
Chassis type: Slim PC
Cable lock slot type: Kensington
Product colour: Black
Cable lock slot: Yes

Power
Power supply input voltage: 90 - 264 V
Power supply input frequency: 47/63 Hz
Power supply: 180 W

Operational conditions
Operating vibration: 0.66 G
Non-operating shock: 160 G
Non-operating altitude: -15.2 - 10668 m
Operating shock: 110 G
Non-operating vibration: 1.3 G
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 0 - 95%
Operating altitude: -15.2 - 3048 m
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 65 °C

Weight & dimensions
Height: 303.5 mm
Depth: 293 mm
Weight: 5.89 kg
Width: 95 mm

Network
Cabling technology: 10/100/1000Base-T(X)
Antenna design: Internal
WLAN controller manufacturer: Intel
Wi-Fi: Yes
WLAN controller model: Intel Wi-Fi 6E AX211
Ethernet LAN: Yes
Ethernet LAN data rates: 1000, 10, 100 Mbit/s
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Antenna type: 2x2
LAN controller: Intel® I219-LM
Bluetooth: Yes
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n)

Performance
Market positioning: Business
Trusted Platform Module (TPM) version: 2.0
Product type: PC
Audio system: High Definition Audio
Trusted Platform Module (TPM): Yes
Audio chip: Realtek ALC3204

Packaging content
Cables included: AC

Expansion slots
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2

Display
Display included: No

Software
Operating system installed: Windows 11 Pro
Operating system architecture: 64-bit
Trial software: Activate Your Microsoft 365 For A 30 Day Trial

Storage
Number of SSDs installed: 1
SSD capacity: 512 GB
Number of storage drives installed: 1
SSD interface: PCI Express
NVMe: Yes
Total SSDs capacity: 512 GB
SSD form factor: M.2
Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No

Ports & interfaces
Number of front USB ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Number of rear USB ports: 4
Ethernet LAN (RJ-45) ports: 1
Number of SATA III connectors: 2
DisplayPorts quantity: 1
DC-in jack: Yes
USB 2.0 ports quantity: 4
Combo headphone/mic port: Yes
DisplayPort version: 1.4a
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI version: 2.1

Sustainability
Doesn't contain: PVC/BFR
Sustainability certificates: EPEAT Climate +, ENERGY STAR, EPEAT Gold

Carbon footprint
Carbon emissions, energy usage (kg of CO2e): 58.517
Total carbon footprint (kg of CO2e): 163
PAIA version: GaBi version 1, 2024
Carbon emissions, end-of-life (kg of CO2e): 3.42
Carbon emissions, logistics (kg of CO2e): 9.943
Carbon emissions, manufacturing (kg of CO2e): 91.117

Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
GPU performance up to: 6 TOPs
Total processor performance up to: 27 TOPs
Windows Studio effects support: Yes
NPU performance up to: 13 TOPs
AI software frameworks supported by NPU: ONNX RT, WebNN, DirectML, OpenVINO, Windows ML
Sparsity support: Yes
