Technical details
Country of origin: China
Package volume: 2384 cm³
Features
Supported video modes: 2160p, 480i, 480p, 1080p, 576p, 720p, 576i, 1080i
Wall mountable: Yes
Maximum resolution: 3840 x 2160 pixels

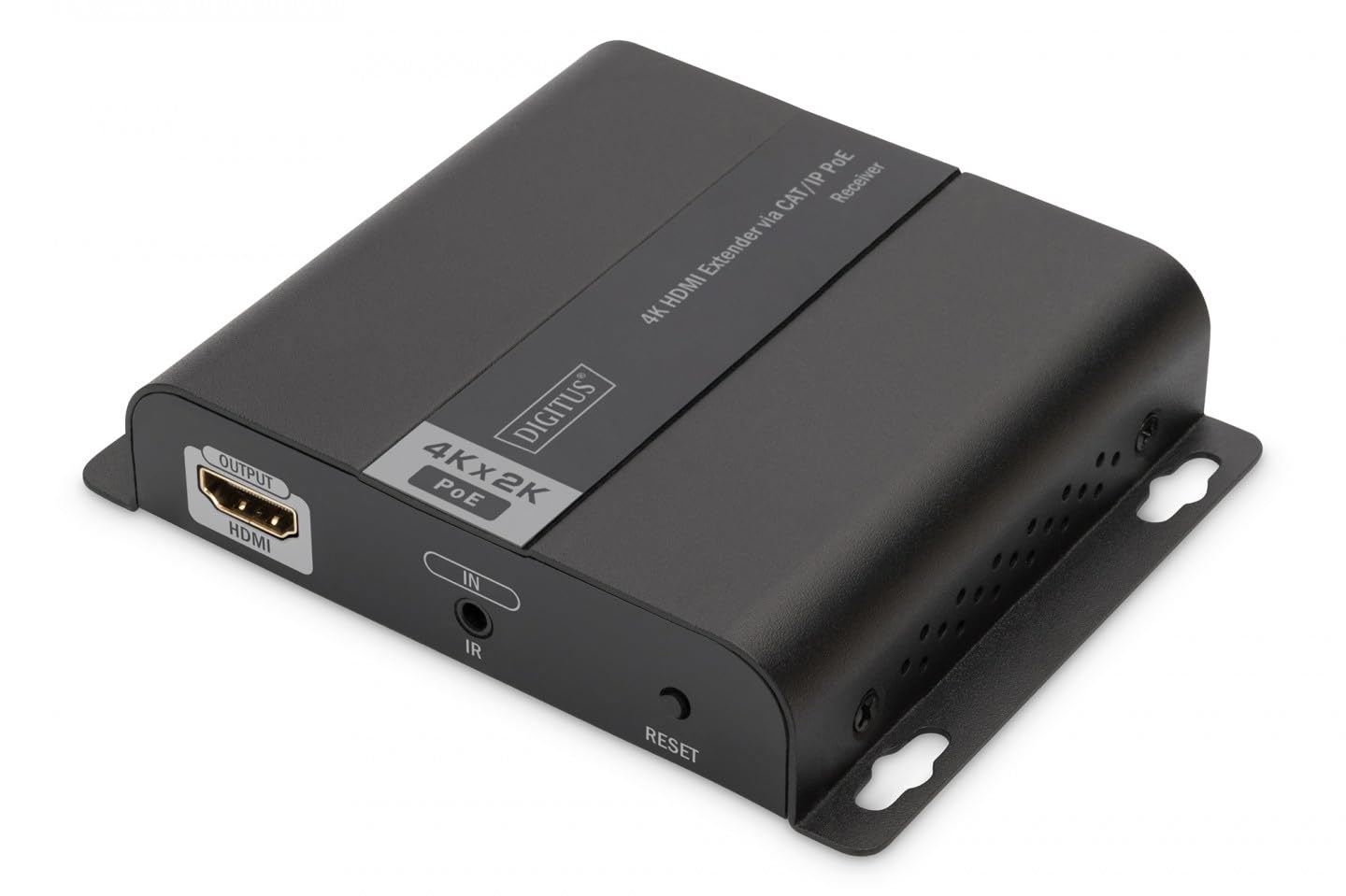

Type: AV receiver
Audio formats supported: LPCM
Material: Metal
Product colour: Black
Maximum transfer distance: 120 m
Cable types supported: Cat5, Cat5e, Cat6
Colour depth: 24 bit
Bandwidth: 10.2 Gbit/s
HDCP version: 1.4
Power
Power over Ethernet (PoE): Yes
Operating voltage: 5 V
Operational conditions
Operating temperature (T-T): 0 - 60 °C
Weight & dimensions
Weight: 280 g
Depth: 119 mm
Height: 24 mm
Width: 94 mm
Packaging data
Package height: 80 mm
Package width: 149 mm
Package weight: 410 g
Package depth: 200 mm
Packaging content
Manual: Yes
IR receiver included: Yes
Ports & interfaces
HDMI version: 1.4
Connectivity technology: Wired
Remote (IR) input: 1
RJ-45 input ports: 1
Number of HDMI outputs: 1
Logistics data
Master (outer) case width: 270 mm
Products per master (outer) case: 20 pc(s)
Master (outer) case gross weight: 8.5 kg
Master (outer) case height: 420 mm
Master (outer) case length: 380 mm
Master (outer) case volume: 43092 cm³
UK Trade Tariff code: 85176200
