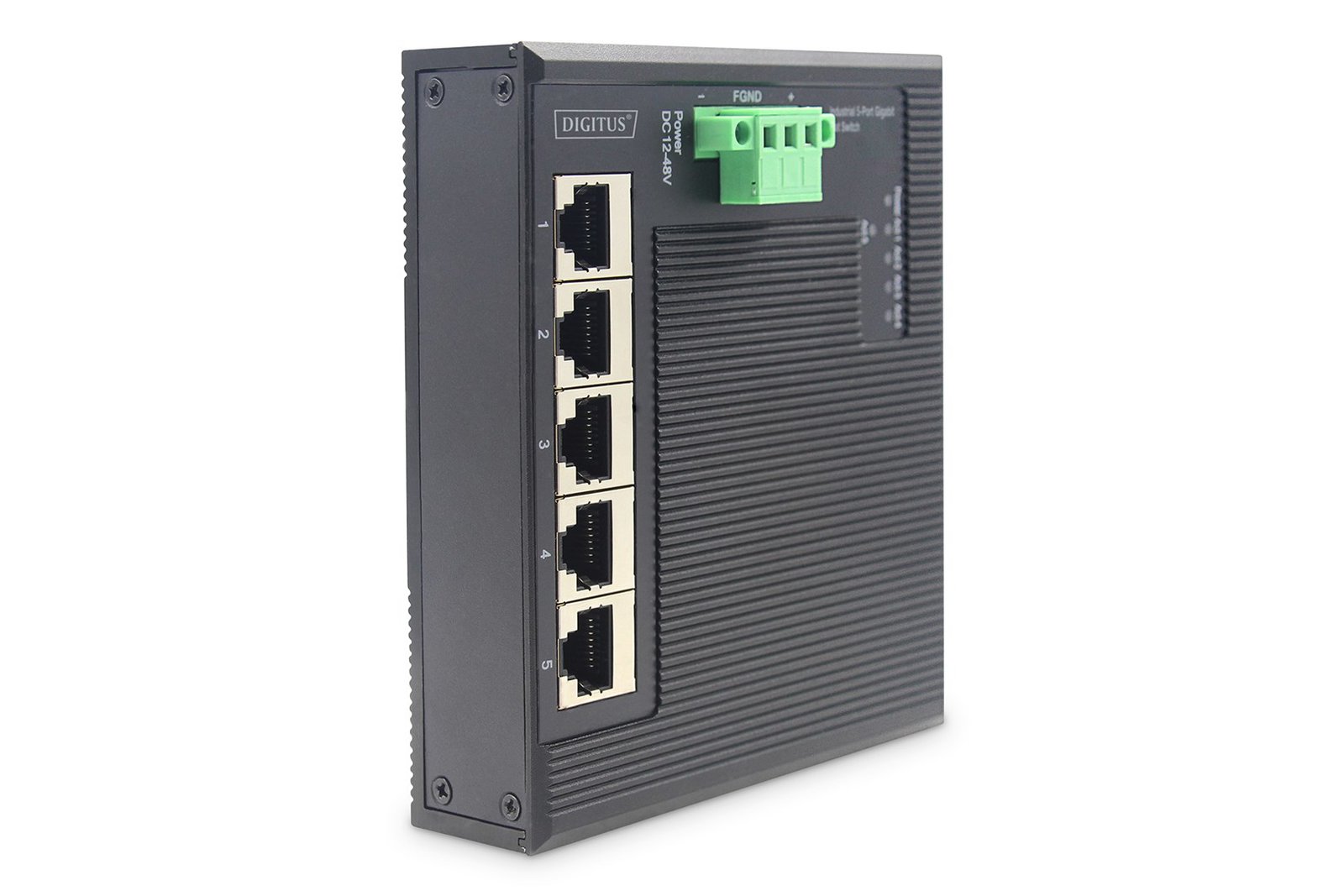

Design Vandal-proof: No LED indicators: Link, Power DIN rail mounting: Yes Rack mounting: Yes Stackable: No Wall mountable: Yes International Protection (IP) code: IP40 Housing material: Metal Suitable for outdoor use: No Product colour: Black
Power Power supply included: Yes DC input voltage: 12 - 48 V Power consumption (max): 5 W
Operational conditions Operating relative humidity (H-H): 5 - 95% Operating temperature (T-T): -40 - 85 °C Storage relative humidity (H-H): 5 - 95% Storage temperature (T-T): -40 - 85 °C
Management features Switch type: Unmanaged
Weight & dimensions Height: 37 mm Depth: 121 mm Width: 90 mm
Network Half duplex: Yes Full duplex: No Link aggregation: Yes VLAN support: No Networking standards: IEEE 802.3ab, IEEE 802.3x, IEEE 802.3u Copper ethernet cabling technology: 1000BASE-TX MAC address auto-aging supported: Yes Auto MDI/MDI-X: Yes Ethernet LAN data rates: 10,100,1000 Mbit/s Active link detection: Yes MAC address auto-learning supported: Yes 10G support: Yes
Packaging data Package weight: 616 g Package volume: 504 cm³ Package width: 120 mm Package depth: 105 mm
