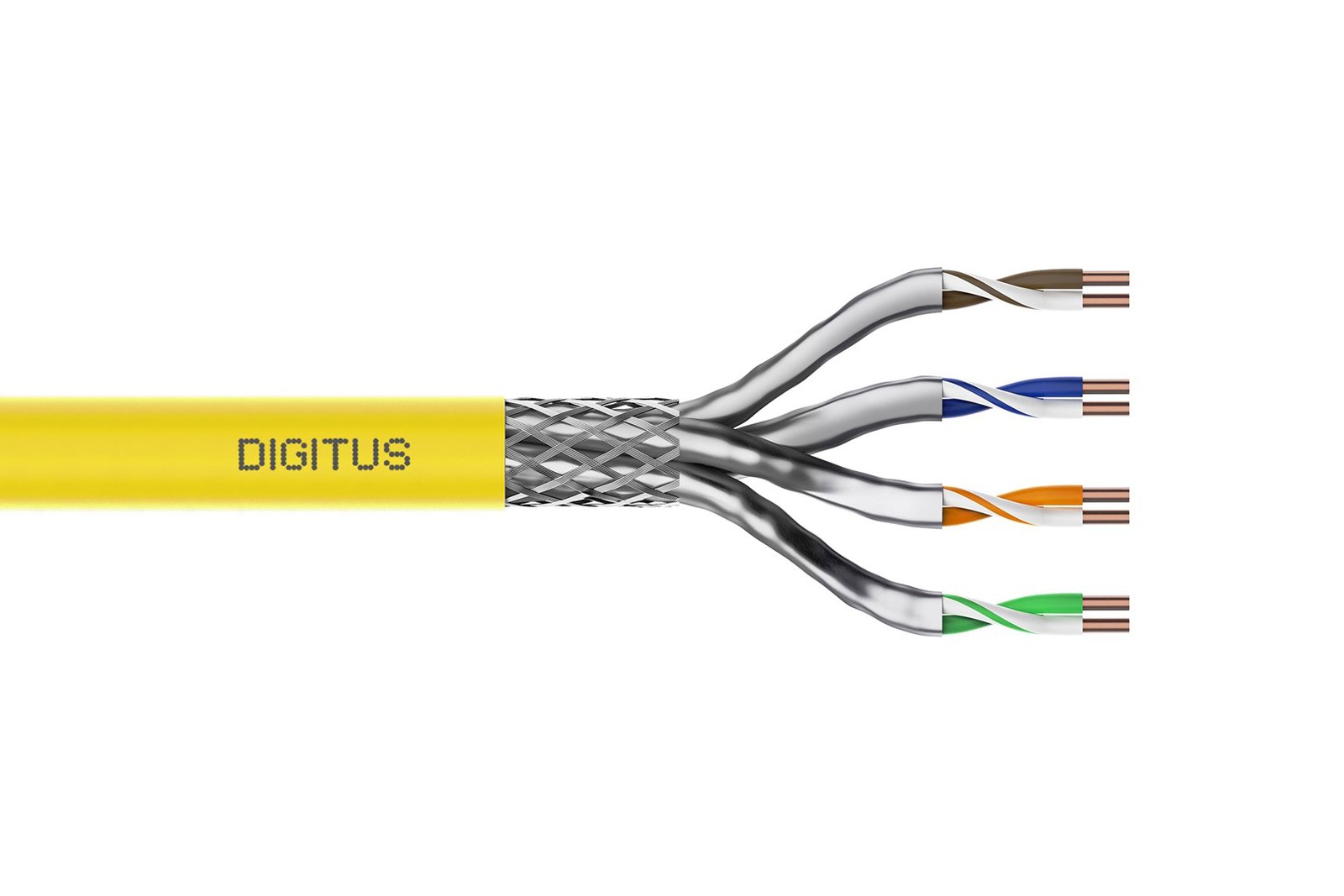

Features Networking standards: IEEE 802.3, IEEE 802.5 Conductor type: Solid Jacket material: Low smoke zero halogen (LSZH) Frequency: 1500 MHz Cable shielding: S/FTP (S-STP) Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE) Cable class: D Product colour: Yellow Cable standard: Cat7a Cable shape: Round Connector 2: No Cabling technology: 10GBase-T Conductor material: Copper AWG wire size: 22/1 Connector 2 gender: No Connector 1 gender: No Connector 1: No Power over Ethernet (PoE): Yes Cable length: 500 m Data transfer rate: 10000 Mbit/s Cable fire class: Cca Bend radius (min): 8 mm
Operational conditions Operating temperature (T-T): -20 - 60 °C Storage temperature (T-T): -20 - 60 °C
Weight & dimensions Outer diameter: 7.8 mm
Packaging data Package height: 350 mm Package width: 550 mm Package volume: 105.875 cm³ Package weight: 35 kg Package depth: 550 mm
