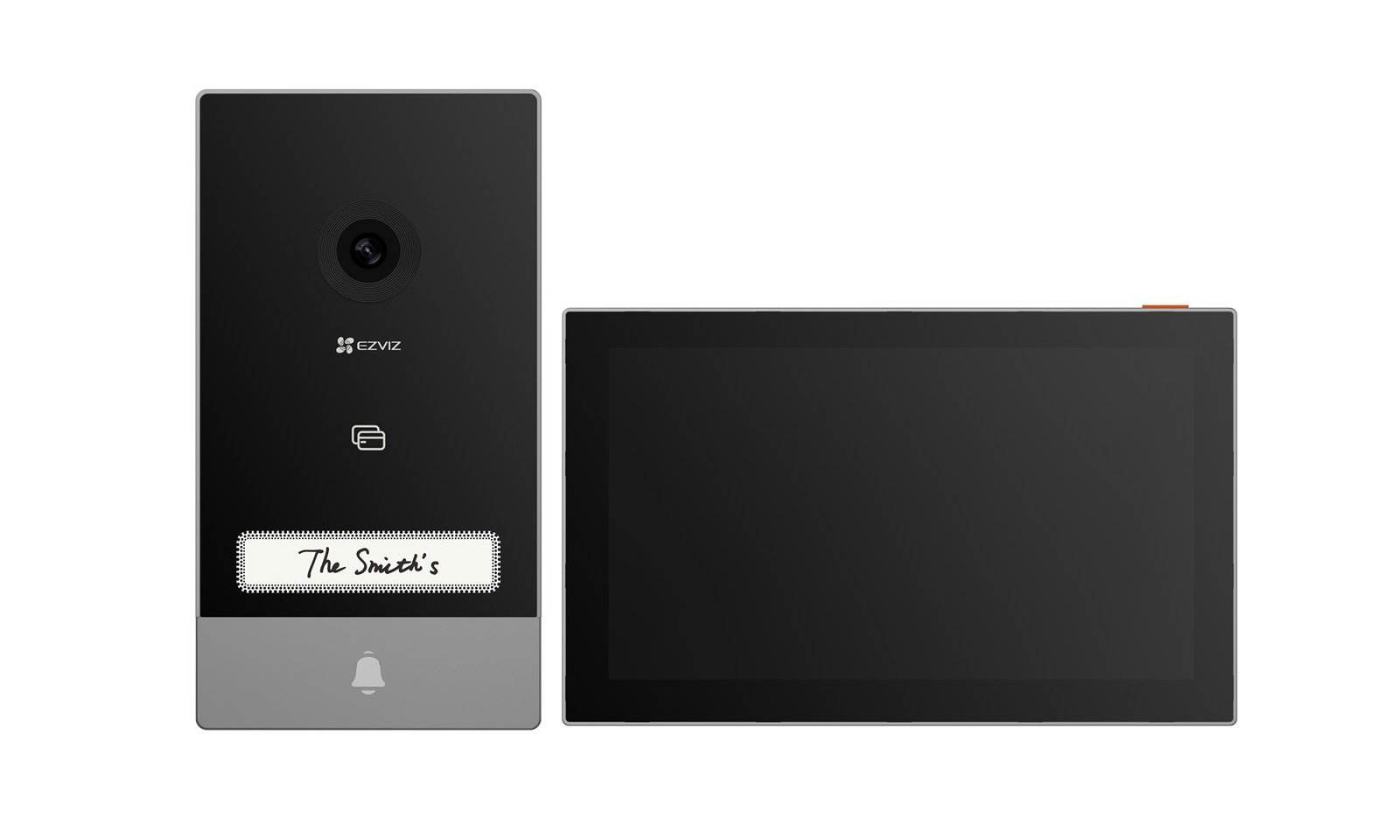

Doorbell EZVIZ HP7

Technical details
Built-in microphone: Yes
Frequency band: 2.4/5 GHz
Connectivity technology: Wired & Wireless
Colour: Yes
Number of displays supported: 1
Speakerphone: Yes
Maximum number of cameras supported: 1
Motion detection function: Yes

Design
Product colour: Black, Silver

Power
Power consumption (typical): 8 W
Operating current (door opener): 1.5 A
Operating voltage (door opener): 24 V
Indoor unit power type: DC

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions
Height: 111.6 mm
Width: 180.3 mm
Depth: 15.2 mm
Door station dimensions (WxDxH): 86.75 x 19.5 x 160.7 mm

Network
Wi-Fi standards: 802.11g, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi: Yes

Packaging data
Mounting kit: Yes
Rain cover: Yes
Indoor unit included: Yes
Outdoor unit included: Yes

Display
Display diagonal: 17.8 cm (7")
Display resolution: 1024 x 600 pixels
Video formats supported: H.265, H.264

Audio
Audio system: 2-way
Number of ringtones: 20
Built-in speaker(s): Yes

Storage
Maximum memory card size: 512 GB
Compatible memory cards: MicroSD (TransFlash)
Memory card slot: Yes

Camera
Maximum frame rate: 15 fps
Motion sensor: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Maximum image resolution: 2048 x 1296 pixels

Night vision
Night vision distance: 6 m
LED type: IR
Night vision: Yes

Safety warning
Warnings: Do not expose to moisture or extreme temperatures as this may damage the unit., Electrical equipment can be a source of electric shock. Do not open the housing without disconnecting the power supply., The product contains electronic parts which may be hazardous if dismantled.
