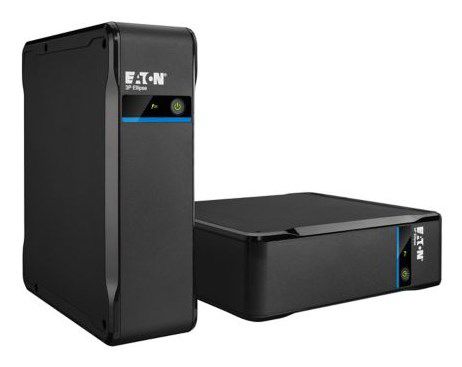

Eaton 3P Ellipse 550 DIN uninterruptible power supply (UPS) Standby (Offline) 0.55 kVA 330 W 4 AC outlet(s)

Features
Number of input phases: 1
Input operation voltage (min): 161 V
Input operation voltage (max): 284 V
Surge protection: Yes
Output power capacity: 0.55 kVA
Efficiency: 97%
Input frequency: 46/70 Hz
Output operation voltage (min): 161 V
Output power factor: 0.6
Noise level: 25 dB
Output operation voltage (max): 284 V
Number of output phases: 1
Output power: 330 W
UPS topology: Standby (Offline)
Auto shut-off: No
Output frequency: 50/60 Hz
Efficiency (ECO mode): 97%
Waveform: Stepwise

Design
Display type: LED
Form factor: Tower
Product colour: Black

Operational conditions
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Width: 81 mm
Depth: 235 mm
Height: 263 mm
Weight: 3 kg

Packaging content
Rack mount kit: No
Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm

Certificates
Compliance certificates: WEEE, RoHS, CE, CB
Waste Electrical and Electronic Equipment (WEEE) compliance: Yes

Ports & interfaces
AC outlets quantity: 4 AC outlet(s)
AC outlet types: C3 coupler

Battery
Battery capacity: 4.5 Ah
Battery voltage: 12 V

Other features
Input connection type: C14
Nominal input voltage: 220-240 V
Relative humidity: 0 - 95%
